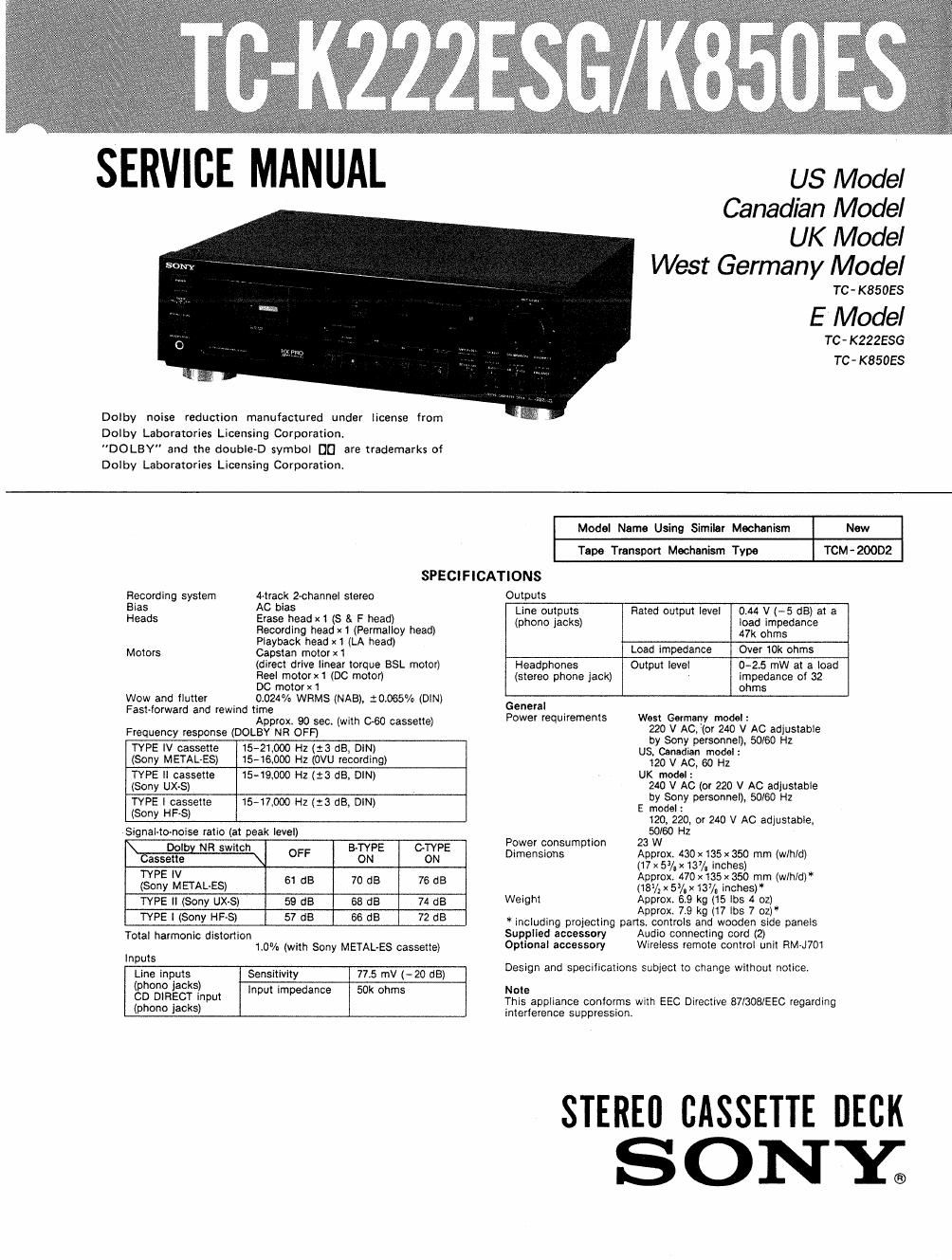

SERVICE MANUAL

US Model

Canadian Model

UK Model

West Germany Model

TC-K85OES
E Model
TC>K222ESG
TC- K850ES
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
"D0 LBY" and the double-D symbol DU are trademarks of
Dolby Laboratories Licensing Corporation.
Model Name Using Similar Mechanism New
Tape Transport Mechanism Tyne TCM-2OOD2
SPECIFICATIONS
Recording system 4-track 2-channel stereo Outputs

Bias AC bias

Heads Erase head x1 (5 & F head)
Recording head x1 (Permailoy head)
Playback head X1 (LA head)

Motors capstan motor x1
(direct drive linear torque BSL motor)

Line outputs
(phono jacks)

Rated output level 0.44 V (-5 dB) at a
load impedance
47k ohms

Wow and llutter

Reel motorxt (DC motor)
DC motorx 1
0.024% WRMS (NAB), 10.0$5% (DIN)

Fasttorward and rewind time

Approx 90 sec. (with 060 cassette)

Frequency response (DOLBY NR OFH

TYPE IV cassette
(Sony METALES)

15-21,000 HZ (13 dB, DIN)
15- 16,000 Hz (OVU recording)

TYPE li cassette

15-19000 HZ (:3 dB, DIN)

(Sony UXS)
TYPE I cassette 15-11000 Hz (:3 dB. DIN)
(Sony HF-S)

Signal-to~noise ratio (at peak level)

Dolby NR switch OFF BvTYPE C-TVPE
Cassette ON ON
(r3125: ET/(MS) 61 as 70 as 76 dB
TYPE Il (Sony UXS) 59 dB 68 dB 74 dB
TYPE l (Sony HF-S) 57 dB 66 dB 72 d8

Total harmonic distortion

10% (with Sony METAL-ES cassette)

Load impedance

Over 10k ohms

Headphones
(stereo phone jack)

Output level

0-2.5 rnW at a load

impedance of 32
ohms

General
Power requirements

Power consumption
Dimensions

Weight

West Germany model:
220 V Actor 240 V AC adjustable
by Sony personnel), 50/60 Hz
S. Canadian model:
120 V AC, 60 H2
UK model:
240 V AC (or 220 V AC adjustable
by Sony personnel), 50/60 Hz
E model:
120. 220, or 240 V AC adjustable,
50/60 Hz
23 W
Approx, 430 x 135 x 350 mm (wlh/d)
(17 x 53/, x 137. inches)
Approx, 470 x 135 x 350 mm (Wlhld)*
(18/2X5/.X 137/. inches)
Approx 69 kg (15 lbs 4 oz)
Approx. 7.9 kg (17 lbs 7 oz)

* including protecting parts. controls and wooden side panels

Supplied accessory
Optional accessory

Audio connecting cord (2)
Wireless remote control unit Flt/H701

Inputs
Line inputs Sensitivity 775 NW (-20 dB)
(phone jacks) Input impedance 50k ohms

CD DIRECT input
(phone jacks)

Design and specifications subject to change without notice.

Note
This appliance conforms wnh EEC Directive 87/308IEEC regarding
interference suppression.

STEREll CASSETTE DECK
ONE

Page 2

TC- K222ESG/K850ES i

TABLE OF CONTENTS

Section Title Page
SPECIFICATIONS ----------- 1
MODEL IDENTIFICATION 3
SAFETY CHECK-OUT ~~~~~~ 3
1. GENERAL ......................................... 4
2. DISASSEMBLY-- 5
3. ADJUSTMENTS
3-1. Mechanical Adjustments ~ 7
3-2. Electrical Adjustments'w ~~~~~~~~~~~ 10
4. DIAGRAMS
4- 1. Block Diagram ............................. 15
4-2. Semiconductor Lead Layouts ~~~~~~~~~~~~~~ 17
4-3. Circuit Boards Location ~ ~~~~~~~~~~ 18
4-4. IC Block Diagrams~~~ . 18
4-5. Printed Wiring Boards
_ Main Section - .......................... 20
4-6. Schematic Diagram
~Main Section- .......................... 25
4-7. Schematic Diagram
-Panel section~ .......................... 30
4-8. Printed Wiring Boards
_ Panel Section _ .......................... 33
5. EXPLODED VIEWS
5.1. Overall Section ............................. 35
5-2. Panel Section .............................. 36
5-3. Mechanism Section (1) ~~~~~~~~~~~~~~~~ 37
5-4. Mechanism Section (2) ~~~~~~~~~~~~~~~~~ 38
6. ELECTRICAL PARTS LIST ....................... 22

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A DR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND W THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LlSHED BY SONY.

Flexible Circuit Board Repairing

- Keep the temperature of the soldering iron around
270C during repairing.

Do not touch the soldering iron on the same conductor
of the circuit board (within 3 times).

- Be careful not to apply force on the conductor when
soldering or unsoldering.

Notes on chip component replacement

0 Never reuse a disconnected chip component.

0 Notice that the minus side of a tantalum capacitor may
be damaged by heat.

Dolby noise reduction and HX Pro headroom extension
manufactured under license from Dolby Laboratories
Licensing Corporation. HX Pro originated by Bang &
Olufsen.

Operating voltage -

Before connecting the unit to the power source, check
that the operating voltage of your unit is the same as the
local power supply.

If your model has a voltage selector on the rear panel
and it must be reset, disconnect the AC power cord
and set the selector to the appropriate voltage.

65 VOLTAGE selector
