Sony tc k 777 service manual

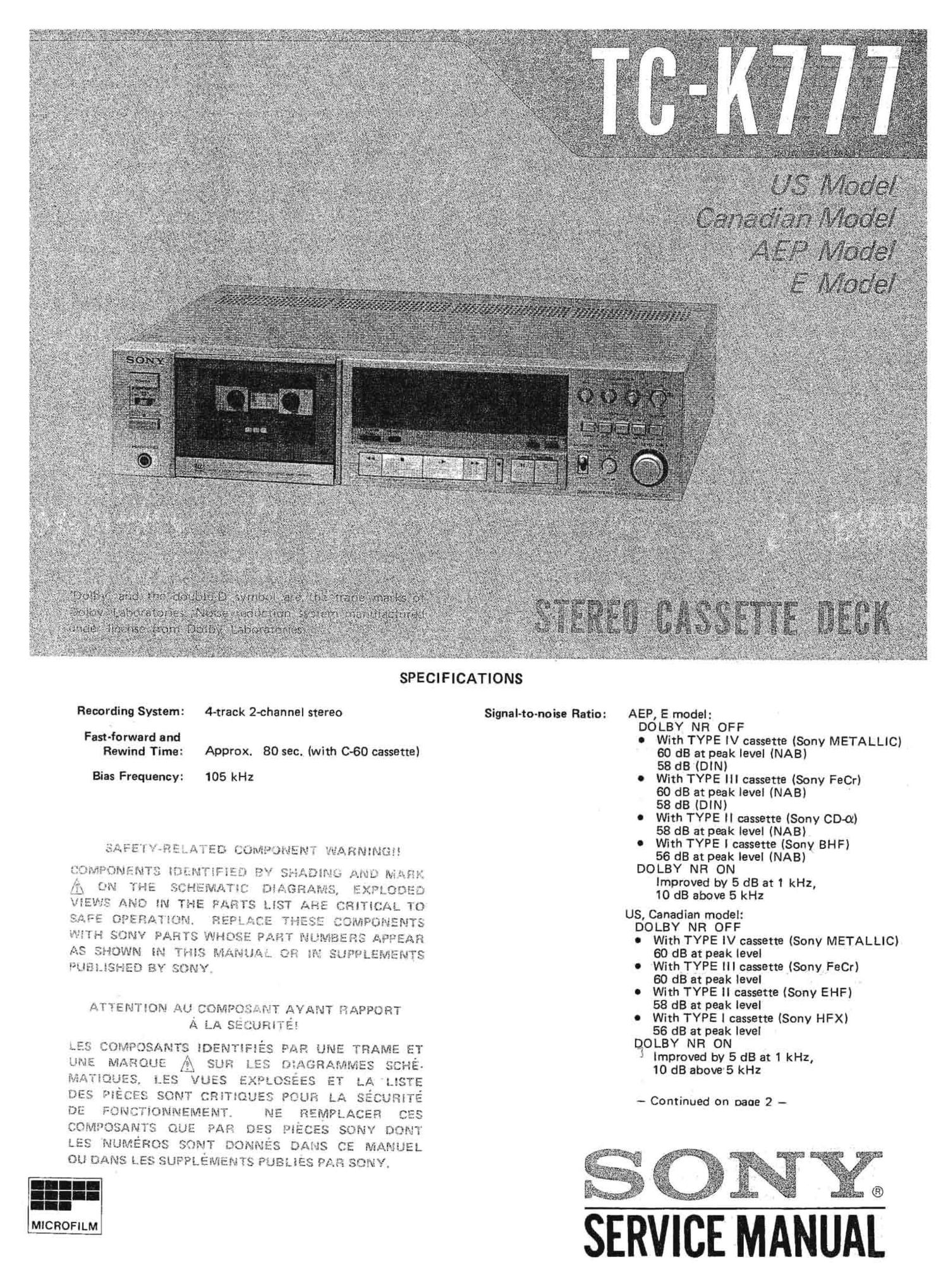

Page 1

SPECIFICATIONS

Recording System: 4-track 2-channel stereo

Fast-f0 rwerd end

Rewind Time: Approx. 80 sec. (with C60 cassette)

Bias Frequency: 105 kHz

SAFE'I' .--P.E LATED (JUMPOIJENT JEARNINGII

COMPONENTS (SEI'IITIFIEL) 9V sax-emit, mm: MARI-1
x}: ON THE SCHEMATIC DIAGRAMS, IE moms?)
VIEWS AND IN THE PARTS LIST AHE CRITICAL T0
SAFE OIERATIQN. REPLACE Ti~iESE CSMPONENTS
WlTi-i sowv PAP-{TS WHOSE PART IdUMBERS APPEAR
A. SHOWN IN THIS MANUAL GR 3. SUPPLEMENTS
PUBLISHED BY SONY.

ATTENTION AU COMPOSMJT AYANT RAPPORT
A LA SECURITEE

LES COMPQSANTS lDENTlFIES me UNE TRAME ET
LINE MARQUE [3,}; SUI: LES omGRAMMES seafa-
MATIQUES, LES vues EXPLDSEES ET LA 'I-!STE
DES PIECES sow cmnauss POUR LA sécvmré
DE FDNCTIONNEMENT. m5 REMPLACER ces
COMPOSANTS QUE PAR was PIECES scrw 00m
(.258 NUMEROS 30m DONNES DAMS CE MANUEL
cu DANS LES suenémems PUBLIES PAR sem'.

E:

MICROFILM

Signal-to-noise Ratio:

AEP, E model:

DOLBY NFI OFF

0 With TYPE IV cassette (Sony METALLIC)
60 dB at peak level (NAB)
58 dB (DIN)

0 With TYPE III cassette (Sony FeCr)
60 dB at peak level (NAB)
58 dB (DIN)

0 With TYPE ll cassette (Sony CM)
58 dB at peak level (NAB)

0 With TYPE [cassette (Sony BHF)
56 dB at peak level (NAB)

DO LBY NR ON
Improved by 5 dB at 1 kHz,
10 dB above 5 kHz

US, Canadian model:

DOLBY NR OFF

0 With TYPE lV cassette (Sony METALLIC)
60 dB at peak level

0 With TYPE III cassette (Sony FeCr)
60 dB at peak level

0 With TYPE II cassette (Sony EHF)
58 dB at peak level

0 With TYPE I cassette (Sony HFX)
56 dB at peak level

OLBY NR ON

Improved by 5 dB at 1 kHz,
10 dB above'5 kHz

- Continued on oaae 2 -

SERVICE MANUAL
