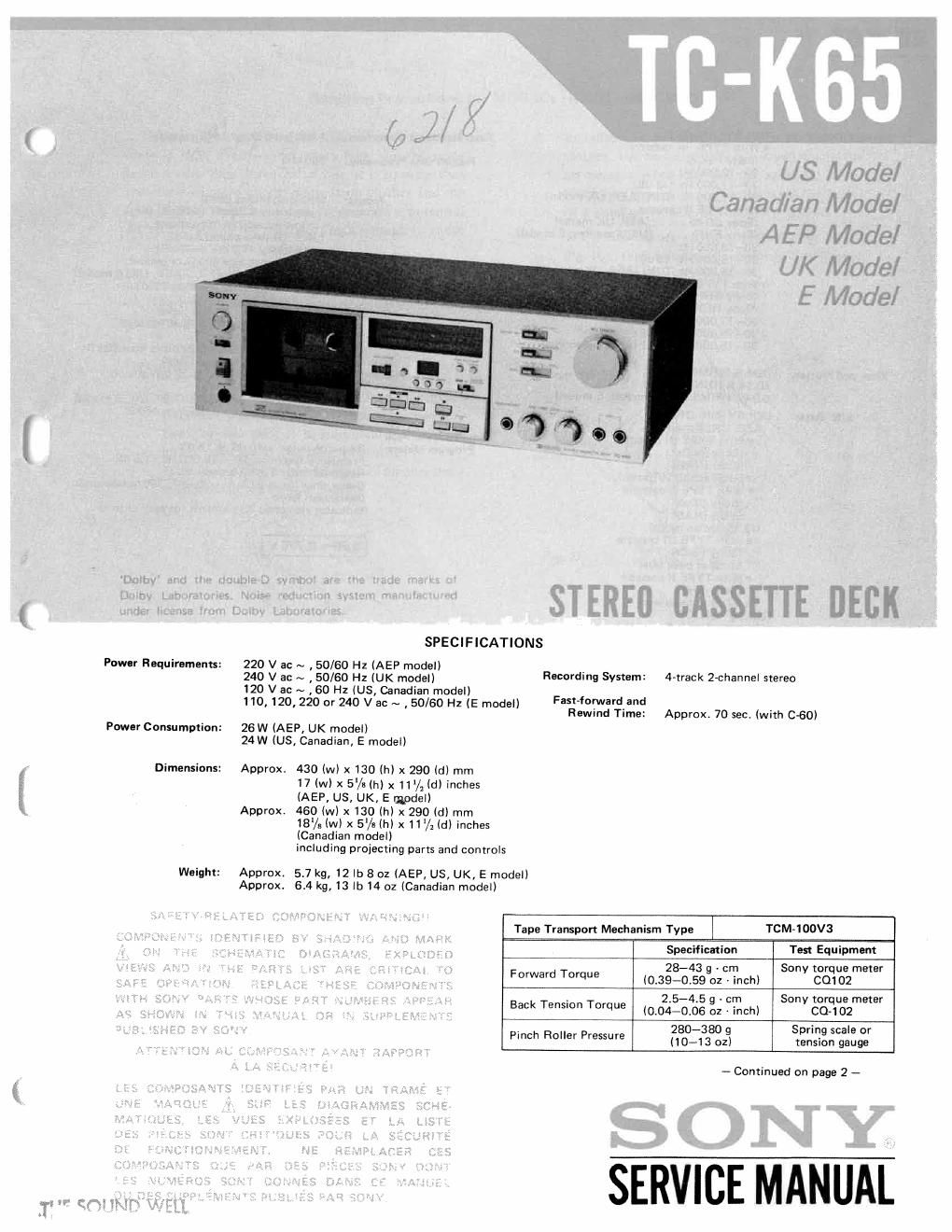

SPECIFICATIONS
Power Requirements: 220 V ac ~ , 50/60 Hz (AEP model)

240 V ac ,. . 50/60 Hz lUK model) Recording System: 4-track Zachannel stereo
120 V ac ~ , 60 Hz (US, Canadian model)
110, 120, 220 or 240 V ac ~ , 50/60 Hz (E model) FaSMOVWa'd and

Rewind Time: Approx. 70 see. (with 0-60)

Power Consumption: 26W (AEP, UK model)
24W (US, Canadian, E model)

Dimensions: Approx. 430 (w) x 130 (h) x 290 (d) mm

if 17 (w) x 5/n(h)x11/2(d) inches
a (AEP, us. UK, E model)
% Approx. 460 (w) x 130 In) x 290 (a) mm
18/5(w) x 5/a(h) x 11/, (d) inches
(Canadian model)
including projecting parts and controls
Weight: Approx. 5.7 kg, 12 lb 8 oz (AEP, US, UK, E model)
Approx. 6.4 kg, 13 lb 14 oz (Canadian modell
g Tape Transport Mechanism Type I TCM-100V3
Specification Test Equipment
28-43 g . cm Sony torque meter
Mar Tm (0.39-0.59 oz - inch) 00102
. 2.5-4.5 g - cm Sonv torque meter
3" mm" Tom (0.04-0.06 02 . inch) 00-102
. 280-880 9 Spring scale or
Pinch Roller Pressure (10_13 oz) tension gauge
v Continued on page 2 -
g

SERVICE MANUAL

we 7
