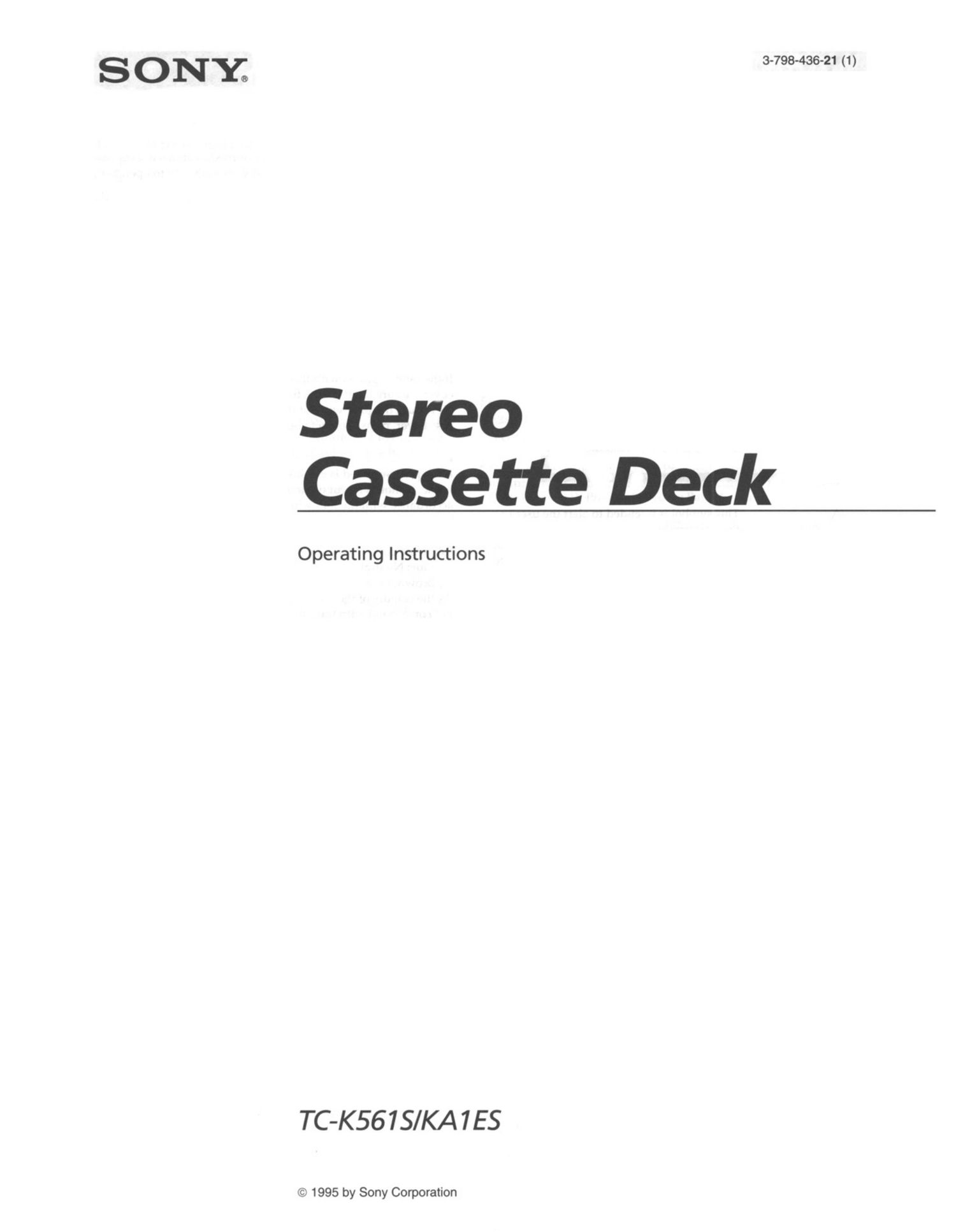

Page 1

SONYQ

798 436-21 (1)

Stereo
Cassette Deck

Operating Instructions

TC-K561S/KA 1E5

Page 2

WARNING

To avoid electrical shock, do not open the cabinet. Refer servicing to
qualified personnel only.

FOR THE CUSTOMERS IN THE UNITED STATES

To prevent fire or shock hazard, do not
expose the unit to rain or moisture.

RISK OF ELECTRIC SHOCK '
DO NOT OPEN .

CAUTION. TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol is intended to alert the user to
the presence of uninsulated "dangerous
voltage" within the product's enclosure that
may be of sufficient magnitude to constitute
a risk of electric shock to persons.

This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

Owner's Record

The model and serial numbers are located on the rear of the unit.
Record the serial number in the space provided below.

Refer to them whenever you call upon your Sony dealer regarding
this product.

Model No. TC-KAlES Serial No.

INFORMATION

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for
help.

CAUTION

You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.

NOTICE FOR THE CUSTOMERS IN THE UNITED
KINGDOM

A moulded plug complying with 88 1363 is fitted to this equipment
for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a 5 AMP
fuse approved by ASTA or 851 to BS 1362, (i.e. marked with © or @
mark) must be used.

If the plug supplied with this equipment has a detachable fuse
cover, be sure to attach the fuse cover after you change the fuse.
Never use the plug without the fuse cover. If you should lose the
fuse cover, please contact your nearest Sony service station.

IMPORTANT

If the plug supplied is not suitable for the socket outlets in your
home, it should be cut off and an appropriate plug fitted in
accordance with the following instructions.

The wires in this mains lead are coloured in accordance with the
following code:

Blue: Neutral

Brown: Live
As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the terminals
in your plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.
Do not connect either wire to the earth terminal in the plug which is
marked by the letter E or by the safety earth symbol 4;? or coloured
green or green-and-yellow.

WARNING

To prevent shock hazard, do not insert the plug cut off from the
mains lead into a socket outlet. This plug cannot be used and should
be destroyed.
