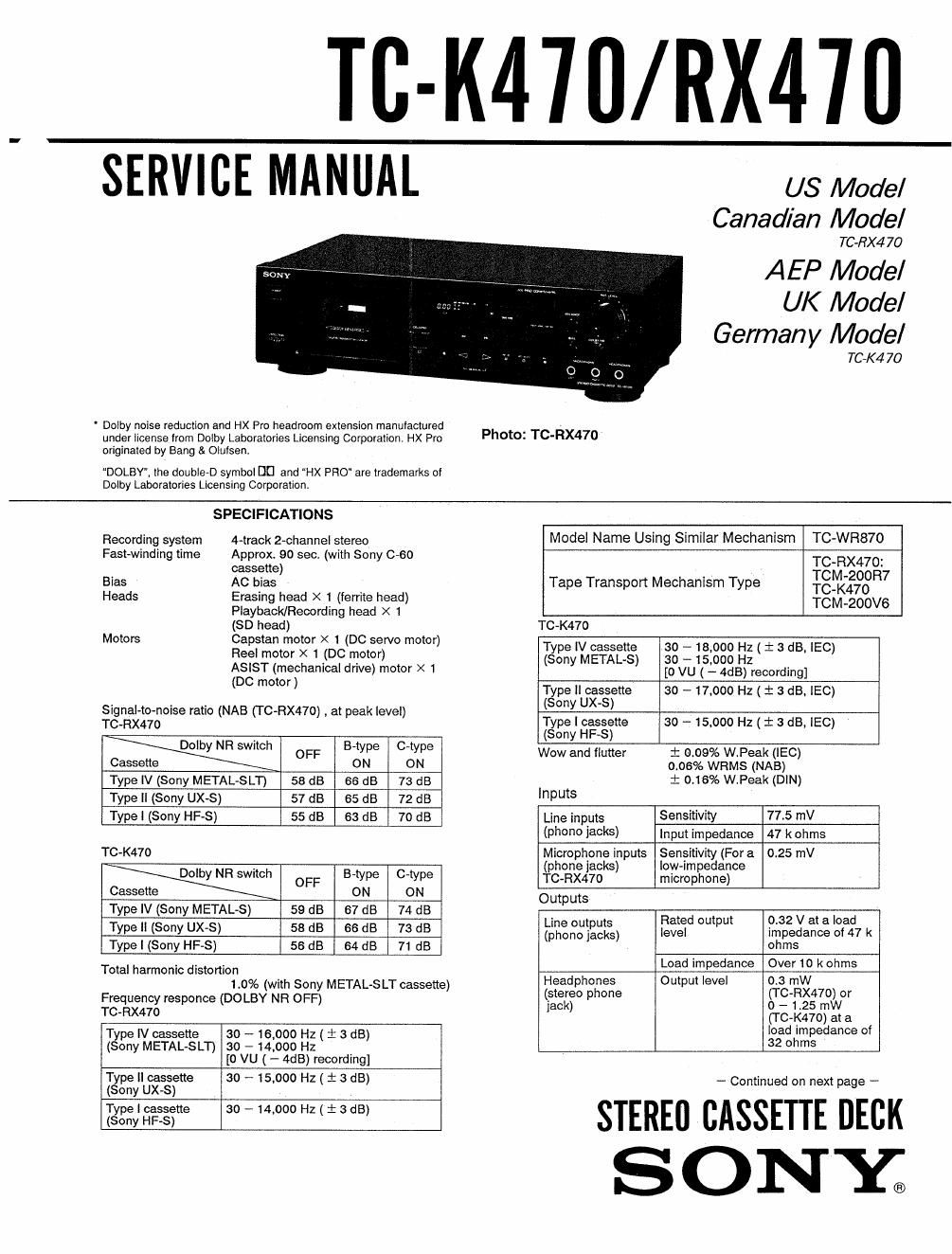

TC-K470/RX470

General
Power requirements
US, Canadian models:
120 V AC, 60 Hz
AEP. Germany models:
220 - 230 V AC, (or 240 V AC
adjustable by Sony personnel),
50/60 Hz
UK model:
240 V AC (or 220 V AC
adjustable by Sony personnel),
50/60 Hz
Power consumption 17 W
Dimensions Approx. 430 x 123 X 300 mm
(w/h/d)
(17 x 47/. x 117/. inches)
including projecting parts and
controls
TC-RX470: Approx. 4.6 kg
(10 lbs. 3 oz.)
TC-K470: Approx. 4.5 kg
(10 lbs. 3 oz.)

Weight

Supplled accessory
Audio connecting cords (2)

Design and specifications subject to change without notice.

MODEL IDENTIFICATION
- Specification Labels -

TC-K470
TC-RX470

MODEL NO.

STEREO CASSETTE DECK

SERIAL Nol
MADE IN JAPAN

US, Canadian models: AC 120 V 60 Hz 17 W
Germany. AEP models: AC 220 ~ 230 V ~50/60 Hz
UK model: AC 240 V ~50/60 Hz

SAFETY-RELATED COMPONENT WARNINGII
COMPONENTS IDENTIFIED BV MARK A OR DOTTED

LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS .

AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONV.

TABLE OF CONTENTS

Section Zitl_e Page
Specificatiorls .................................. 1
Safety Check-out ............................... 2
1. GENERAL

Identification of Front Panel Parts ----------- 3
2. DISASSEMBLY ......................... 4

3. ADJUSTMENTS

3-1,
3-2.

Mechanical Adjustment ------------
Electoricai Adjustments

4. DIAGRAMS

4-1. Printed Wiring Board

4-2. Schematic Diagram ...............

5. EXPLODED VIEWS .................... 17
6. ELECTRICAL PARTS LIST ............ 21

ATTENTION AU_COMPOSANT AVANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A
sun LES DIAGRAMMES scnéMAriouss ET LA LISTE
DES PIECES som camouEs Poun LA sécumré
DE FONCTIONNEMENT. NE REMPLACER ces coM-
POSANTS QUE PAR DES PIECES souv DONT LES
NUMEROS SONT ooNNés DANs CE MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR sonv.
