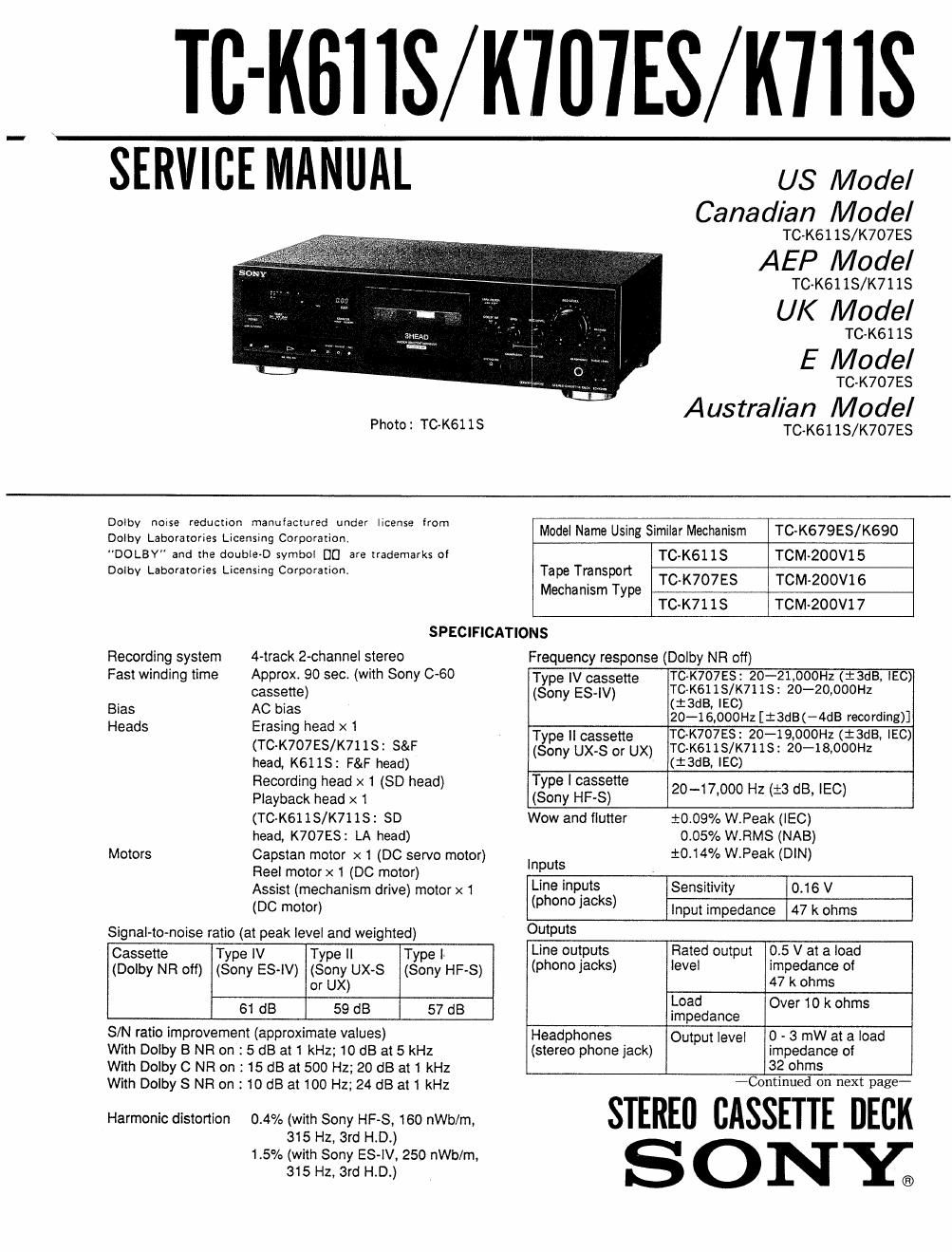

General
Power requirements US, Canadian model: 120V AC, 60Hz
AEP, German model: 220-230V AC,
50/60Hz
UK, Australian model: 240V AC, 50Hz
E model: 120V, 220V, and 240V AC
adjustable, 50/60Hz
Power consumption 21 W
Dimensions Approx. 430 x 123 x 306 mm (w/h/d)
(17 x 415 >< 12ls inches)
including projecting pans and controls
Mass TC»K707E$/K711$:
Approx. 5.0kg (11 lbs 1 oz)
TOK61 1 S :
Approx. 4.8kg (10 lbs 10 oz)

Supplied accessories
Audio connecting cords (2)

Design and specifications are subject to change without
notice.

MODEL IDENTIFICATION
~Specification Label-
TC-K6118

TGK707ES
TC-K7113

SONY: MODEL mm

STEREO CASSETTE DECK

WWW

US, Canadian model : AC 120V 60Hz 21W

AEP, German model : AC 220-230V~50/60Hz 21W
UK, Australian model: AC 240V~50/60Hz

E model : AC 120. 220, 240V~50I60Hz 21W

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A 0R DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BV SONY.

SAFETY CHECK-OUT

After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:

Check the antenna terminals, metal trim, metallized
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to
earth ground and from all eXposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5 mA (500 microampers). Leakage
current can be measured by any one of three
methods.

1. A commercial leakage tester, such as the
Simpson 229 or RCA WT540A. Follow the
manufacturers instructions to use these instru-
ments.

2. A battery-operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job.

3. Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt-
meter. The limit indication is 0.75V. so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are
suitable. (See Fig. A)

To Exposed Metal
Parts on Set

AC
0.15uF $1.514) voltmeter
{0.75 V)

'5? Earth Ground

Fig, A. Using an AC voltmeter to check AC leakage.

ATTENTION AUCOMPOSANT AYANT RAPPORT
A LA SECURITEI

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A
sua LES DIAGRAMMES SCHEMATIQUES er LA LISTE
oss PIECES som camoues POUR LA sécumré
DE FONCTIONNEMENT. NE REMPLACER css com.
POSANTS QUE PAR DES PIECES sow oom- LES
NUMénos sonr nouués DANS cs MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR sonv.
