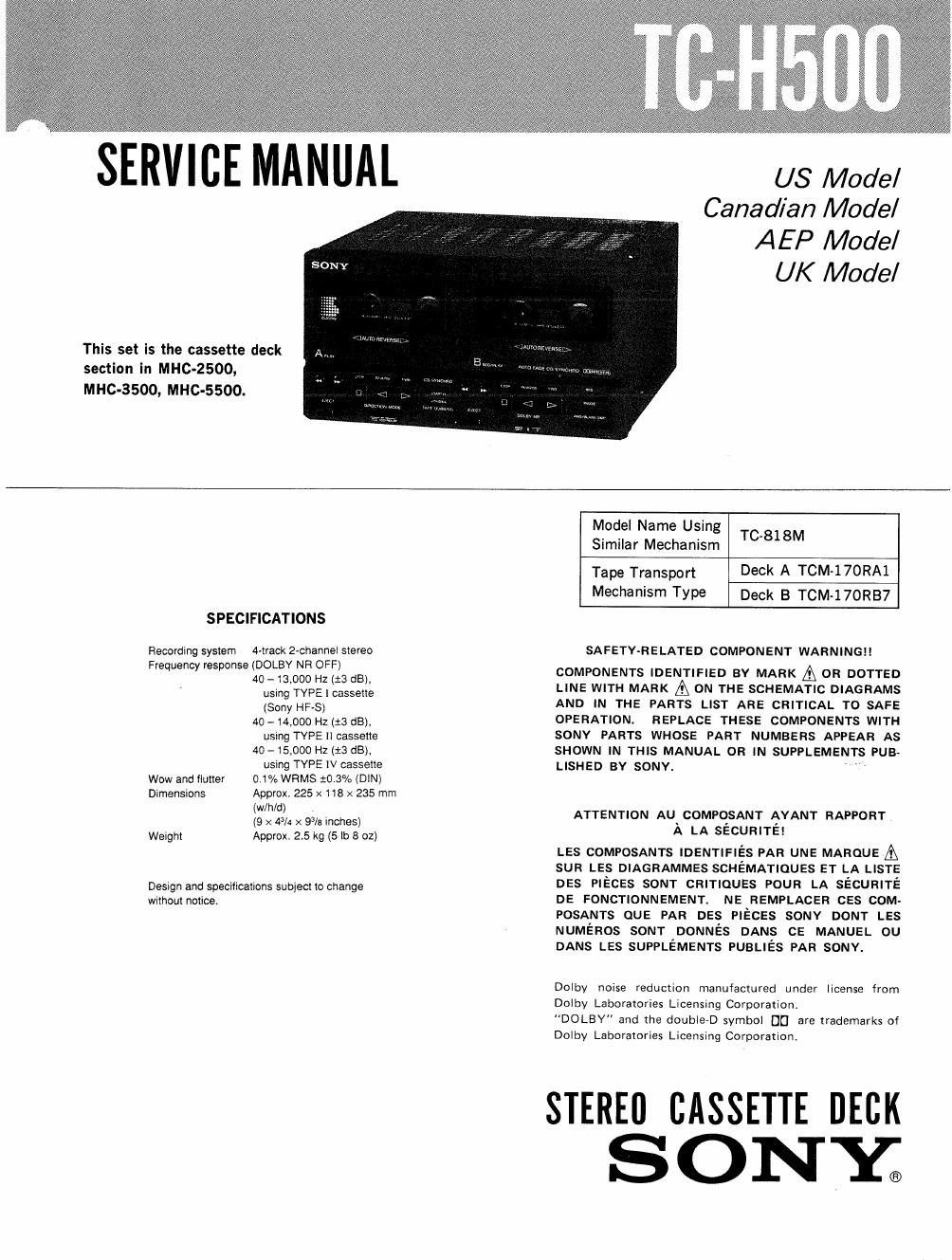

Page 1

SERVICE MANUAL

This set is the cassette deck
section in MHc-ZSOO,

MHC-3500, MHC-5500.

US Model
Canadian Model
AEP Model
UK Model

SPECIFICATIONS

Recording system

4-lrack 2-channei stereo

Frequency response (DOLBY NR OFF)

Wow and flutter
Dimensions

Weight

40 -13,000 Hz (:3 dB),
using TYPE 1 cassette
(Sony HFS)

40 -14,000 Hz (:3 dB).
using TYPE ll cassetie

40 - 15.000 Hz (:3 dB).
using TYPE IV cassette

0.1% WRMS 30.3% (DIN)

Approx. 225 x 118 x 235 mm

[w/h/d)

(9 x 43/4 >< 93/3 inches)

Approx. 25 kg (5 lb 8 oz)

Design and specifications subject to change

without notice.

Model Name Using

Similar Mechanism TC-818M

Tape Transport Deck A TCM-170RA1
Mechanism Type Deck B TCM-170RB7

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BV MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATIONL REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

ATTENTION AU COMPQSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A
sun LES DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES PIECES som camouEs POUR LA sécunn-E
DE FONCTIONNEMENT. NE REMPLACER 055 com-
POSANTS OUE PAR DES PIECES sonv DONT LEs
NUMEROS sour ooNNEs DANS CE MANUEL ou
DANS LES SUPPLEMENTS PUBLiEs PAR sonv.

Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
DOLBV and the double-D symbol DCI are trademarks of
Dolby Laboratories Licensing Corporation.

STEREO CASSETTE DECK
SONY;
