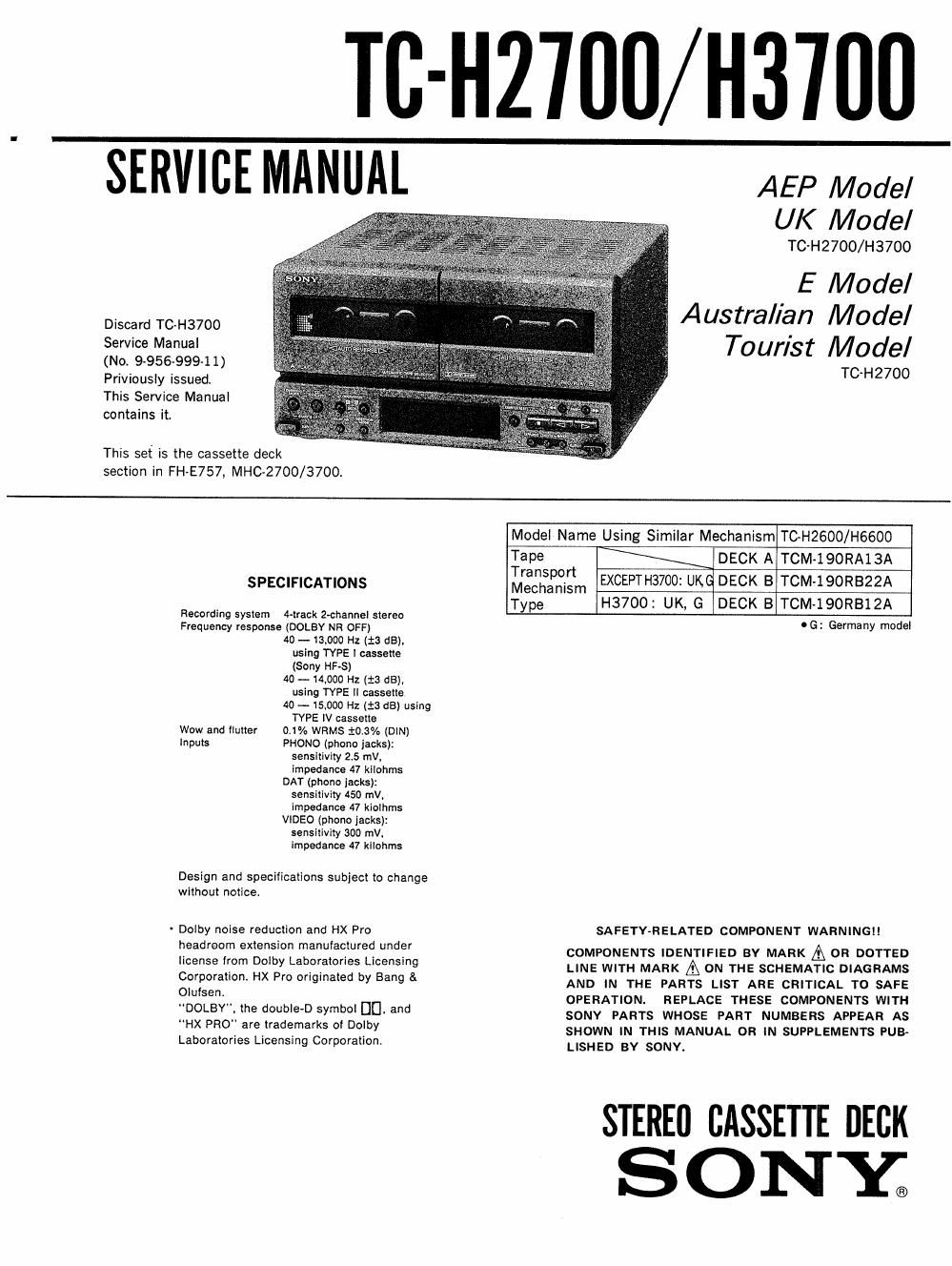

Sony tc h 3700
This is the 39 pages manual for sony tc h 3700.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony tc h 3700 (Ocr-read)
Page 2
TC-H2700/H3700
CAUTION WHEN REPAIRING
Normally the power of this set is supplied from the
TA-HZ700/ H3700 amplifier connected. When only this set is
repaired, connect the power of 18V AC as shown in the figure
below.
ACI8V
CNJ4OI
[Pin Jack Board] - Conductor Side --
MODEL IDENTIFICATION
- BACK PANEL -
ax
69
[E
SYSTEM CONTROLZ
,-,____,-_fi
PHONO DAT VIDEO
IN OUT IN OUT IN
@©@@@L
@@@@©R
Tm
3-374-47121 (AE) : H3700: AEP model
337447131 (AE4): H3700: Germany model
3-374-471-41 (A5) 1 H2700: AEP, UK, E, Australian, Tourist model
3-374471-51 (AE4): H2700: Germany model
3375-041-51 (UK) : H3700: UK model
