Page 1

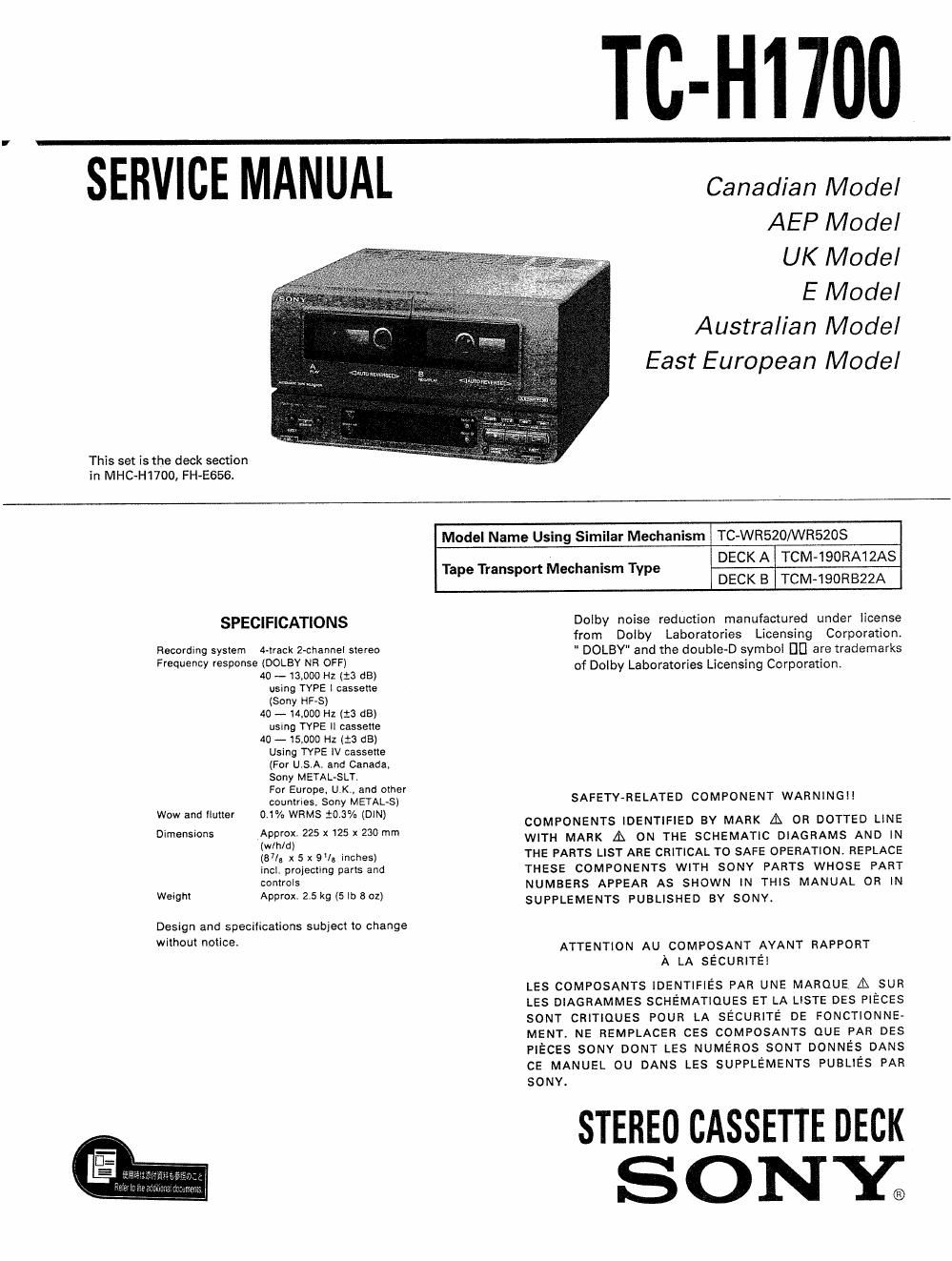

TC-H1700

SEIIICE MAIIIUAL

This set is the deck section
in MHC-H1700, FH-E656.

Canadian Model

AEP Model

UK Model

E Model

Australian Model
East European Model

SPECIFICATIONS

Recording system 4-week 2-channel stereo
Frequency response (DOLBY NH OFF)
40 -13.000 Hz (:3 d8)
using TYPE I cassette
(Sony HF-S)
4O -- .000 Hz (:3 dB)
using TYPE ll cassette
40 -15,000 Hz (:3 dB)
Using TYPE IV cassette
[For U.S.A. and Canada.
Sony METAL-SL7.
For Europe, UK, and olher
countries. Sony METALS)
Wow and flutter 0.1% WRMS t0.3% (DIN)
Dimensions Approx. 225 x 125 x 230 mm
(w/h/d)
(an. x 5 x 9V. Inches)
incl. projecting parks and
controls
Weight Approx, 2 5 kg (5 ID 8 02)

Design and specifications subject to change
without notice.

Model Name Using Similar Mechanism TC-WR520/WR5208

Tape Transport Mechanism Type

DECK A TCM-190RA12AS
DECK B TCM-IQORBZ2A

Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
DOLBY" and the double-D symbol [ID are trademarks
of Dolby Laboratories Licensing Corporation.

SAFETV

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION Au COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A SUR
LES DIAGRAMMES SCHEMATlouEs ET LA LISTE DES PIECES
SONT CRITIQUES POUR LA SECURITE DE FONCTIONNE»
MENT. NE REMFLACER ces COMPOSANTS QUE PAR DES
PIECES SONY DONT LES NUMERos SONT DONNES DANS
CE MANUEL ou DANS LES SUPPLEMENTS PUBLIES PAR

' STEREO CASSETTE DECK
S ONY;
