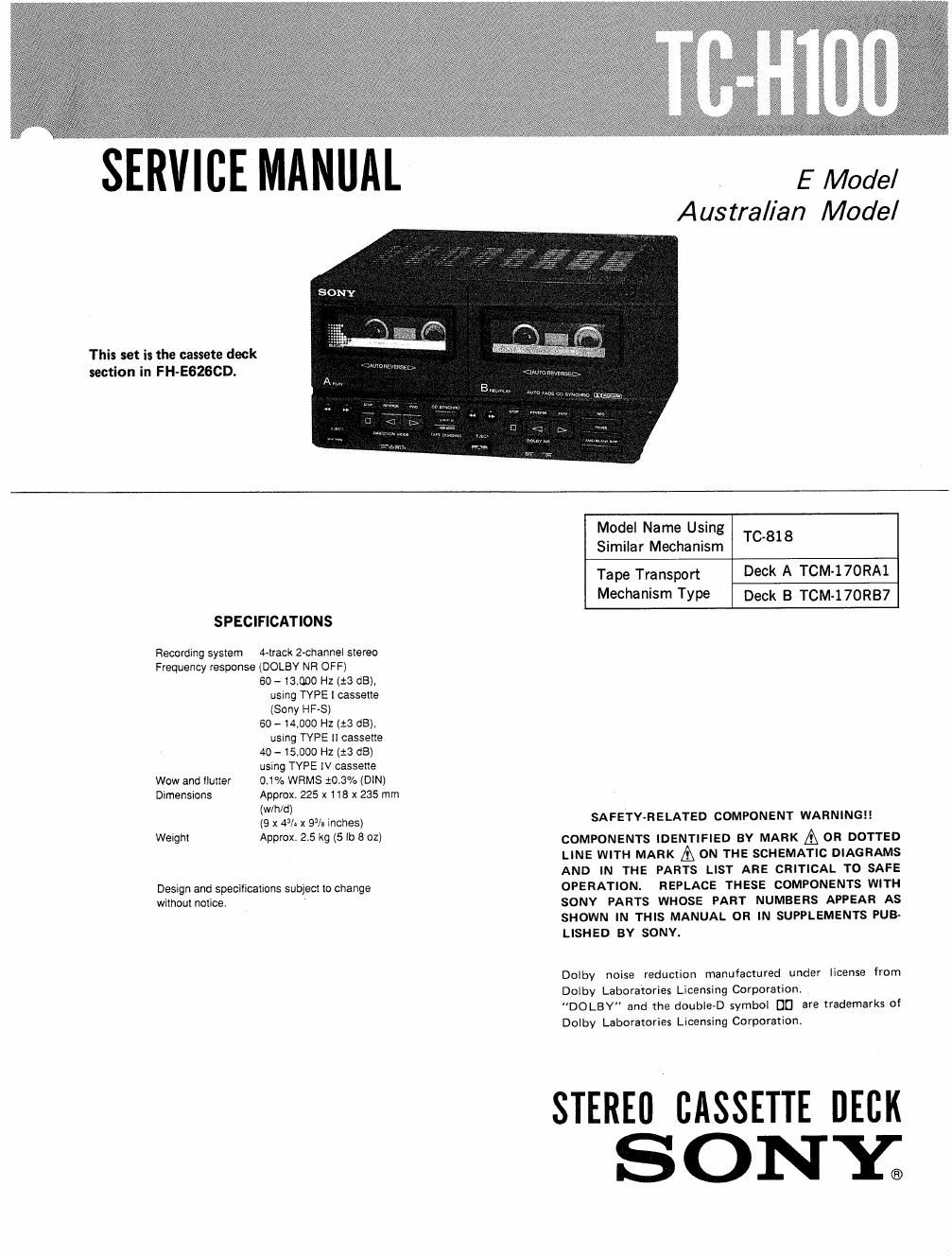

Sony tc h 100 service manual
This is the 19 pages manual for sony tc h 100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony tc h 100 service manual (Ocr-read)
Page 2
TC-H 100
REPAIRING PRECAUTION
[To apply B+ voltage]
Thepower of this unit is fed from amlifier.
Because of this, connect the DC Power supply as illustrated
below when this unit alone operates.
DC Power supply
mm
+ 20V - 20V
short
[AUDIO BOARD} conductor side
r- -»-r
chpéfix
cuvsol
SECTION 1
GENERAL
El Tape operation buttons for deck A
41/»: Fast windlng
El: Stop
IE Cassette holders
IE Tape operation buttons for deck B
[E REC (recording) button
[E PAUSE button
EJECT buttons
DIRECTION MODE selector
TAPE DUBBING HIGH SPEED button
CD SYNCHRO (OD synchronized
recording) button
DOLBV NR selector
El AMS (Automatic Musc Sensor)/BLANK
SKIP button
