Sony tc ex 90 service manual
This is the 27 pages manual for sony tc ex 90 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony tc ex 90 service manual (Ocr-read)

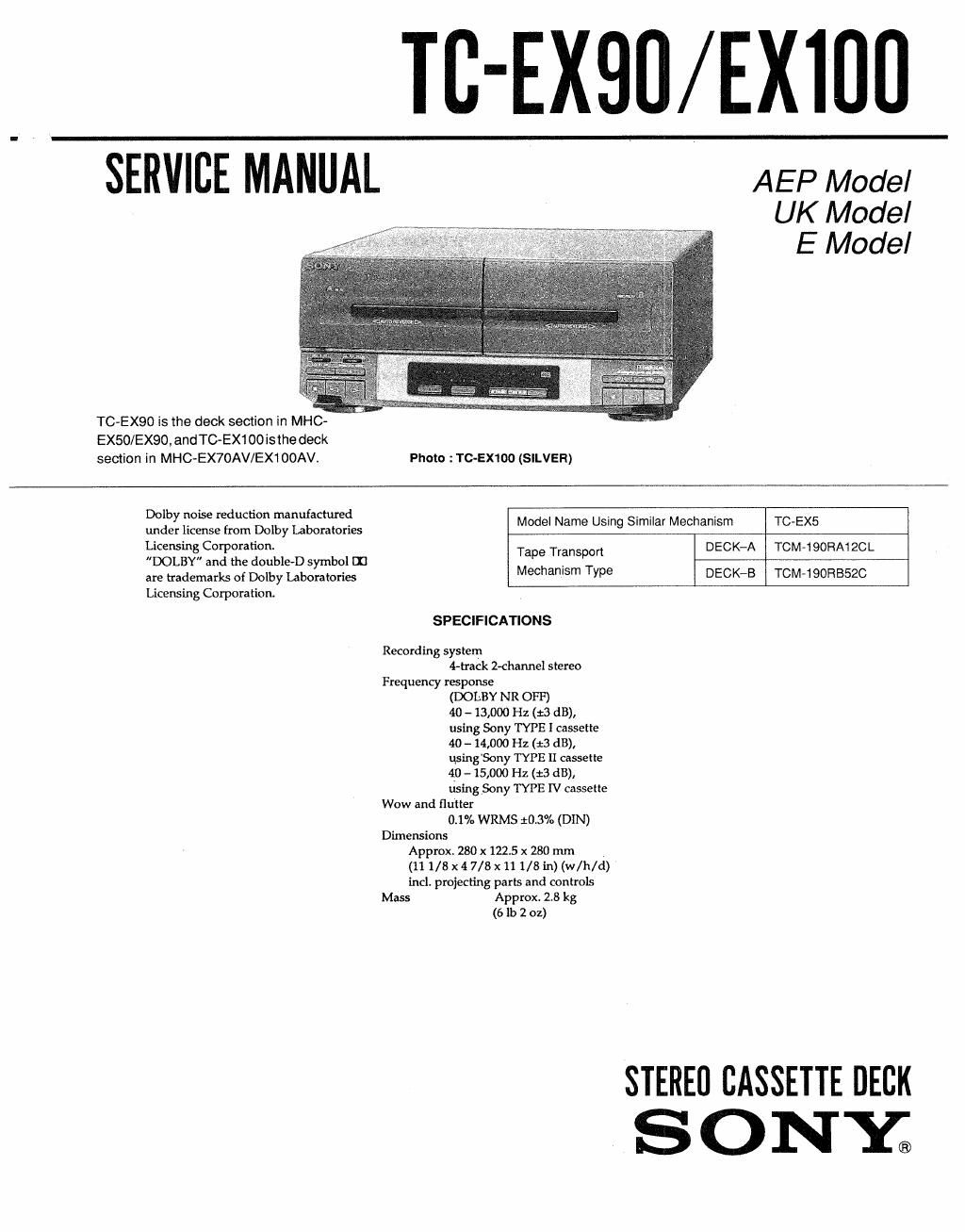

Page 1
TC-EXBfl/EXI'UU
SERVICE MANUAL ' AEpMode,
UK Model
E Model
TC-EX90 is the deck section in MHC-
EX50/EX90, and TC-EX1 00 isthe deck
section in MHCEX70AV/EX100AV. Photo :TC-EX1OO (SILVER)
Dolby noise reduction manufactured
under license from Dolby Laboratories
Licensing Corporation Ta e Trans on DECK-A TCM-190RA120L
"DOLBY" and the double-D symbol on p p
are trademarks of Dolby Laboratories
Licensing Corporation.
Model Name Using Similar Mechanism TC-EXS
Mechanism Type DECK-B TCM»190RBSZC
SPECIFICATIONS
Recording system
4-I1'ack 2vchannel stereo
Frequency response
(DOLBY NR OFF)
40 - 13,000 Hz (:3 dB),
using Sony TYPE I cassette
40 - 14,000 Hz (13 dB),
using'Sony TYPE 11 casselte
4D - 15,000 Hz (:3 dB),
u'slngISony TYPE IV casselte
Wow and flutter
0.1% WRMS 10.3% (DIN)
Dimensions
Approx. 280 x 122.5 x 280 mm
(11 1/8 x 4 7/8 x 11 1/8 in) (w/h/d)
incl. projecting parts and controls
Mass Approx. 2.8 kg
(6 lb 2 oz)
STEREO CASSETTE DECK
S 0 NY;
