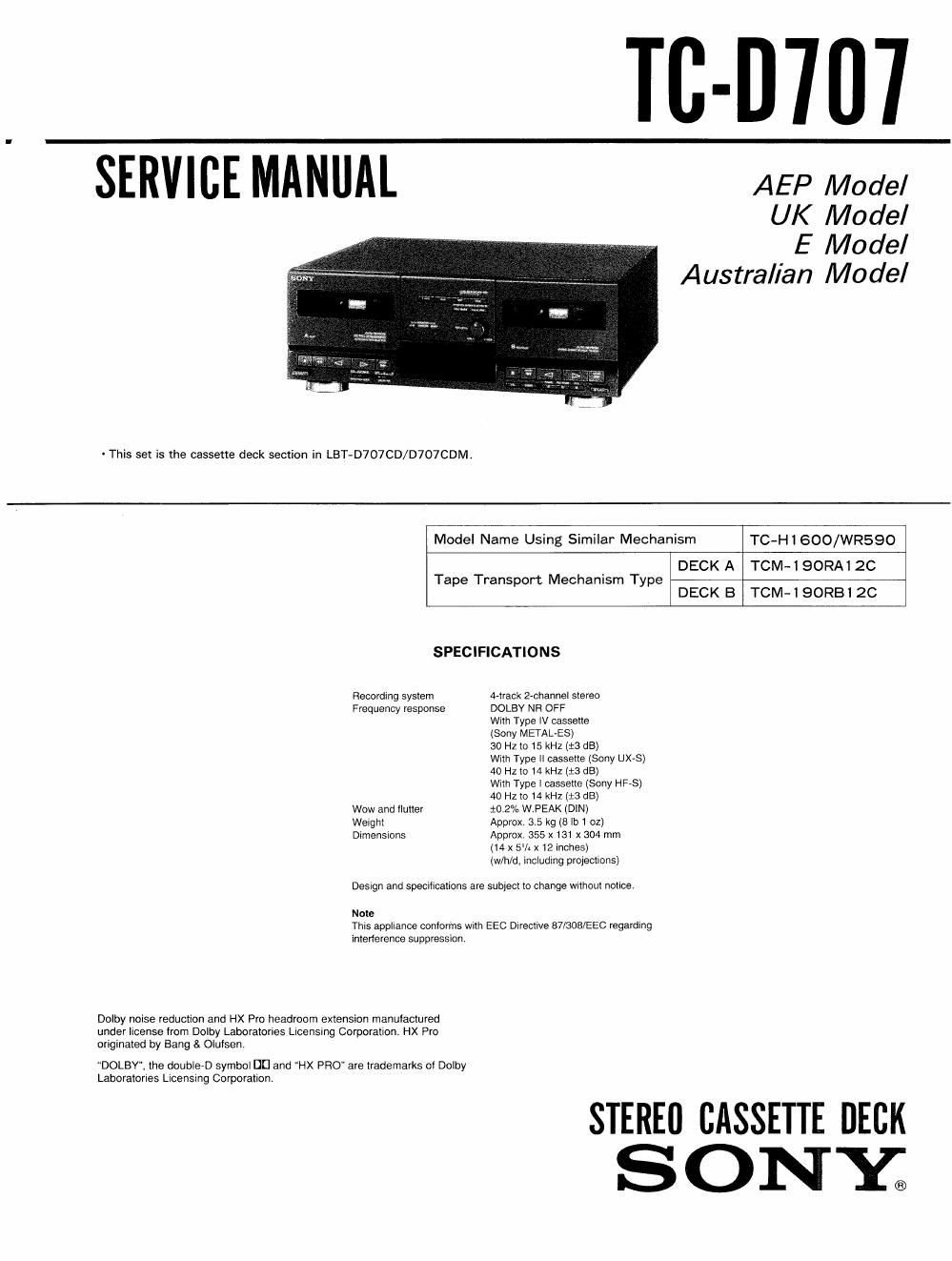

TC-D'Ill'l
SERVICE MANUAL AEP Model
UK Model
E Model
Australian Model
' This set is the cassette deck section in LBT-D707CD/D707CDM.
Model Name Using Similar Mechanism TC-Hl 600/WR590
DECK A TOM-190RA12C
DECK B TOM-190RB12C
Tape Transport Mechanism Type
SPECIFICATIONS
Recording sysiern 4~track 2-channel stereo
Frequency response DOLBY NR OFF
With Type IV cassette
(Sony METALES)
30 Hz to 15 kHz (:3 dB)
With Type II cassette (Sony UX-S)
40 HZ lo 14 kHZ (:3 dB)
With Type I cassette (Sony HF-S)
40 Hz to 14 kHz (13 dB)
Wow and flutter 10.2% W.PEAK (DIN)
Weight Approx 315 kg (8 lb 1 oz)
Dimensions Approx 855 x 131 x 304 mm
(14 x 5% x 12 inches)
(w/h/d, Including projections)
Design and specifications are subject to change Without notice.
Note
This appliance conforms with EEC Directive 87/308/EEC regarding
interference suppression.
Dolby noise reduction and HX Pro headroom extension manufactured
under license from Dolby Laboratories Licensing Corporation, HX Pro
originated by Bang & Olulsen,
DOLBY, the double-D symbol DD and HX PRO" are trademarks oi Dolby
Laboratories Licensmg Corporation
