Sony tc d 705 service manual
This is the 25 pages manual for sony tc d 705 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony tc d 705 service manual (Ocr-read)

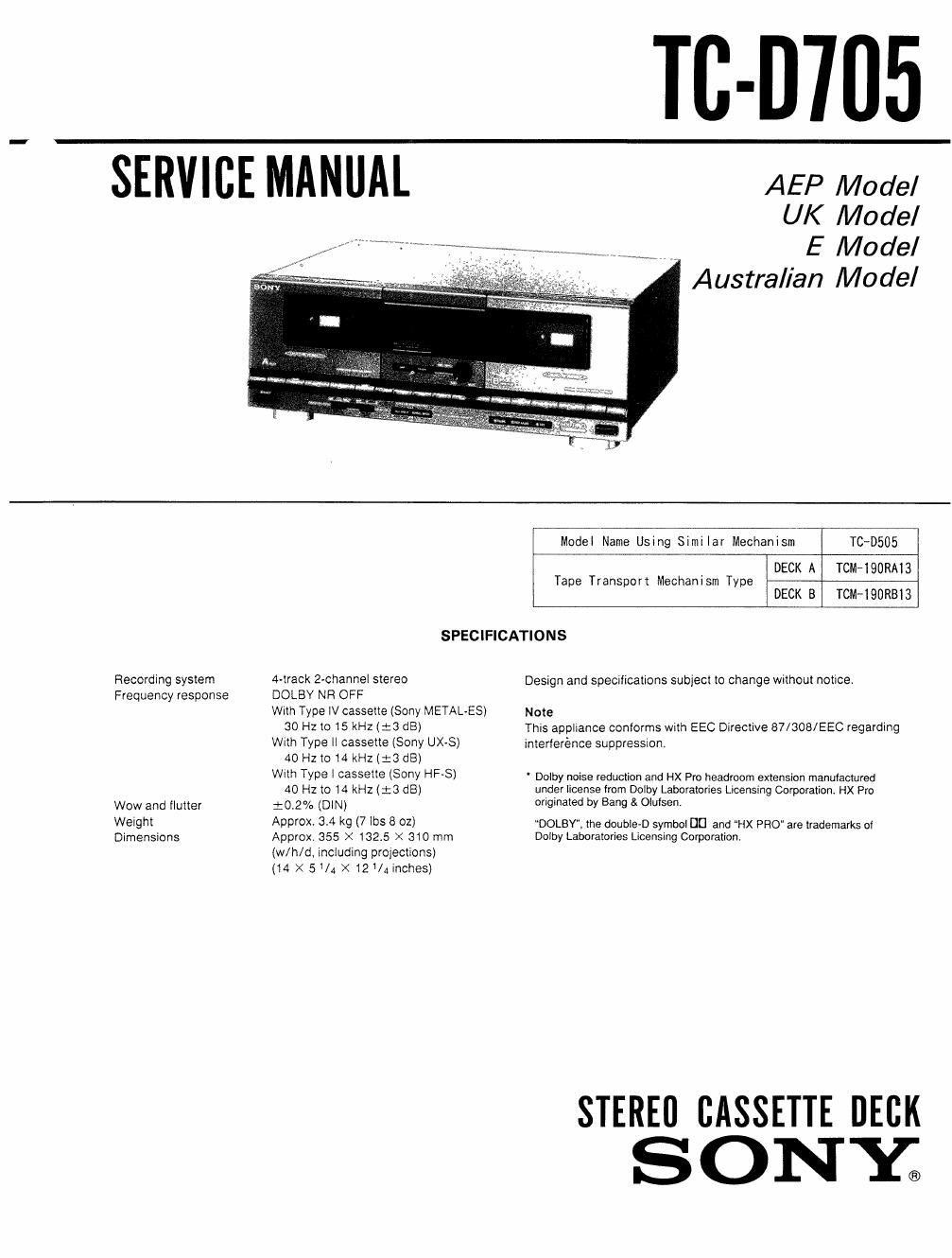

Page 1
Til-0705
SERVICE MANUAL AEP Model
UK Model
E Model
Australian Model
Model Name Using Similar Mechanism TCD505
DECK A TCM-I90RA13
DECK B TCM-IQURBI3
Tape Transport Mechanism Type
SPECIFICATIONS
Recording system 44'3 2-channel stereo Design and specifications subject to change WlIhOUI notice.
Frequency response DOLEIY NR OFF
With Type IV cassette (Sony METAL»ES) Note
30 H210 15 kHz (113 dB) This appliance coniorms with EEC Directive 87/808/EEC regarding
With Type II cassette (Sony UX-S) intenerénce suppression.
40 HZI014 kHz (:3 dB)
Wlth TYDe I cassette (50W HF'S) Doiby noise reduction and HX Pro headroom extension manufactured
40 Hz to 14 kHZ (:3 (18) under license from DoIby Laboratories Licensing Corporation. HX Pro
Wow and flutter :0.2% (DIN) originated by Bang & Oluisen.
Weight Approx 3.4 kg (7 lbs 8 02) DOLBY, the double-D symbol DD and HX PRO" are trademarks 01
Dimensions Approx. 355 X 1325 X 310 mm Dolby Laboratories Licensmg Corporation.
(w/h/d. including protections)
(14 X 5 V4 X 12 V4 Inches)
STEREO CASSETTE DECK
SONY;
