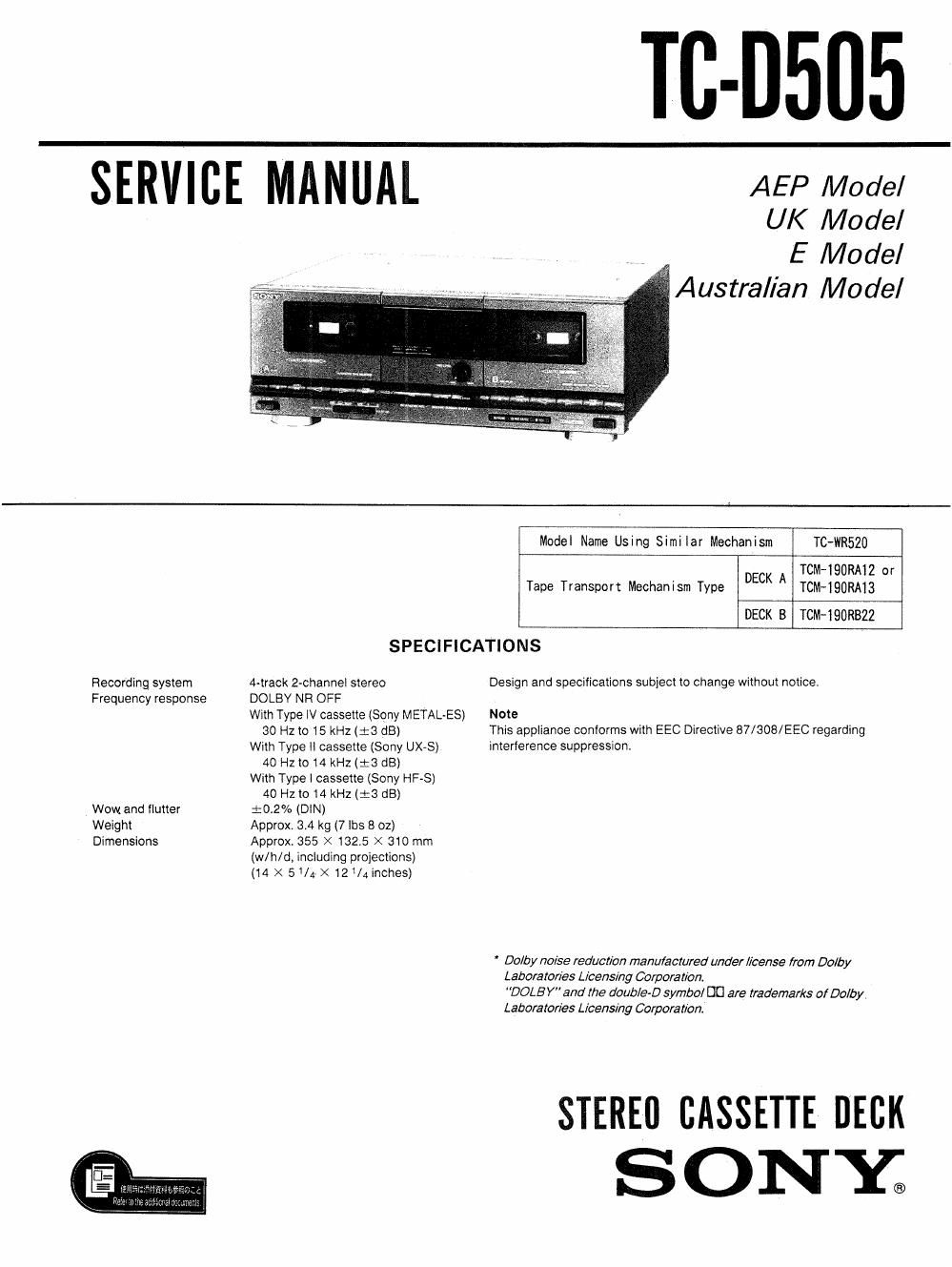

Page 1
Til-0505
SERVICE MANUAL AEP Mode/
UK Model
E Model
Austral/an Model
Recording system
Frequency response
Wow and flutter
Weight
Dimensions
Model Name Using Simi iar Mechanism TC-WRSZO
TCM-IQORAIZ or
Tape Transport Mechanism Type DECK A TCM'IQORA13
DECK B TCM-I 90R322
SPECIFICATIONS
A-track 2-channel stereo Design and specifications subiect to change without notice.
DOLBY NR OFF
With Type IV cassette (Sony METALAES) Note
30 Hz to 15 kHz (t3 dB) This appliance conforms with EEC Directive 87/308/EEC regarding
With Type II cassette (Sony UX-S) interference suppression,
4o Hzto 14 kHz (i3 dB)
With Type i cassette (Sony HF-S)
40 Hz to 14 kHz (:3 dB)
:ot2% (DIN)
Approx. 34 kg (7 lbs 8 oz)
Approx 355 X 132.5 X 310 mm
(w/h/d, including projections)
(14 X 5/4v>< 12% inches)
' Dolby noise reducI/on mam/lectured under license from Dolby
Laboratories Licensing Corporar/On
DOLBY" and the double-D symbol DCI are trademarks of Dolby
Laboratones Licensing Corporation.
STEREU CASSETTE DECK
SONE
Page 2
TC-D505
SAFETY CH ECK-OUT
After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:
Check the antenna terminals, metal trim, metallized
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5 mA (500 microampers). Leakage
current can be measured by any one of three
methods
l. A commercial leakage tester, such as the
Simpson 229 or RCA WT-S40A. Follow the
manufacturers instructions to use these instrU-
ments.
2. A battery~operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job,
3. Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt-
meter. The limit" indication is 0.75V. so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
mUItimeters that have a 2V AC range are
suitable (See Fig A)
To Exposed Metal
Pairs on Set
AC
/ valtmera/
(0.75 V)
0J5MF IELSHT
L.
9: Earth Ground
Fig A. Using an AC voltmeter to check AC leakage,
TABLE OF CONTENTS
Section Title Pye
SECTION I. GENERAL- ~ - o - - ~ . . . ~ ~ 3
SECTION 2. DISASSEMBLY' . ~ ~ - - ~ . . . 4
SECTION 3. MECHANICAL ADJUSTMENTS ~ ' . ~ 5
SECTION 4. ELECTRICAL ADJUSTMENTS - ~ ~ . 5
SECTION 5. DIAGRAMS
5-14 Printed Wiring Boards
-Main Section-e - ~ . « ~ ~ ~ . 9
5-2. Schematic Diagram
-Main Section- - ~ . - . . . 0 '13
5-3. Circuit Boards Location- . .17
5-4. Printed Wiring Boards
-Pane1 Section- . ~ ~ ~ . . - ~17
5-5. Schematic Diagram
-Pane1 Section- - - . ~ . . . '19
SECTION 6. EXPLODED VIEWS
6-1. Chassis Section- . - . - . -21
6-2. Front Panel Section. ~ ~ . - 22
8-3. Mechanism Section 1» ~ ~ ~ ~23
6-4. Mechanism Section 2' - . ~ .24
SECTION 7. ELECTRICAL PARTS LIST. . . -25
SAFETY-RELATED COMPONENT WARNING]!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BV SONY.
