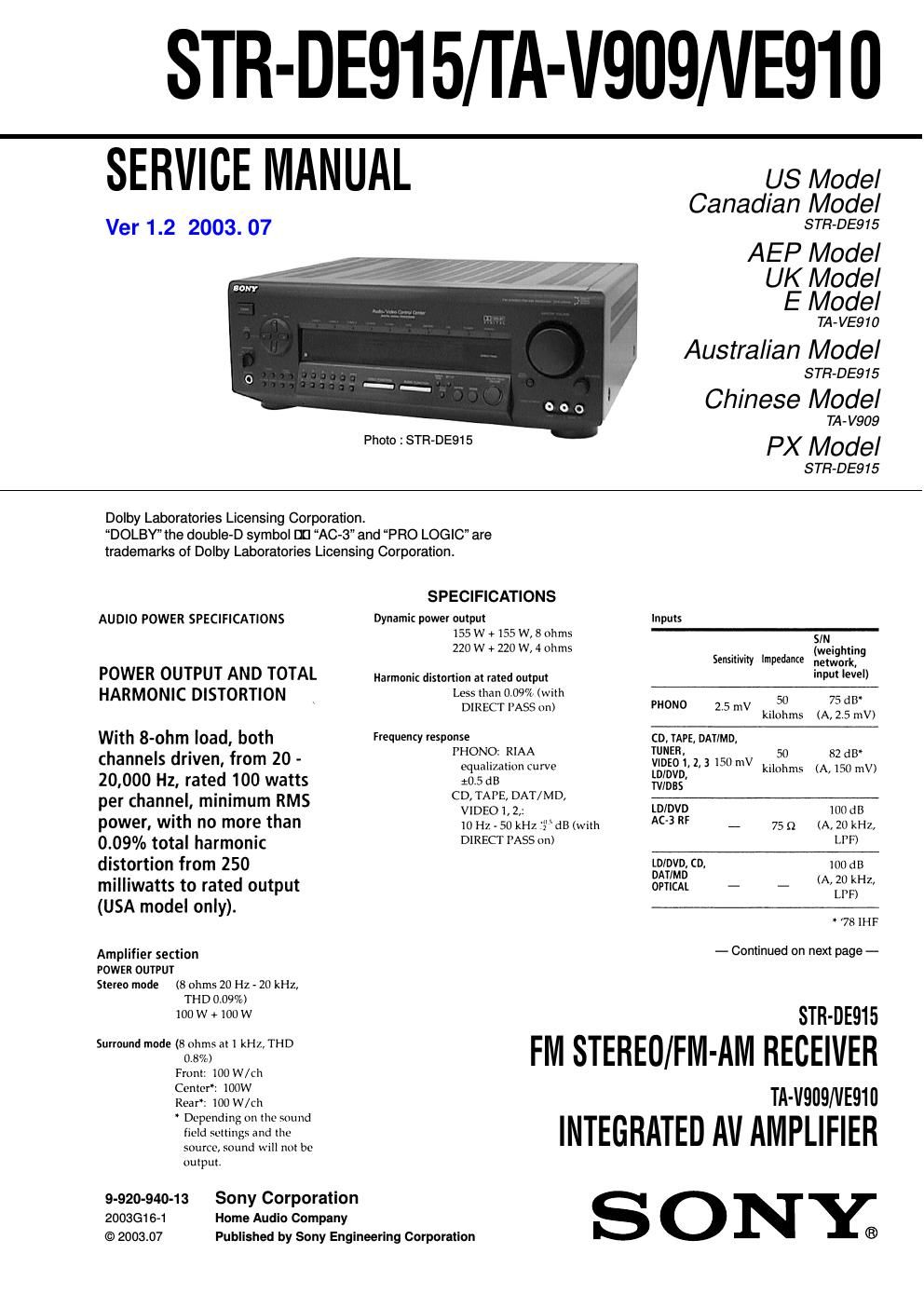

Sony ta ve 910 service manual

This is the 54 pages manual for sony ta ve 910 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 54
sony ta ve 910 service manual

Extracted text from sony ta ve 910 service manual (Ocr-read)


Page 2

Outputs VIDEO 1, 2 AUDIO OUT:
Voltage: 150 mV,
Impedance: 10 kilohms
WOOFER:
Voltage: 2 V
Impedance: 1 kilohms
PHONES:
Accepts low and high
impedance headphones

BASS BOOST +6 dB at 50 H7

Digital signal processor section
Modulation (AID conversion)
High Density Linear
Converter

Demodulation (DIA conversion)
High Density Linear
Converter (Advanced
pulse D/A converter)

Sampling frequency
48 kHz

LFE MIX:

MUTE, -2(l - 0 dB, 0.5 (115

step
D. RANGE COMP:

OFF, 0.1 - 0.9, STD, MAX
REAR level:

-20 - +10 dB, 0.5 dB step
CENTER level:

720 - +10 dB, 0.5 dB step
SUB WOOFER level:

-20 ~ +10 dB, 0.5 dB step
EFFECT:

21-step adjustable
WALL:

17-step adjustable
SEAT F/R:

17-step adjustable
SEAT L/R:

17 REBERB time:

l7»step adjustable
Depending on the sound

field, some para meters

may not be adjustable

Surround

Equalizer BAND: BASS/TREBLE
Turnover frequency:
Bass: 99 Hz - 992 Hz
Treble: 1.0 kHz - 8.6 kHz

Level: :10 dB, 0.5 dB step

FM tuner section (STR-DE915)
Tuning range 87.5 - 108.0 MHZ

Antenna terminals

75 oth, unbalanced
Sensitivity Mono: 18.3 dBf, 4.5 uV
Stereo: 38.3 dBf, 45 pV

Usable sensitivity
11.2 am, 2 uV (IHF)

SIN Mono: 76 dB
Stereo: 70 dB

Harmonic distortion at 1 kHz
Mom): 0.3%
Stereo: 0.5%

Separation 45 dB at 1 kHz
Frequency response
31) Hz -15 kHz :1" dB

Selectivity 60 dB at 400 kHz

AM tuner section (STH-DE915)

Tuning range With 10 kHz interval:
530 - 1710 kHz (US, PX and
Canadian model only")
530 -1610 kHz (models for
all other countries except
for Australia)

With 9 kHz interval:

531 » 1710 kHz (US, PX and
Canadian model only)
531-1602 kHz (Australian
model and models for all
other countries)

Antenna Loop antenna
Usable sensitivity
50 dB/m (at 1,000 kHz or
999 kHz)

SIN 54 dB (at 50 mV/ m)
Harmonic distortion
0.5 79 (50 mV/ m,
400 kHz)

At 9 kHz: 35 dB
At 10 kHz: 40 dB

Selectivity

" You can change the AM tuning
interval to 9 kHz (US, PX and Canadian
model only) or to 10 kHz (models for
all other countries except for
Australia). After tuning in any AM
station, turn off the receiver. Hold
down the PRESET TUNING + button
and press the POWER button. All
preset stations will be erased when
you Change the interval: To reset the
interval to 10 kHz (or 9 kHz), repeat
the procedure.

Video section

Inputs 1 Vp-p 75 ohms

Outputs 1 Vprp 75 ohms

General

System Tuner section:(S'lRrDE9 [5)

PLL quartz-locked digital
synthesizer system
Preamplifier section:
Low-noise NF type
equalizer
Power amplifier section:
Pure-complementary SEPP

Power requirements
US and Canadian models:
120 V AC, 60 Hz
Australian model:
240 V AC, 50 Hz
E, PX models:
120/240/220 V AC
selectable, 50/60 Hz
AER UK, German,
East European,
North European models:
230 V AC. 50/ 60 Hz
Singapore, Chinese,
Malaysia models:
220 7 230 V AC, 50 /60 Hz

Power consumption
Canadian model: 480 VA
Other models: 290 W
AC outlets US. Canadian, PX. Chinese
models:
2 switched, total
121) W
Other models:
1 switched, maximum
100 W

430 x155 x 350 mm
(17 x 6 I/x x 13 7/» inches)
including projecting parts
and controls

Dimensions

Mass (Approx)
STR-DE915: 11.2 kg
(24 1b 1004)
TA-V909/VE910: 9.8 kg
(21 lb 902)

Design and specifications are subject to
change without notice.
