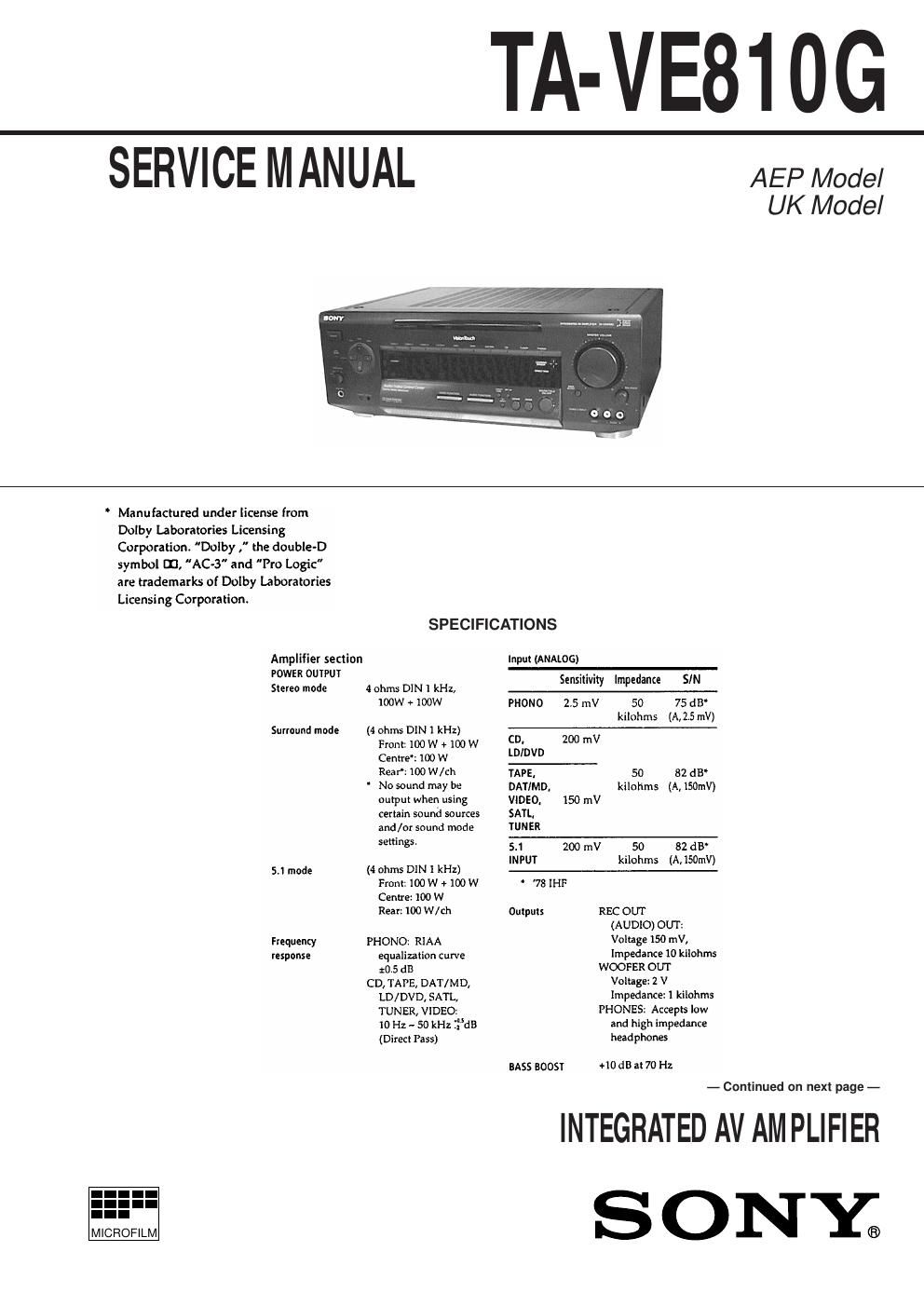

Sony ta ve 810 g service manual
This is the 62 pages manual for sony ta ve 810 g service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ta ve 810 g service manual (Ocr-read)
Page 2
Ñ 3 Ñ ALL CLEAR Mode which erases all the user memories registered in this unit and sets to setting at shipment. Procedure: 1. With the power turned OFF, press the POWER button while pressing the MODE button, AUDIO FUNCTION > and VIDEO FUNCTION > button simultaneously to turn ON the power. 2. ALL CLEAR ! will be displayed on the fluorescent indicator tube, and ALL CLEAR will be executed. FACTORY SET Mode which sets the memory of the unit to the setting of adjust- ment and check at factory. (Not used for servicing.) Procedure: 1. With the power turned OFF, press the POWER button while pressing the MODE button and AUDIO FUNCTION > button simultaneously to turn ON the power. 2. FACTORY SET will be displayed on the fluorescent indicator tube, and FACTORY SET will be executed. Note: In case you return the unit to the customer, do not perform FACTRY SET. If you do it, perform ALL CLEAR. Fluorescent indicator tube, LED all lit mode Procedure: 1. With the power turned OFF, press the POWER button while pressing the MODE button and VIDEO FUNCTION > button simultaneously to turn ON the power. 2. The fluorescent display tubes and LEDs will all light up. Re- lease the buttons in the order of VIDEO FUNCTION > , and MODE . 3. The Fluorescent indicator tube display changes as follows by pressing the AUDIO FUNCTION < , AUDIO FUNCTION > . (Pressing the other buttons will exit this mode.) SECTION 1 SERVICING NOTE 9 Fluorescent indicator tube and all LEDs are OFF 9 9 Partial lighting of fluorescent indicator tube 2, LEDs are OFF *1 9 Partial lighting of fluorescent indicator tube 1, LEDs are OFF *1 9 Fluorescent indicator tubes, LEDs are all lit ¥ Press AUDIO FUNCTION < button or AUDIO FUNCTION > button. ¥ Press AUDIO FUNCTION < button or AUDIO FUNCTION > button. ¥ Press AUDIO FUNCTION < button or AUDIO FUNCTION > button. ¥ Press AUDIO FUNCTION < button or AUDIO FUNCTION > button. *1 Those other than the STANDBY LED go OFF. 4. To exit the mode, press the POWER button to turn OFF the power. MEMORYMEMORY SML THEATER SML HALL ACOUSTIC KARAOKE ARENA STADIUM HIGH ENHANCED PRO LOGIC MONO MOVIE MUSIC 12 SPORTS GAME STEREO MONO Adjustment of OSD Screen Position The position of the screen can be adjusted freely to correct the de- viation of the OSD screen caused by the monitor type that users are using. 1. Move the cursor of the remote commander supplied as an acces- sory, and display the OSD screen. 2. Click the SET UP of the OSD screen. 3. Next click TV SET. 4. Next click GRAPHIC POSITION SET. 5. The screen for adjusting the OSD screen position will be dis- played. Adjust the position with the remote commander supplied as an accessory. 6. Click EXIT to end. Key Check Mode Method: 1. With the power OFF, while pressing the MODE button and AUDIO FUNCTION < button together, press the POWER but- ton. 2. ÒKEY TEST [18]Ó will be displayed on the FL display tube. 3. The [XX] number is counted down each time a button other than POWER is pressed until it becomes [00]. (Buttons pressed once will not be counted again when pressed another time.) 4. When the number becomes [00], press the POWER button and exit the mode.
