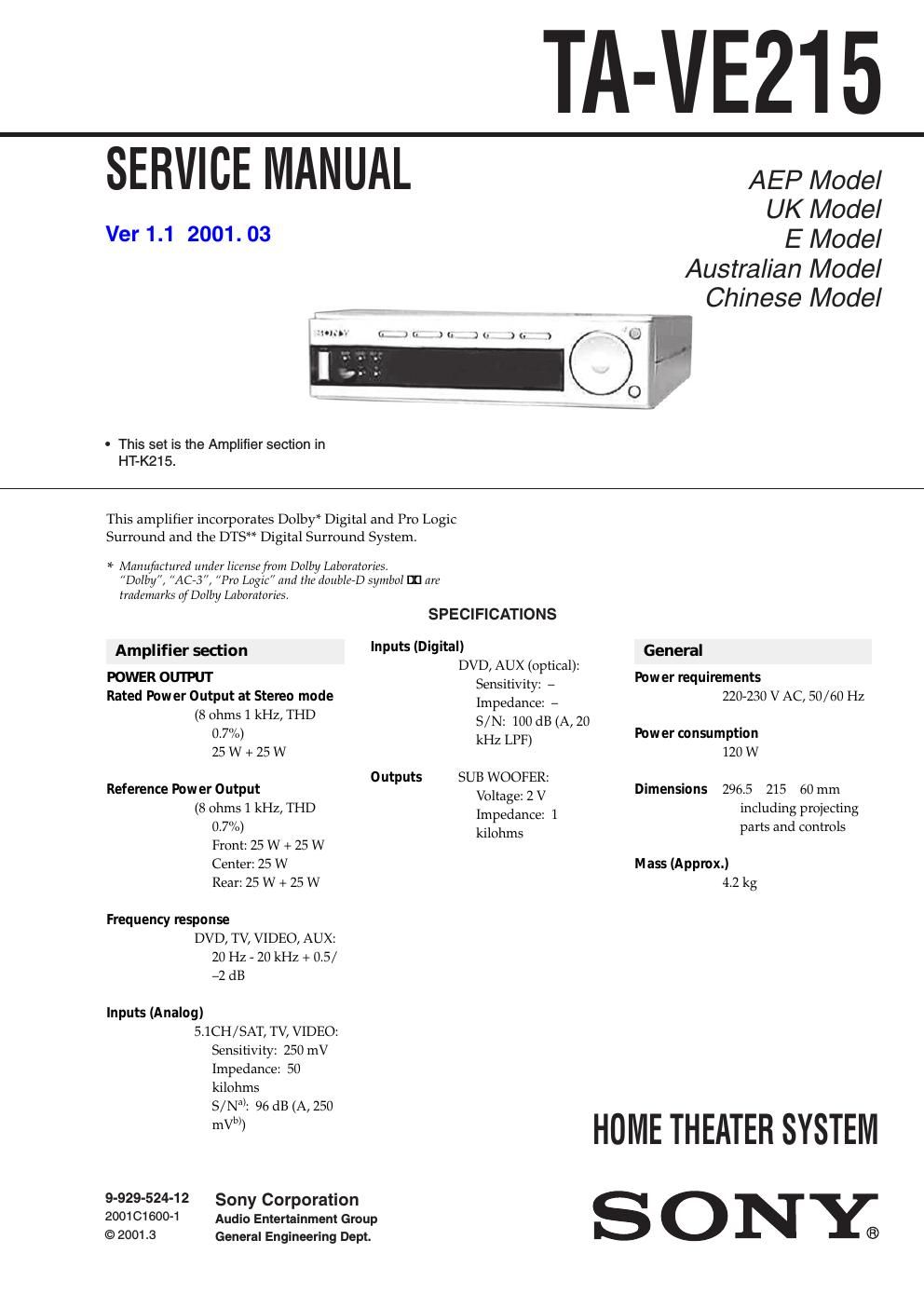

Sony ta ve 215 service manual 2

Page 2

3 SECTION 1 GENERAL R 23 8 1 45 67 ?/1 VIDEO TV DVD AUX 5.1CH/SAT SURR LEVEL SET UP + – SOUND FIELD MODE MASTER VOLUME + 3MASTER VOLUME control After turning on the component you selected, rotate to adjust the volume. 4SURR button Press repeatedly to activate the surround parameters (page 29) and to adjust the various surround parameters (effect level, wall type, etc.). You can then make various settings using the +/– buttons (7).5LEVEL button Press repeatedly to activate the speaker level parameters (page 30) and to adjust the various speaker level parameters (front balance, rear balance, etc.). You can then make various settings using the +/– buttons (7). 6SET UP button Press repeatedly to activate the setup mode and to select any of the following indications. You can then make various settings using the +/– buttons (7). When you select You can Speaker type Specify the type of speakers. (page 15) Speaker setup Specify the front, center, rear speaker sizes, the rear speaker position, and whether or not you are using a sub woofer. (page 15) Speaker Distance Specify the front, center, and rear speaker distances. (page 17) 7+/– buttons Press to adjust the selected speaker level and surround parameters (etc.). 8SOUND FIELD MODE Press repeatedly to activate the sound field selection mode and to select the sound field you want (page 24). 1?/1switch Press to turn the amplifier on and off. 2Function buttons Press one of the buttons to select the component you want to use. To select Press VCR VIDEO TV TV DVD player DVD An audio component AUX DVD through AC-3 5.1 CH/SAT decoder After selecting the component, turn on the component you selected and play the program source. - After selecting VCR or DVD player, turn on the TV and set the TVs video input to match the component you selected. This section is extracted from instruction manual.
