Extracted text from sony ta v 606 service manual (Ocr-read)

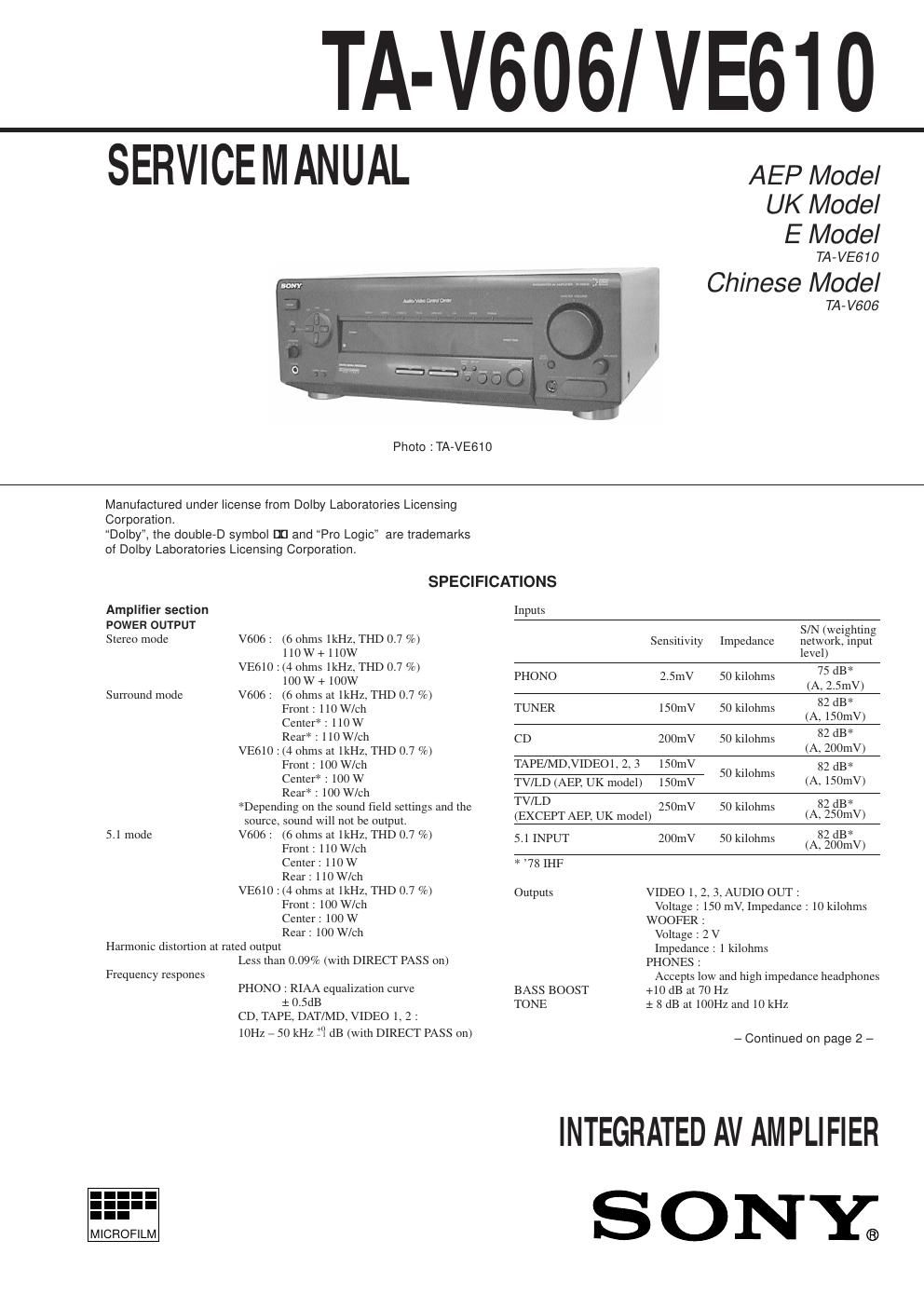

Page 1
Ð 2 Ð SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. TABLE OF CONTENTS Specifications ........................................................................... 1 1. GENERAL Location and Function of Controls .................................... 3 2. DIAGRAMS 2-1. IC Pin Function ........................................................... 5 2-2. Circuit Boards Locations ............................................ 7 2-3. Printed Wiring Boards Ð Surround Section Ð ............. 8 2-4. Schematic Diagram Ð Surround Section Ð ............... 11 2-5. Schematic Diagram Ð AMP Section Ð ..................... 15 2-6. Printed Wiring Boards Ð AMP Section Ð .................. 19 2-7. Printed Wiring Boards Ð Display Section Ð ............. 23 2-8. Schematic Diagram Ð Display Section Ð .................. 27 3. EXPLODED VIEWS 3-1. Front Panel Section ................................................... 32 3-2. Chassis Section ......................................................... 33 3-3. Back Panel Section ................................................... 34 4. ELECTRICAL PARTS LIST........................................ 35 Video section Inputs 1 Vp-p 75 ohms Outputs 1 Vp-p 75 ohms General System Preamplifier section : Low-noise NF type equalizer Power amplifier section : Pure-complementary SEPP Power requirements AEP, Singapore, Malaysia model : 230 V AC, 50/60Hz UK model : 240 V AC, 50/60Hz Chinese model : 220 V AC, 50/60Hz Power consumption 240W AC outlets EXCEPT Chinese model : 1 switched, maximum 100W Chinese model : 2 switched, total 100 W Dimensions 430 x 155 x 350 mm including projecting parts and controls Mass (Approx.) 9.8 kg Supplied accessories Remote commander (remote) RM-U501 (1) Size AA (R6) batteries (2) Design and specifications are subject to change without notice.
Page 2
Ð 3 Ð SECTION 1 GENERAL LOCATION AND FUNCTION OF CONTROLS This section is extracted from instruction manual. [FRONT PANEL] !ªSOUND FIELD ON/OFF button !£MODE button !¢GENRE button !°DIRECT PASS, SET UP, 5.1/DVD INPUT buttons !¤AUDIO FUNCTION buttons !¦VIDEO FUNCTION buttons !¥DISPLAY button !»DIMMER button @¼PHONES jack @ÁSPEAKERS switch 1DPC MODE button 2POWER switch 3SUR, TONE, INDEX indicators 4Digital processing control buttons 5Function indicators 6DIRECT PASS indicator 75.1 INPUT indicator 8MASTER VOLUME control 9BALANCE control !¼VIDEO 3 INPUT jacks !ÁBASS BOOST button/indicator 18 5 3 2 !ª !¦ !¤ !£!¢ !° !¥ !» @¼ @Á!¼ 9 67 4 !Á
