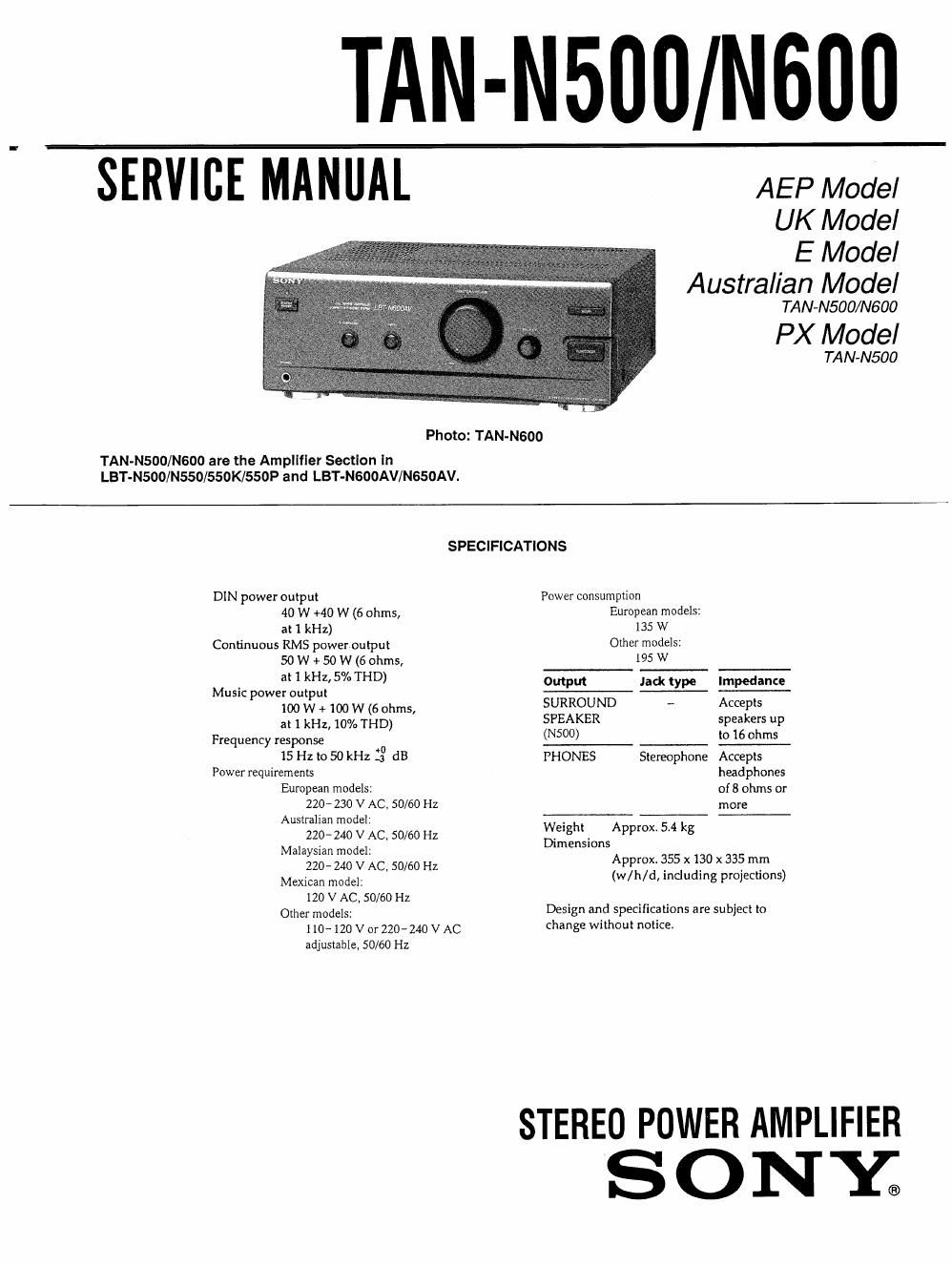

TAN-N500/N600
SERVICE MANUAL
AE P Model
UK Model
E Model
Australian Model
Malaysian model:
220- 240 V AC, 50/60 Hz
Mexican model:
120 V AC, 50/60 Hz
Other models:
110- 120 V or 220-240 V AC
adjustable. 50/60 Hz
Approx. 355 x 130 x 335 mm
(w/h/d, induding projections)
Design and specifications are subject to
change without notice.
TAN-N500/N600
PX Model
TAN-N500
Photo: TAN-N600
TAN-N500/N600 are the Amplifier Section in
LBT-N500/N550/550K/550P and LBT-NSOOAV/NGSOAV.
SPECIFICATIONS
DIN power output Power consumption
40 W +40 W (6 ohms, European models:
at 1 kHz) 135 W
Continuous RMS power output Other models:
50W+50W(6ohms, 195W
, at 1 kHz! 5% THD) Output Jack type Impedance
Musu: power output --- ----- ----
100 W + 100 W (6 ohms, SURROUND - Accepts
at 1 kHz, 10% THD) 51550?)ng Speakers P
Frequency response ( ) 0 16 ohms
15 Hz to 50 kHz :2 dB PHONES Stereophone Accepts
Power requirements headphones
European models: of 8 ohms or
220-230 V AC, 50/60 HZ more
Australian model: '.-"_ _
220-240 v Ac, 50/60 Hz Wes. Appmx' 54 kg
Dimenslons
STEREO POWER AMPLIFIER
SONY;
