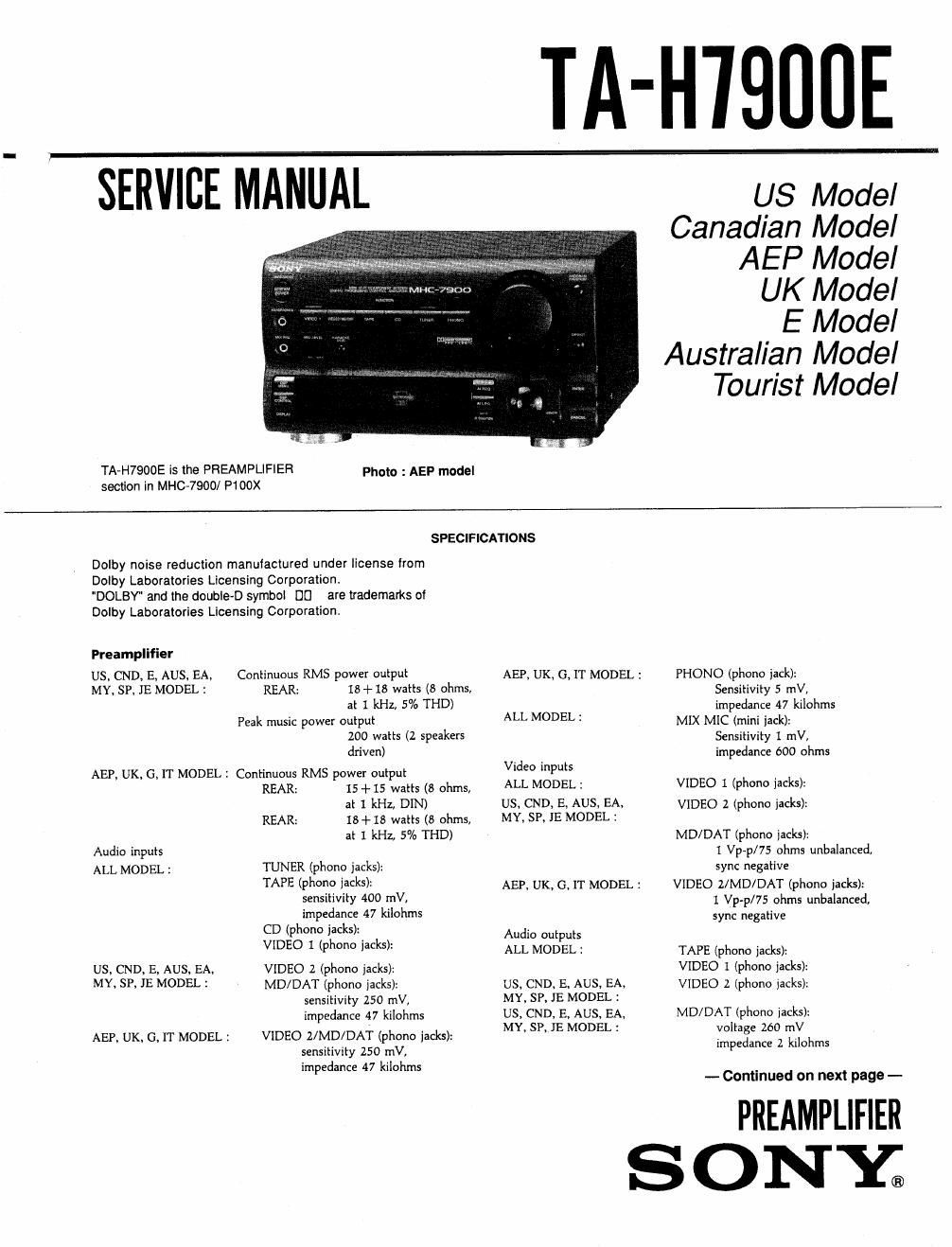

sony ta h 7900e sm

Extracted text from sony ta h 7900e sm (Ocr-read)


Page 2

- MODEL IDENTIFICATION -

AEP, UK. 6, IT MODEL : VIDEO 2/MD/DAT (phono jacks):
voltage ZéOmV
impedance 2 kilohms

HEADPHONES (stereo mini jack):
accepts headphones of 8 ohms
or more

FRONT SPEAKER (phone jack):
impedance 1 kilohm

REAR SPEAKER (phone jack):
accepts speakers of 8 to 16
ohms

CENTER SPEAKER (phone jack):
accepts impedance of 6 to 16

. ohms

SUPER WOOFER (phono jack):
impedance 10 kilohms

ALL MODEL :

Video outputs
ALL MODEL :

US. CND, E, AUS, EA,
MY, SP. JE MODEL :

VIDEO 1 (phono jacks):
VIDEO 2 (phone iacks):'
MD/DAT (phono jacks):
AEP. UK, G, IT MODEL : VIDEO Z/MD/ DAT (phono jacks):
MONITOR OUT (phono jacks):
1 Vp-p/750hms unbalanced,
sync negative
Dimensions
Approx. 225 x 130 x 250 mm (w/h/d)
(8 7/8 x 5 1/8 x 9 7/8 inches)
Mass Approx. 4.1 kg
(9 lb)

General

Power requirements
120V 60 Hz (US, CND MODEL)
220 - 230 V 50/60 Hz
(AEP, G, IT MODEL)
240V 50 Hz (UK MODEL)
III)- 120V/220-240V
AC adjustable 50/60 Hz
(E, AUS. EA, MY, SP, IE
MODEL) .
Power cosumplion
80 W (TA-H7900E only)
Design and specifications subject to change
without notice.

Note :

- CND : Canadian model.
G : German model.
IT : Italian model.

EA : Saudi Arabia model.
AUS : Australian model.
SP : Singapore model.
MY : Malaysia model.

JE : Tourist model.

(Specification Label)

SONY
DIGlTAL CONTROLAMPLIFIER

MODEL NO. jA-H7900E

US, CND model :AC : 120V 60Hz 80W

AEP model :AC : 220 - 230V ~ 50/60Hz 80W

G, [T model :AC : 220 - 230V ~ 50H: 80W

UK model :AC : 240V ~ 50Hz

E, AUS, EA, MY, SP, JE model : AC : 110 -120V/220 -240V ~
50/60H2 80W

Notes on chip component replacement

Never reuse a disconnected chip component.
Notice that the minus side of a tantalum capacitormay bedamaged
by heat.
