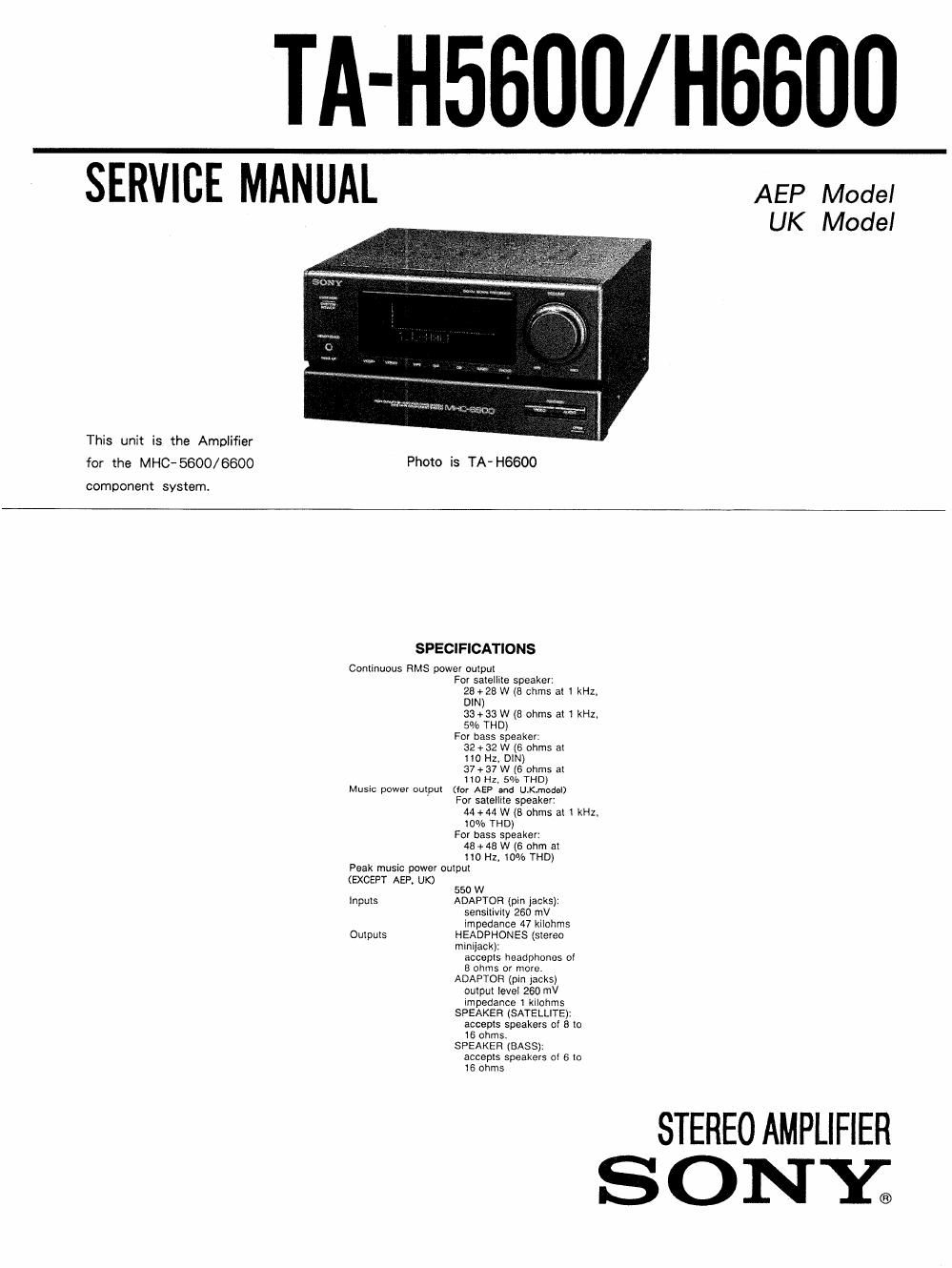

Sony ta h 5600 service manual

Page 2

TA- H5600/H6600

TABLE OF CONTENTS
Section E Egg
1' GENERAL ........................................... 3
2. DIAGRAMS
2-1. IC Pin Description ............................ 9
2-2. Circuit Boards Location ~~~~~~~~~~~~~~~~~~~~~ 16
2-3. Semiconductor Lead Layouts~
2_4_ 1c Block Diagrams .......................... 18
2-5. Block Diagram .............................. 21
2-6. Printed Wiring Boards
-Jack, Power Supply Section- ------------- 24
2-7. Schematic Diagram
--.Iack, Power Supply Section- ------------- 29
Z~8. Schematic Diagram
_Panel Section_ ............................ 33
2'9. Printed Wiring Boards
_Panel Section_ ............................ 37

2-10. Schematic Diagram

-DSP Section- .............................. 41
2-11. Printed Wiring Boards
-DSP Section- .............................. 45
3. EXPLODED VIEWS
3-1 Overall Section 1 ............................ 48
8-2, Overall Section 2 ............................ 49
4, ELECTRICAL PARTS LIST ........................... 50

SAFETY-R E LATED COMPONENT WARN ING I!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

Notes on chlp component replacement

O
0

Never reuse a disconnected chip component.
Notice that the minus side of a tantalum capacitor may
be damaged by heat.

Flexlble clrcult Board Repalrlng

Keep the temperature of the soldering iron around
270°C during repairing.

Do not touch the soldering iron on the same conductor
of the circuit board (within 3 times).

Be careful not to apply force on the conductor when
soldering or unsoldering.

MODEL IDENTIFICATION
- Specification Label -

H5600
H6600
I

I

S ONYo MODEL no. TA- mm

INTEGRATED STEREO AMPLIFIER

AEP, Germany Model : AC 220V~50/60Hz

ltalian Model : AC 220V~50/60Hz
UK Model : AC 240V~50/80Hz
