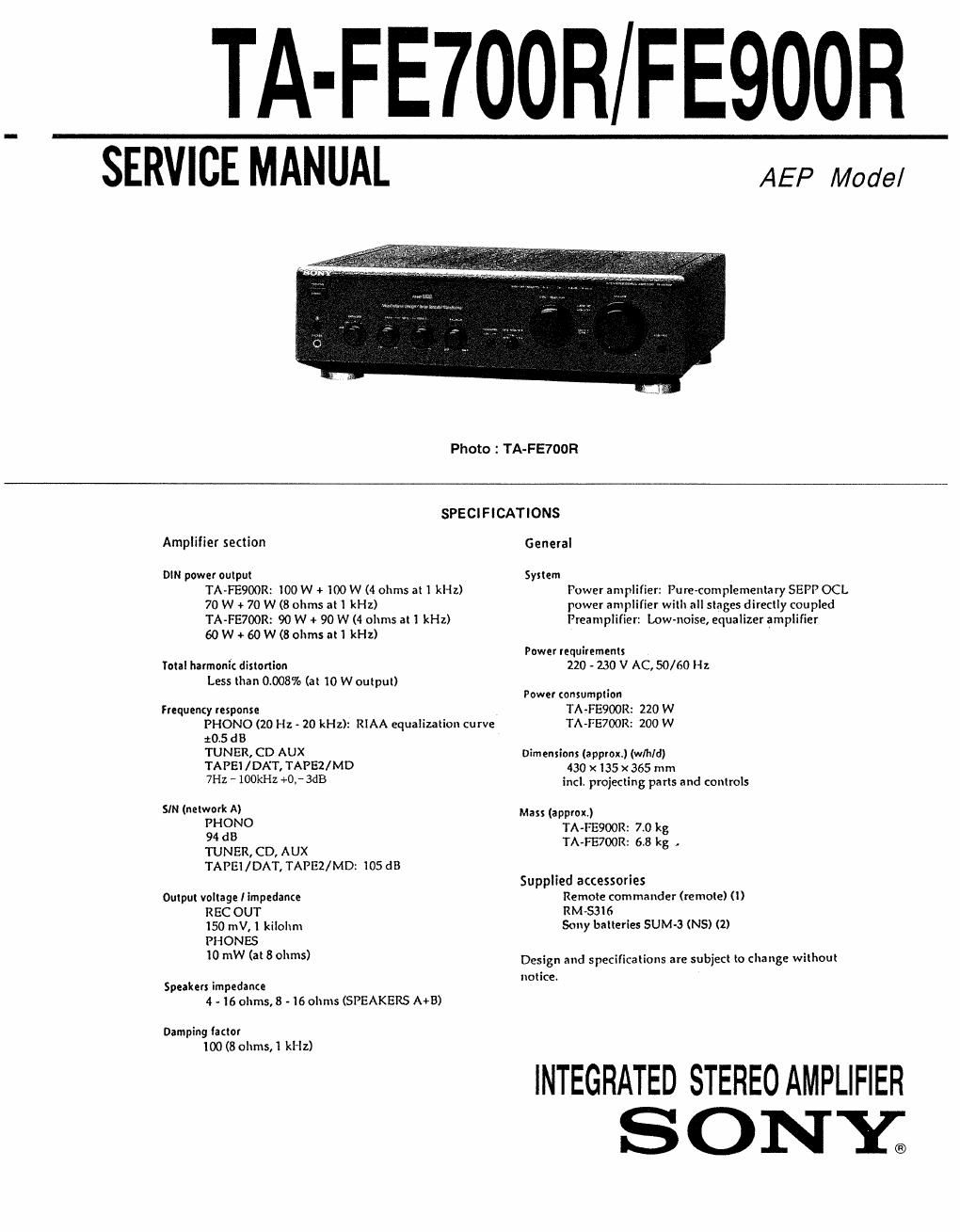

Page 1

TA-FE700R FE900R

SERVICE MANUAL

AEP Model

Photo : TA-FE700R

SPECIFICATIONS
Amplifier section General
DIN power output System

TA-FE900R: 100 W + WOW (4 ohms at 1 kHz)
70 W + 70 W (8 olsms at 1 kHz)

TA-FE700R: 90 W + 90 W (4 ohms at 1 kHz)
60 W + 60 W (8 ohms at 1 kHz)

Iolal harmonic distortion
Less than 0008% (at 10 W output)

Frequency response
PHONO (20 Hz v 20 kHz): RlAA equalizatiun curve
:05 dB
TUNER, CD AUX
TAPEI /DAT. TAPEZ/MD
7H2 ' lOOkHz +0,-3dB

SIN (network A)
PHONO
94 dB
TUNER, CD, AUX
TAPEl IDAT, TAPEZ/MD: 105 dB

Output voltage I impedance
REC OUT
150 mV,l kiloltm
PHONES
10 mW (at 8 ohms)

Speakers impedance
4 ~16 ohms, 8 - l6 ohms (SPEAKERS A+ B)

Damping iartor
100 (8 ohms, 1 kHz)

Power amplifier: Pure-complementary SEPP OCL
power amplifier with all stages directly coupled
Preamplifier: Low-noise, equalizer amplifier

Power requirements
220 - 230 V AC,50/60 Hz

Power consumption
TA-FE9OOR: 220 W
TA-FE'I'OOR: 200 W

Dimensions (approx) (w/hld)
430 x135 x365 mm
incl, projecting parts and controls

Mass (approx)
TA-FE9OOR: 7.0 kg
TA-FE700R: 68 kg .

Supplied accessories
Remote commander (remole) (l)
RM-S3I6
Sony batteries SUM-3 (NS) (2)

Design and specifications are subject to change without
notice

INTEGRATED STEREO AMPLIFIER

SONY;
