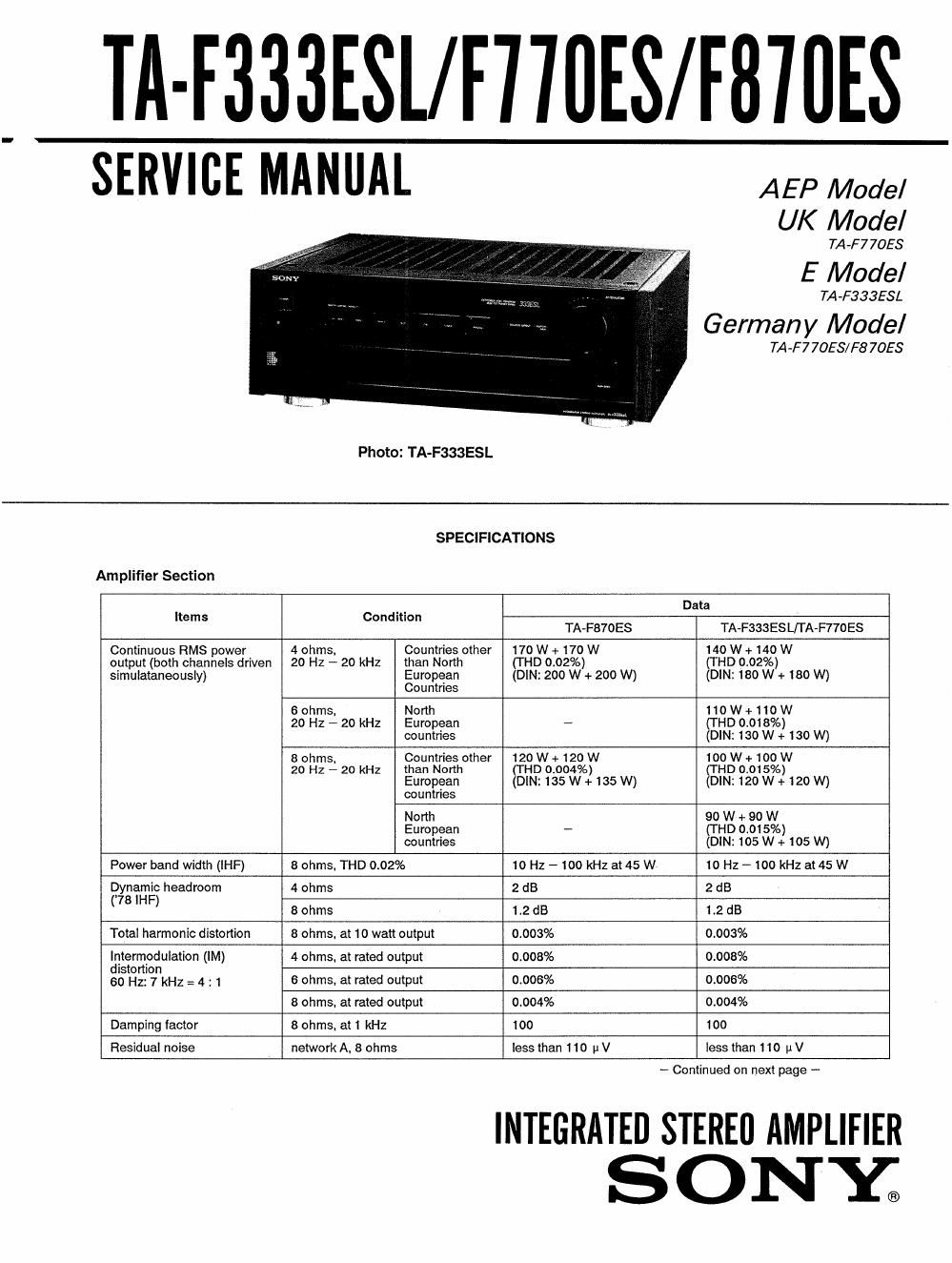

Page 1
TII-F333ESI/FIIIIES/F87IIES
SERVICE MANUAL AEP Model
UK Model
TA-F77OES
E Model
TA-F333ESL
Germany Model
TA -F77OES/F8 7053
Photo: TA-F333ESL
SPECIFICATIONS
Amplifier Section
Data
Items Condition
TA-F870ES TA-F333ES L/TA-F770ES
Continuous RMS power 4 ohms, Countries other 170 W + 170 W 140 W + 140 W
output (both channels driven 20 HZ -- 20 kHz than North (THD 0.02%) (THD 0.02%)
simulataneously) European (DIN: 200 W + 200 W) (DIN: 180 W + 180 W)
Countries
Gohms, North 110W+t10W
20 Hz - 20 kHz European - (THD 0.018%)
countries (DIN: 130 W + 130 W)
8 ohms, Countries other 120 W + 120 W 100 W + 100 W
20 Hz - 20 kHz than North (THD 0.004%) (THD 0.015%)
European (DIN: 135 w +135 W) (DIN: 120 w + 120 W)
countries
North 90 W + 90 W
European - (THD 0.015%)
countries (DIN: 105 W + 105 W)
Power band Width (IHF) 8 ohms, THD 0.02% 10 HZ - 100 kHz at 45 W7 10 Hz - 100 kHz at 45 W
Dynamic headroom 4 ohms 2 dB 2 dB
(78 IHF)
Bohms 1.2 dB 12 dB
Total harmonic distortion 8 ohms, at 10 watt output 0003% 0.003%
Intermodulation (IM) 4 ohms, at rated output 0.008% 0.008%
distortion
60 Hz: 7 kHz = 4 ; 1 6 ohms, at rated output 0.006% 0.006%
8 ohms, at rated output 0.004% 0.004%
Damping factor 8 ohms, at 1 kHz 100 100
Residual noise network A. 8 ohms less than 110 p V less than 110 n V
- Continued on next page -
INTEGRATED STEREO AMPLIFIER
SONYa
Page 2
TA-F333ESL/F77OES/F87OES
Data
Items Condition
TA-F870ES TA-F333ESL/TA-F77OES
Frequency response PHONO MM RIAA equalization curve RIAA equalization curve
i 0.2 dB : 0.2 dB
TUNER, CD, TAPE 1.2.3. 2 Hz - 200 kHz 1; dB 2 Hz - 200 kHz 1°; dB
DIRECT IN
Input sensitivity PHONO MC 0.17 mV (1 kohm)
0.17 mV E1 kohm)
0.17 mV (100 ohms) 0.17 mV 100 ohms)
MM
2.5 mV, 50 kohms 2.5 mV, 50 kohms
TUNER, CD, DIRECT IN,
TAPE 1. 2. 3, ADAPTOR. AUX
150 mV, 20 kohms 150 mV, 2o kohms
S/N mitwork) PHONO MC 79 (0.5 mV) 77 (0.17 mV)
7::
I I MM 93 (5 mV) 93 (2.5 mV)
TUNER, co. DIRECT IN, 105 (150 mV) 105 (150 mV)
TAPE 1, 2, 3, ADAPTOR. AUX
Output voltage impedance REc OUT I, 2, a 150mV, 1kohm 150mV. lkohm
ADAPTOR
HEADPHONES 25 miliwatts (at 8 ohms) 25 miliwatts (ats ohms)
Accepts low and high Accepts low impedance
impedance headphones. headphones.
Tone controls BASS, an 100 Hz : 7 dB : 7 dB
TREBLE, at 10 kHz i 6 dB i 6 dB
Subsoniefilter ~
6 DB/octave attenuation 6 DB/octave attenuation
below 15 Hz below 15 Hz
Muting - - 20 dB - 20 dB
- Continued on next page -
TABLE OF CONTENTS
MODEL IDENTIFICATION
Section Title Page - Specification Labels ~
- - ........................ TA-F333ESL
SpeCIfIcatIons ~~~~~~~~~~ 1 TA-F770ES
Model Identification ~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 2 TA-FB70ES
Operationg Voltage ............................. 3
1 . GENERAL
Function of Controls ...................... 4
System Connections ---------------------- 6
2. DISASSEMBLY ......................... 7
3. SWITCH DISASSEMBLY AND
ASSEMBLY ............................ g
4. ELECTRICAL ADJUSTMENTS ~~~~~~~~~~ 9
5. DIAGRAMS
51. Block Diagrams -------------------------- 10
5-2. Circuit Boards Location . 10
5-3. Printed Wiring Boards ~~ . 12
5-4. Sohematic Diagram ....................... 17
6. EXPLODED VIEWS .................... 24
7. ELECTRICAL PARTS LIST ~~~~~~~~~~~ 28
SONY®
INTEGRATED STEREO AMPLIFIER
WWW
MODEL NO.
SERIAL N0.
MADE IN JAPAN
AEP, Germany model: AC: 220 V ~50/60 Hz
UK model: AC: 240 V ~50/60 Hz
E model: AC: 120/220/240 V ~50/60 Hz
SAFETY-RELATED COMPONENT WARNINGII
COMPONENTS IDENTIFIED BV MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
