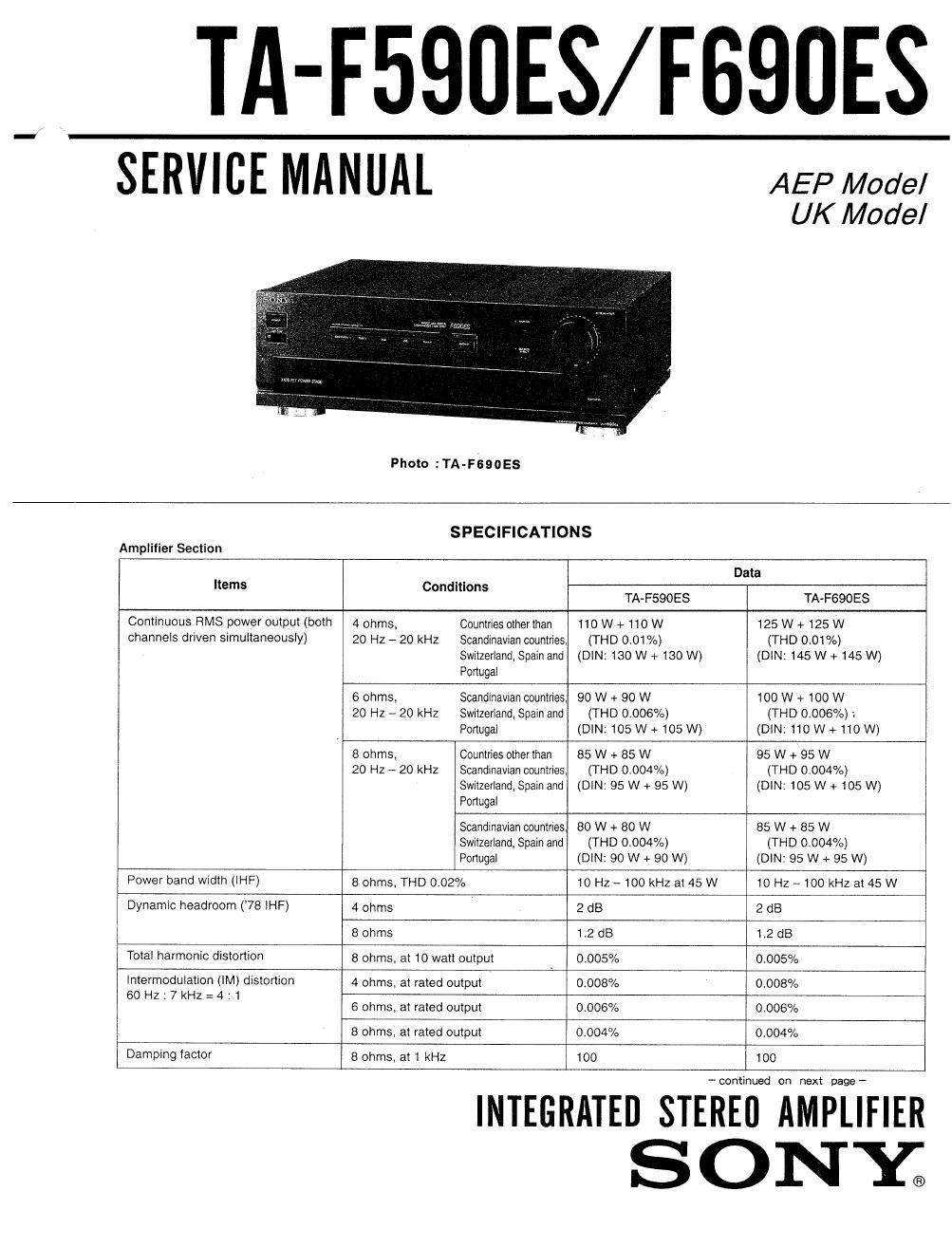

Page 1

TA-F590ES/ F 690ES

SERVICE MANUAL

Photo :TA-Fosoes

AEP Model
UK Model

SPECIFICATIONS
Amplifier Section
Data
items Conditions
TA~F590ES TA-F690ES
Continuous HMS power OUIDUI (both 4 ohms, Countries other than 110 W + 110 W 125 W + 125 W
channels driven simultaneously) 20 Hz - 20 kHz Scandinavian countries (THD 0.01%) (THD 0.01%)
Switzerland, Spain and (DIN: 130 W + 130 W) (DIN: 145 W + 145 W)
Portugal
6 ohms, Scandinavian countries 90 W + 90 W 100 W + 100 W
20 Hz - 20 kHz Switzerland, Spain and (THD 0.006%) (THD 0.006%) ;
Portugal (DIN:105W+105 W) (DIN:1tOW+110 W)
8 ohms. Countries other than 85 W + 85 W 95 W + 95 W
20 Hz - 20 kHz Scandinavian countries (THD 0.004%) (THD 0.004%)
Switzerland, Spain and (DIN: 95 W + 95 W) (DIN, 105 W + 105 W)
Portugal
Scandinavian countries, 80 W + 80 W 85 W + 85 W
Switzerland. Spain and (THD 0.004%) (THD 0.004%)
Portugal (DIN: 90 W + 90 W) (DIN: 95 W + 95 W)

Power band width (lHF)

8 ohms, THD 0.02%

10 Hz- 100 kHz at45W

10 HZIOO kHz at 45W

Dynamic headroom (78 lHF) 4 ohms 2 dB 2 dB

8 ohms 1.2 dB 12 08
Total harmonic distortion 8 ohms. at 10 watt output 0.005% 0.005%
lniermodulalion (IM) distortion 4 ohms_ at rated output 0.008% 0,008%
60Hz:7kHZ=4:1

6 ohms. at rated output 0.006% 0.006%

8 ohms, at rated output 0.004% 0.004%
Damping lactor 8 ohms, at 1 kHz 100 100

-continued on next page-

INTEGRATED STEREO AMPLIFIER
ONY;
