Sony ta f 511 service manual

This is the 18 pages manual for sony ta f 511 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

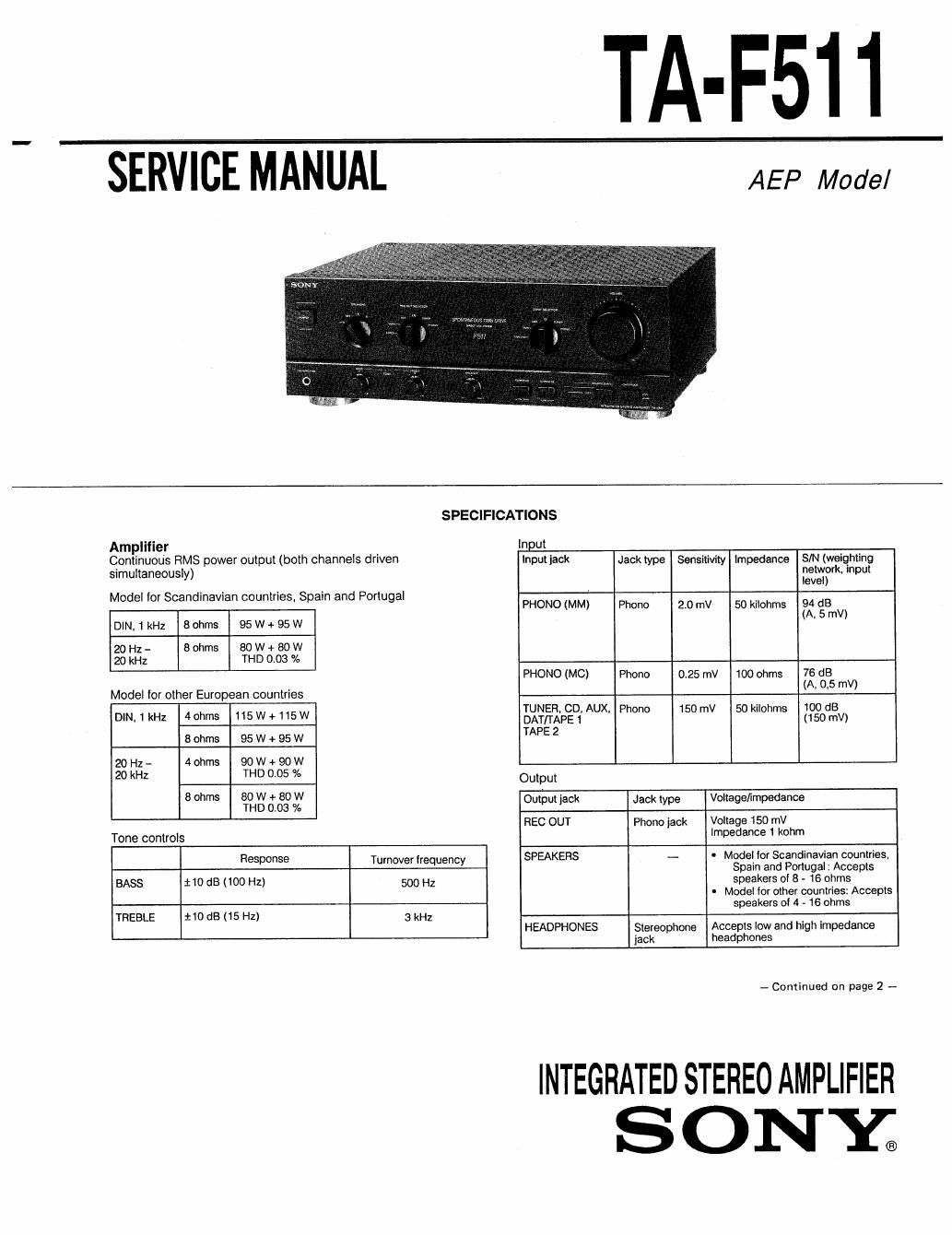

Page: 1 / 18
sony ta f 511 service manual

Extracted text from sony ta f 511 service manual (Ocr-read)


Page 2

Loudness (Attenuation 30 dB)
+6 dB (100 HZ)/+3 dB (10 kHz)
Subsonic filter 6 dB/octave, attenuation below 15 Hz
Intermodulation (IM) distortion (60 Hz : 7 kHz = 4:1)
Less than 0.008 % at rated output
PHONO: RIAA equalization curve
10.5 dB

TUNER, CD. AUX, TAPE 1, TAPE 2/

DAT: 7 Hz - 100 kHz 13 dB
Residual noise Less than 170 pV (network A)
Damping factor 70 (8 ohms, 1 kHz)
Total harmonic distortion Less than 0.008 % at 10 W output

(8 ohms, 20 Hz - 20 kHz)

Frequency response

General

System Preamplifier: Low-noise, high-gain
equalizer amplifier

Power amplifier: Pure-complementary
SEPP OCL power amplifier with all
stages directly coupled

Models for Continental European
countries: 220 V - 230 V AC, 50 Hz

Power requirements

Power consumption

Scandinavian countries, Spain 200 W

and Portugal

Other countries 240 W

Dimensions Approx. 430 x 150 x 375 mm (w/h/d)
(17 x 6 x 14 7/,I inches)

Mass Approx. 10] kg (23 lb 10 oz)

Design and specifications are subject to change without notice.

Note
This appliance conforms with EEC Directive 87/308IEEC regarding
interference suppression.

TABLE OF CONTENTS

Section Title Page

Specifications ............................................................... 1
1. GENERAL
l»1. Pans Identification -

2. DISASSEMBLY -~

3. ELECTRICAL ADJUSTMENTS-

4. DIAGRAMS
4-1, Circuit Boards Location-N
4-2. Printed Wiring Boards -
4,3 Schematic Diagram ........................................... 13

5. EXPLODED VIEWS
5.1. Front Panel Assembly -
5-2. Chassis Assembly ~-


6. ELECTRICAL PARTS LISTw

MODEL lDENTlFICATION
(Specification Label)

SONYQ

INTEGRATED STEREO AMPLIFIER

MODEL NO.

TA-F51 1

AE1, G model : AC 220-230V ~50 / GOHZ 240W
AE2 model 2 AC 220-230V ~50 / GOHZ 200W

AE2 : Model for Scandinavian countries, Spain and
Portugal.
AEl : Model for other European countries,
G : German

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK & ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-

LISHED BY SONY.
