sony ta f 500 es service manual

Extracted text from sony ta f 500 es service manual (Ocr-read)

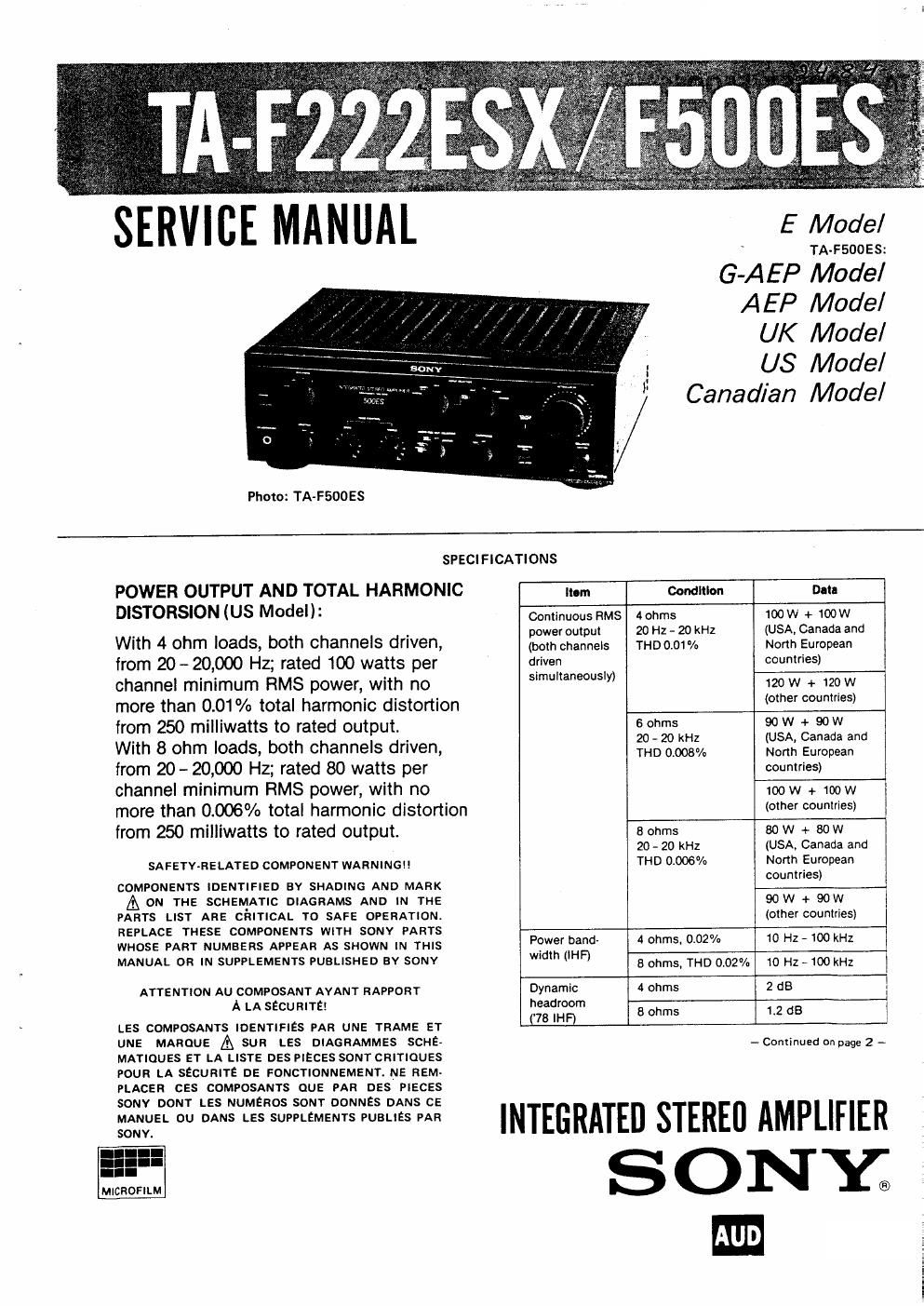

Page 1

Photo: TA-FSOOES

A

G-AEP

E Model

TA-FSOOES:

Model
EP Model

UK Model
US Model
Canadian Model

SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DISTORSION (US Model):

With 4 ohm loads, both channels driven,
from 20-20000 Hz; rated 100 watts per
channel minimum RMS power, with no
more than 0.01% total harmonic distortion
from 250 milliwatts to rated output.

With 8 ohm loads, both channels driven,
from 20 - 20,000 Hz; rated 80 watts per
channel minimum RMS power, with no
more than 0.006% total harmonic distortion
from 250 milliwatts to rated output.

SAFETYvRE LATED COMPONENT WARNING! !

COMPONENTS IDENTIFIED BY SHADING AND MARK

A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CPITICAL TO SAFE OPERATION
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MAROUE A SUR LES DIAGRAMMES SCHE-
MATIOUES ET LA LISTE DES PIECES SONT CRITIOUES
POUR LA SECURITE DE FONCTIONNEMENT. NE REM-
PLACER CES COMPOSANTS OUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE
MANUEL OU DANS LES SUPPLEMENTS PUBLIES PAR

SONV.

MICHOFILM

ltom Gondltlon Data
Continuous RMS 4 ohms 100 W + wow
power output 20 Hz - 20 kHz (USA, Canada and
(both channels THD 0.01 5A» North European
driven countries)
sxmultaneously) 120 W + 120 W
(other countries)
6 ohms 90 W + 90 w
20 - 20 kHz (USA, Canada and
THD 0.008% North European
countries)
100 W + 100 W
(other countries)
8 ohms 80 W + 80 W
20 - 20 kHz (USA. Canada and
THD 0006°/o North European
countries)
90 W + 90 W
(other countries)
Power band 4 ohms, 0.02% 10 Hz a 100 kHz
w'dm (NF) 8 ohms, THD 0.02% 10 Hz ~ 100 kHz
Dynamic 4 ohms 2 dB
headroom
('78 IHF) 8 ohms 1.2 dB

- Continued on page 2 -

INTEGRATED STEREO AMPLIFIER
SONY; :
