sony ta f 45

Extracted text from sony ta f 45 (Ocr-read)

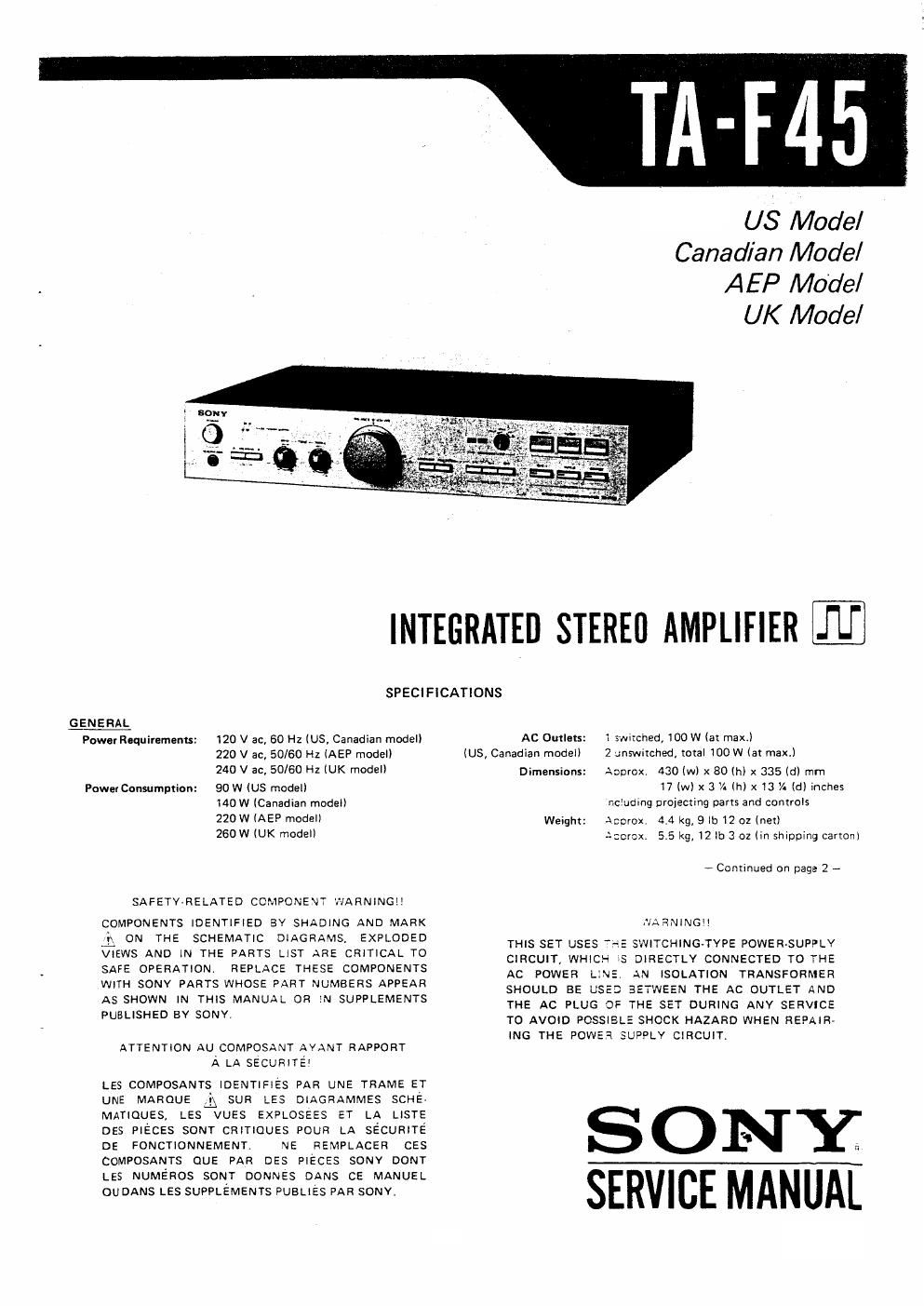

Page 1

US Model
Canadian Model
AEP Model
UK Model

INTEGRATED STEREO AMPLIFIER

SPECIFICATIONS

GENERAL
Power Raquiramems: 120 V ac, 60 Hz (US, Canadian model)
220 V ac, 50/60 HZ IAEP model)
240 V ac, 50/60 Hz (UK model)
Power Consumption: 90W (US model)
140 W (Canadian model)
220 W IAEP model)
260W (UK model)

SAFETVPELATED COMPONENT WARNINGI!

COMPONENTS IDENTIFIED BY SHADING AND MARK
l\ ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL. OR IN SUPPLEMENTS
PUBLISHED BV SONYV

ATTENTION Au COMPOSANT AYANT RAPPORT
A LA secuansv

LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MAFIQUE A sun LES DIAGRAMMES SCHE~
MATIQUES, LES qus EXPLOSEES ET LA LISTE
DES PIECES SDNT CRITIQUES POUR LA sécuRvTé
DE FONCTIONNEMENT, NE REMPLACER CES
COMPOSANTS QUE PAR DES PIECES SONY DONT
LES NUMEROS som DONNES DANS CE MANUEL
ou DANS LES SUPPLEMENTS Pusués PAR somv.

AC Outlets: I switched, I00 W (at max.)

(US, Canadian model) 2 .mswixched, total 100W (at maxJ

Dlmensions: Aapmx. 430 (w) x 80 (h) x 335 IdI mm
17 (w) x 3 V: (h)x13 V- (d) Inches
ncfuding projecting parts and controls
Weight: Ascrox. 4.4 kg,9)b12 oz Inex)
:crox, 5,5 kg,12|b 3 oz (in shipping carton)

- Continued on page 2 --

WARNING

THIS SET USES r-E SWITCHING-TYPE POWER-SUPPLY
CIRCUIT, WHICH DIRECTLY CONNECTED TO THE
AC POWER Lil AN ISOLATION TRANSFORMER
SHOULD BE USEZJ BETWEEN THE AC OUTLET AND
THE AC PLUG OF THE SET DURING ANY SERVICE
TO AVOID POSSIBLE SHOCK HAZARD WHEN REPAlR-
ING THE POWER SUPPLY CIRCUIT.

SONY:
SERVICE MANUAL
