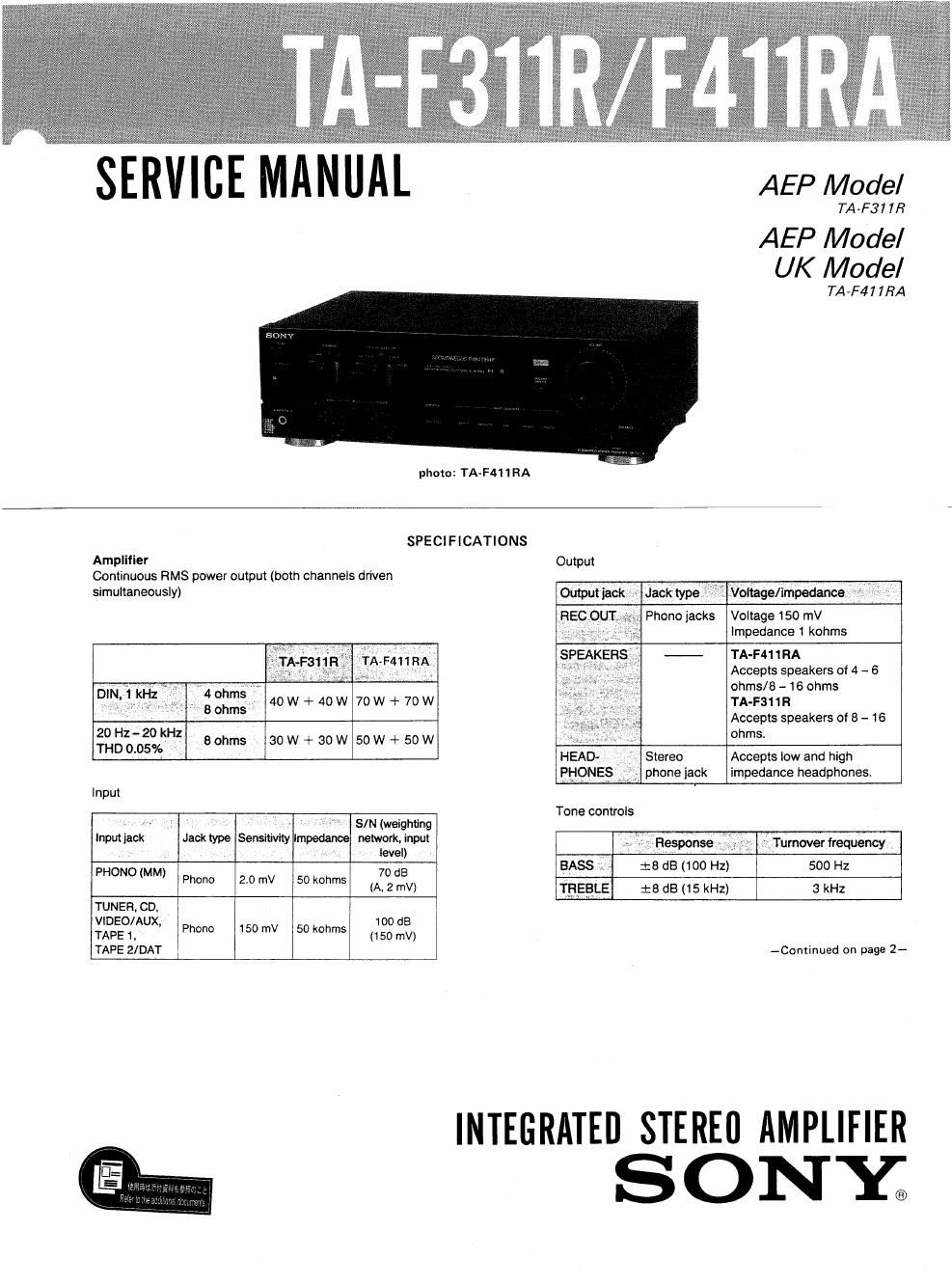

Sony ta f 411 ra service manual
This is the 18 pages manual for sony ta f 411 ra service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ta f 411 ra service manual (Ocr-read)
Page 2
TA-F311R/F411RA
Harmonic distortion
TA-F311R/F41 1 RA:
Less than 005% at rated output
Intermodulation (IM) distortion (60 Hz:7 kHz = 4:1)
Less than 0.05% at rated ontpul
Frequency response
PHONO: FIIAA equalization curve
$0.5 dB
TUNER, CD, VIDEO/AUX, TAPE 1,
TAPE 2/DAT: 7 Hz - 100 kHz :3 dB
Less than 170 IN (network A)
40 (8 ohms, 1 kHz)
Residual noise
Damping factor
General
System Preamplifier. Low-noise. high-gain
equalizer amplifier 7
Power amplifier: Pure-complementary
SEPP OCL power amplifier with all
stages directly coupled
AEP model: 220V AC, 50Hz
UK model: 240V AC, 50Hz
AEP model
TA-F311R: 90 W
TA-F41 1 RA: 150 W
UK model
TA-F411FIA: 380 W
Power requirements
Power consumption
Dimensions Approx. 430 X 135 X 315 mm (w/h/d)
(17 X 53/. X 12'/: inches)
Weight TA-F311Fl: Approx. 59 kg (13 lb 1 oz)
TA-F411FIA: Approx. 7.4 kg
(16 lb 5 02)
Accessories Remote commander RMASS10 (1)
Sony SUM-3 (NS) batteries (2)
Design and specifications subject to change without notice.
Note
This appliance conforms with EEC Directive. 87/308/EEC
regarding interference suppression.
SAFETY-RELATED COMPONENT WARNINGI!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
MODEL IDENTIFICATION
-Specification Label-
SONY?)
INTEGRATED STEREO AMPLIFIER
AC 220V 50/60Hz
MODEL no. TA-F311R
SERIAL N0.
MADE IN JAPAN
SONXG) mom N0.TA-F411FIA
INTEGRATED STEREO AMPLIFIER
L\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
III
SERIAL N0.
MADE IN JAPAN
AEP Model: AC: 220 V ~ 50/60 Hz
UK Model: AC: 240 V ~ 50/60 Hz
ATTENTION AU COMPOSANT AVANT RAPPORT
A LA SECURITEI
LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A
sun LEs DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES PIECES som CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACEFI CES COM-
POSANTS QUE PAR oEs PIEcEs SONY DONT LEs
NUMERos sow-r DONNES DANS CE MANUEL ou
DANS LEs SUPPLEMENTS PUBLIEs PAR souv.
