sony ta f 4 a service manual

Extracted text from sony ta f 4 a service manual (Ocr-read)

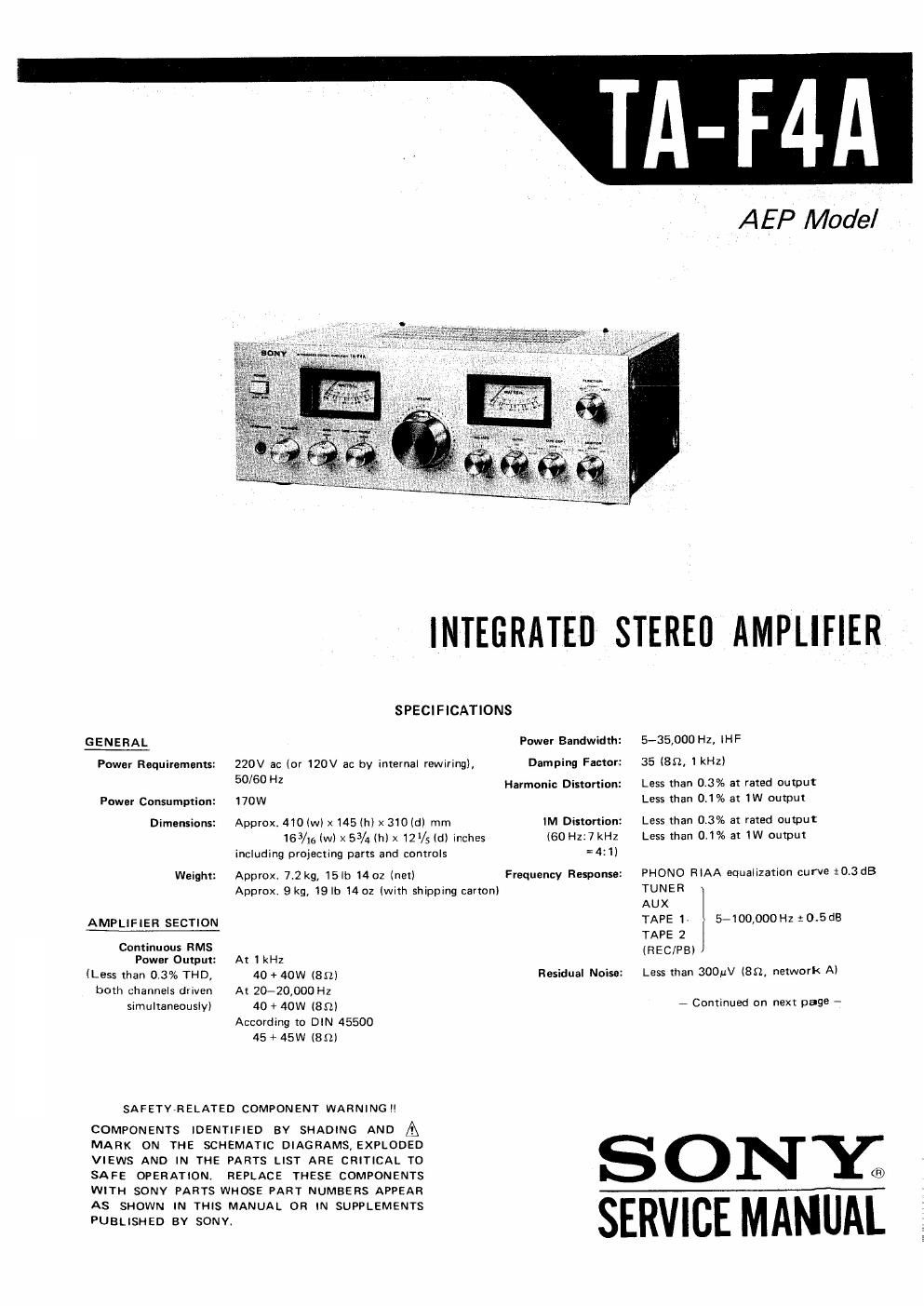

Page 1

GENERAL

Power Requirements:

Power Consumption:

Dimensions:

Weight:

AMPLIFIER SECTION

Continuous RMS
Power Output:

(Less than 0.3% THD,
both channels dl iven
simultaneously)

AEP Model

INTEGRATED STEREO AMPLIFIER

SPECIFICATIONS

220V ac (or 120V as by internal rewiring),
50/60 Hz

170W

Approx. 410M) x 14501) x 310 (d) mm
163/16 (w) X 53/40:) x 12/5(dl inches
including projecting parts and controls

Approx. 72 kg, 15lb 1402 {netl

Approx. 9kg, 19 lb 14 oz (with shipping cartonl

At 1 kHz
40 + 40W (Bill
At 20-20,000 Hz
40 + 40W (Sal
Accmding to DIN 45500
45 + 45W (89)

SAFETVVRELATED COMPONENT WARNING I!

COMPONENTS IDENTIFIED BY SHADING AND A
MARK ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TD

SA FE OPERATION.

REPLACE THESE COMPONENTS

WITH SONV PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY.

Power Bandwidth:
Damping Factor:

Harmonic Distortion:

IM Distartion:

(60HZI7kHZ
=4:I)

Frequency Response:

Residual Noise:

5-35,000 Hz, IHF
35 (89., 1 kHz)

Less than 0.3% at rated output
Less than (11% at 1W output

Less than 0.3% at rated output
Less then Oll% at 1W output

PHONO RlAA equalization curve 20.3413
TUNER
AUX l
TAPE 1-
TAPE 2 I
(REC/PB)

Less man 300pv (sz, network Al

5-100,000Hz 1 05:13

v Continued on next page -

SONE

SERVICE MANUAL
