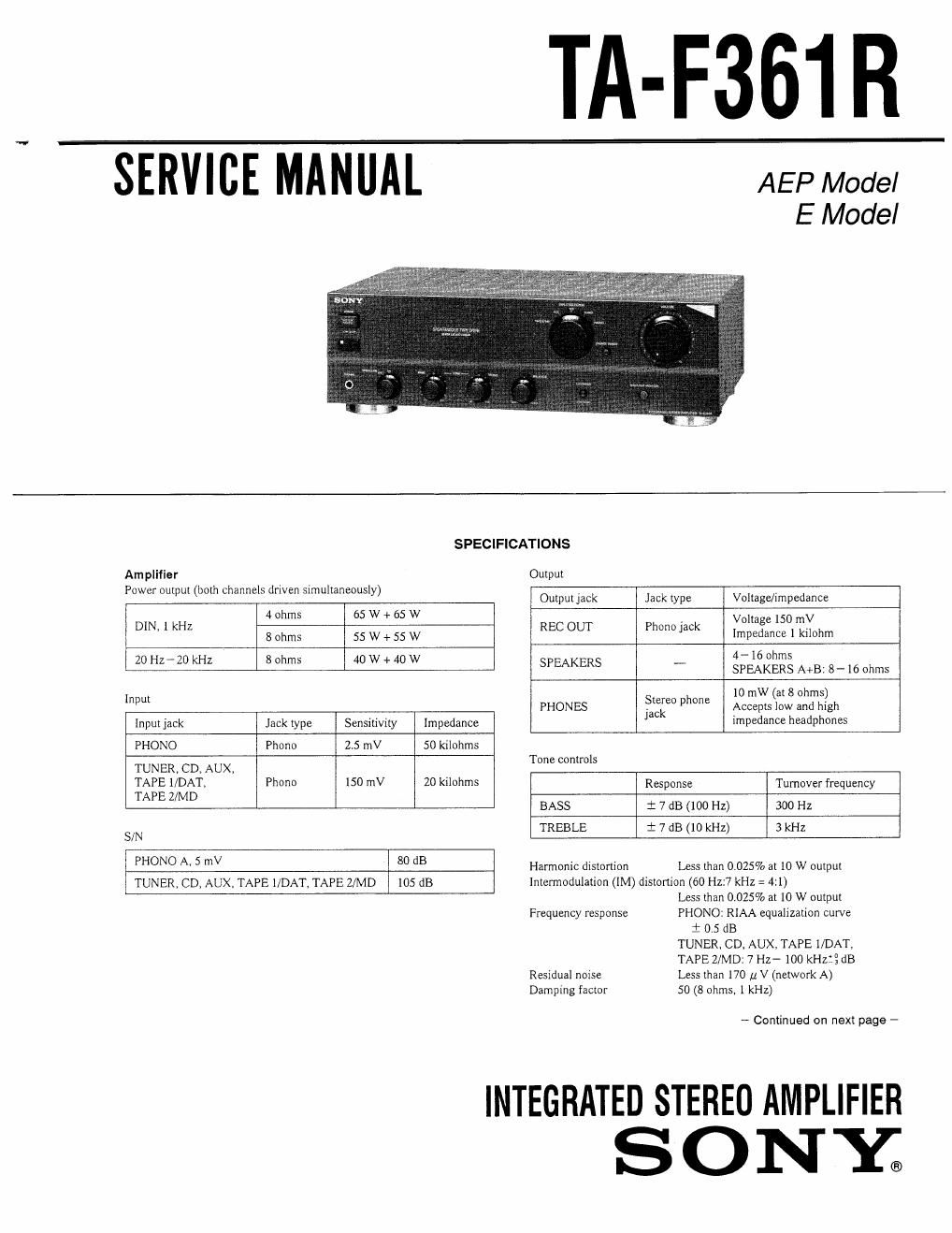

Page: 1 / 18
sony ta f 361 r service manual

Extracted text from sony ta f 361 r service manual (Ocr-read)


Page 2

General
System Preamplifier: Low-noise, equalizer
amplifier
Power amplifier: Puro»complementary
SEPP OCL power amplifier with all
stages directly coupled
Power requirements AEP, German model'
220 v 230 V AC. 50/60 Hz
E model:
120 V, 220 V or 240 V AC adjustable,
50/60 Hz
Power consumption loo W
Dimensions Approx. 430 X 135 X 315 mm (w/h/d)
(17 X 53/; X 12% inches)
Mass Approx. 5.6 kg (12 lb 6 oz)
Supplied accessories Remote commander RM>S311 (1)

Sony SUM13 (NS) batteries (2)
The above values are measured at 230 V AC.

Design and specifications are subject to change without notice.

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DO1'I'ED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BV SONY.

TABLE OF CONTENTS

Section 1% Page
Specifications --------------------------------- 1
1. GENERAL

Location of Controls ---------------------- 3
2. ELECTRICAL ADJUSTMENT ----------- 4
3. DIAGRAMS
34. IC Pin Function Description ---------------- 5
3-2. Printed Wiring Boards - Panel Section - 6
3-3. Printed Wiring Boards * Main Section - - - 9
3.4. Schematic Diagram ~~~~~~~~~~~~~~~~~~~~~~~ l3
4. EXPLODED VIEWS ------------------- 17
5. ELECTRICAL PARTS LIST ------------ 19
