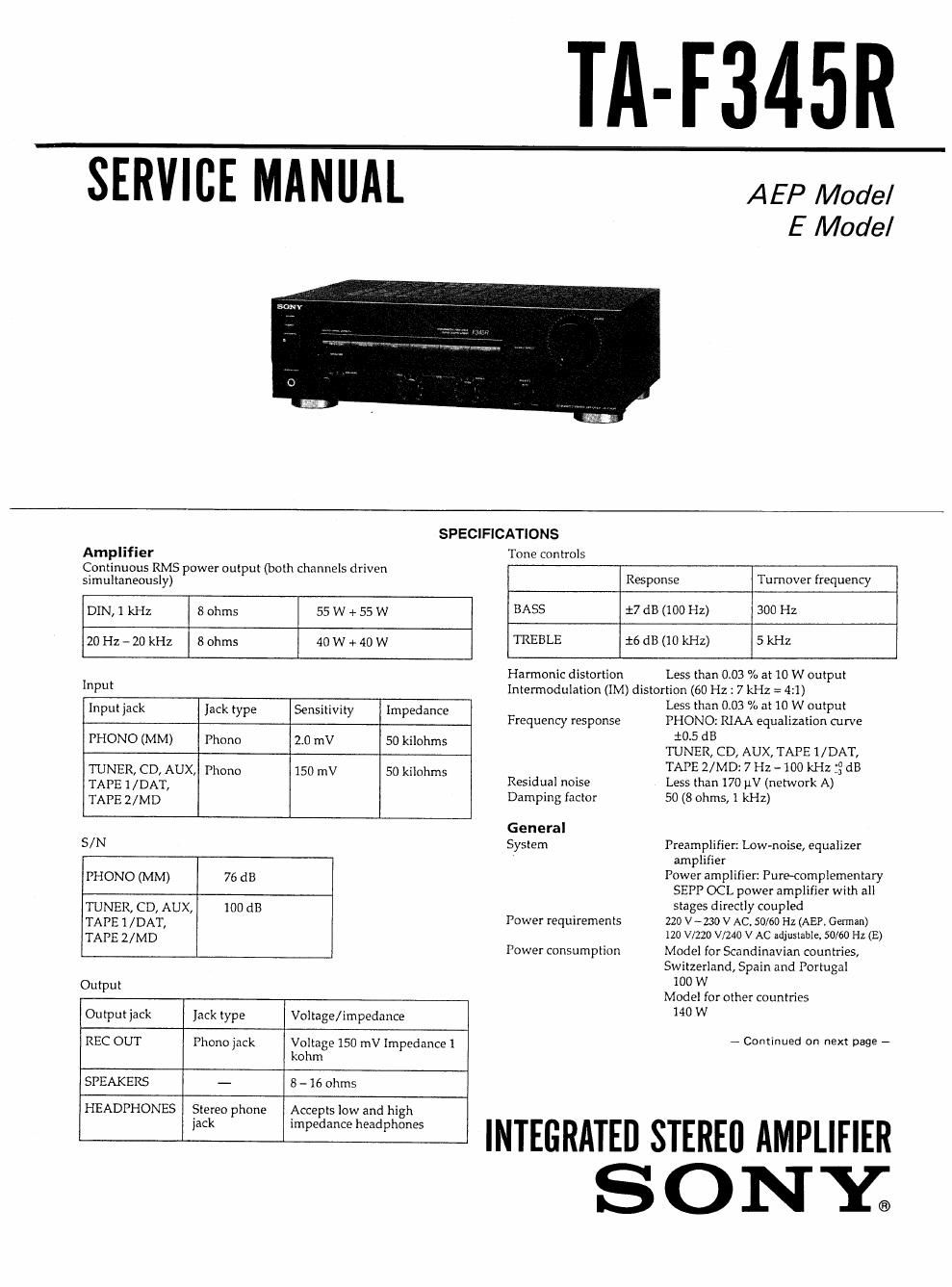

Page: 1 / 14
sony ta f 345 service manual

Extracted text from sony ta f 345 service manual (Ocr-read)


Page 2

Dimensions Approx. 430 x135 x 315 mm (w/h/d)
(17 x 5 3/. x 12 1/2 inches)
Mass Approx. 6.4 kg (14 lb 2 oz)

Supplied accessories Remote commander RM-5311 (1)

Sony SUM-3 (NS) batteries (2)

The above values are measured at BO V AC.

Design and specifications are subject to change without notice.

TAB LE OF CONTENTS

Section Title Page
Specifications --------------------------- 1
Model Identification 2
1. GENERAL

Location of Controls ---------------------- 3
2. ELECTRICAL ADJUSTMENT ~~~~~~~~~~~ 4

3. DIAGRAMS

3-1. Block Diagram -------- 5
3-2. Primed Wiring Boards ~ 8
3-3. Schematic Diagram - - A - . . 13
34, IC702 Function Controller (M50761-291P) - - ~ 16
4. EXPLODED VIEWS -------------------- l7
5. ELECTRICAL PARTS LIST ------------ 19

MODEL IDENTIFICATION
- Specification Label Printed on Back Panel -

SONYo MODEL NO. TA-F345R

AEP, German model: AC 220-230 V ~50/60 Hz

E model: AC 120/220/240 V ~50/60 Hz
Note:
There are two type of AEP models which are depend
on countries.

AEPZ model: Model for Scandinavian countries,
Switzerland, Spain and Portugal
AEPI model: Model for other European countries

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CR|T|CAL TD SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
