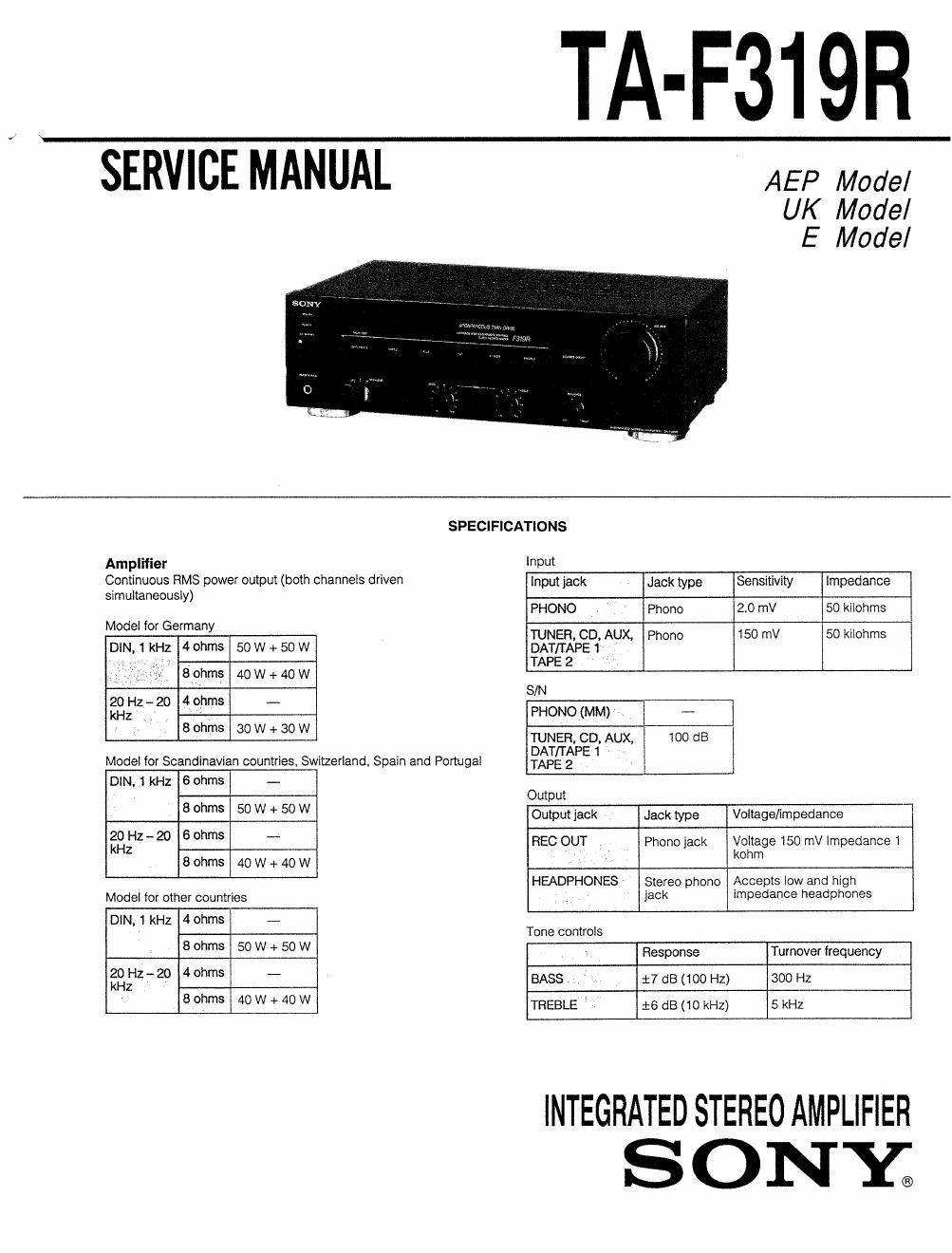

TA-F319R

Harmonic distortion Less than 0.03% at 10 W output
Intermodulation (lM) distortion (60 H2 : 7 kHz = 4:1)

Less than 003% at 10 W output
Frequency response
PHONO: RlAA equalization curve

:05 dB

TUNER, CD, AUX. DATITAPE 1,
TAPE 2: 7 Hz- 100 kHz 3 dB
Less than 170 uV (network A)
50 (8 ohms. 1 kHz)

Residual noise
Damping factor

General

System Preamplifier: Low-noise. equalizer
amplifier

Power amplifier: Pure-complementary
SEPP OCL power amplifier with all
stages directly coupled

UK model : 240 V AC. 50/60 Hz

AEP. Germany model :
220 V - 230 V AC. 50/60 Hz

E model: 120 V. 220 V or 240 V AC
adjustable. 50/60 Hz

Power consumption 130 W

Dimensions Approx, 430 x 135 x 315 mm (w/h/d)

(17 x 5 3/8 x 12 lzinches)
Weight Approx 6.3 kg (13 lb 14 oz)
Supplied accessories Remote commander RM~8311 (1)
Sony SUM-3 (NS) batteries (2)

Power requirements

The above values are measured at 230 V AC. (Models for European
countries)

Design and specifications are subject to change without notice,
Note

This appliance conforms with EEC Directive 87/308/EEC regarding
interference suppression.

TABLE OF CONTENTS

Section Title Page

Specifications ~~~~~~~~
Model Identification
1. GENERAL ............................................................. 3

2. ELECTRICAL ADJUSTMENTS ------------------------------- 4
3. DIAGRAMS

3-1. BlockDiagram ~~~~~~~~~~~
3-2. Circuit Boards Location
33. Printed Wiring Boards
3-4t Schematic Diagram ~~~~~~
3-5. IC Block Diagram ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 19


4. EXPLODED VIEWS

41. Front Panel Section ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 20
4.2 Chassis Section ................................................ 21
5. ELECTRICAL PARTS LIST ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 22

MODEL IDENTIFICATION
- Specification Label Printed on Back Panel -

SON'Y.

WW

MODEL NO. TA-F319R

l

AEP. Germany Model : AC : 220 - 230V ~ 50/60Hz
UK Model : AC : 240V ~ SO/GOHz
E Model: AC: 120/220/24ov ~ 50/60Hz

Note:
There are two type of AEP models which are depend
on countries.
AEP2 model : Model for Scandinavian countries,
Switzerland, Spain and Portugal
AEPI model 2 Model for other European countries

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS lIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
