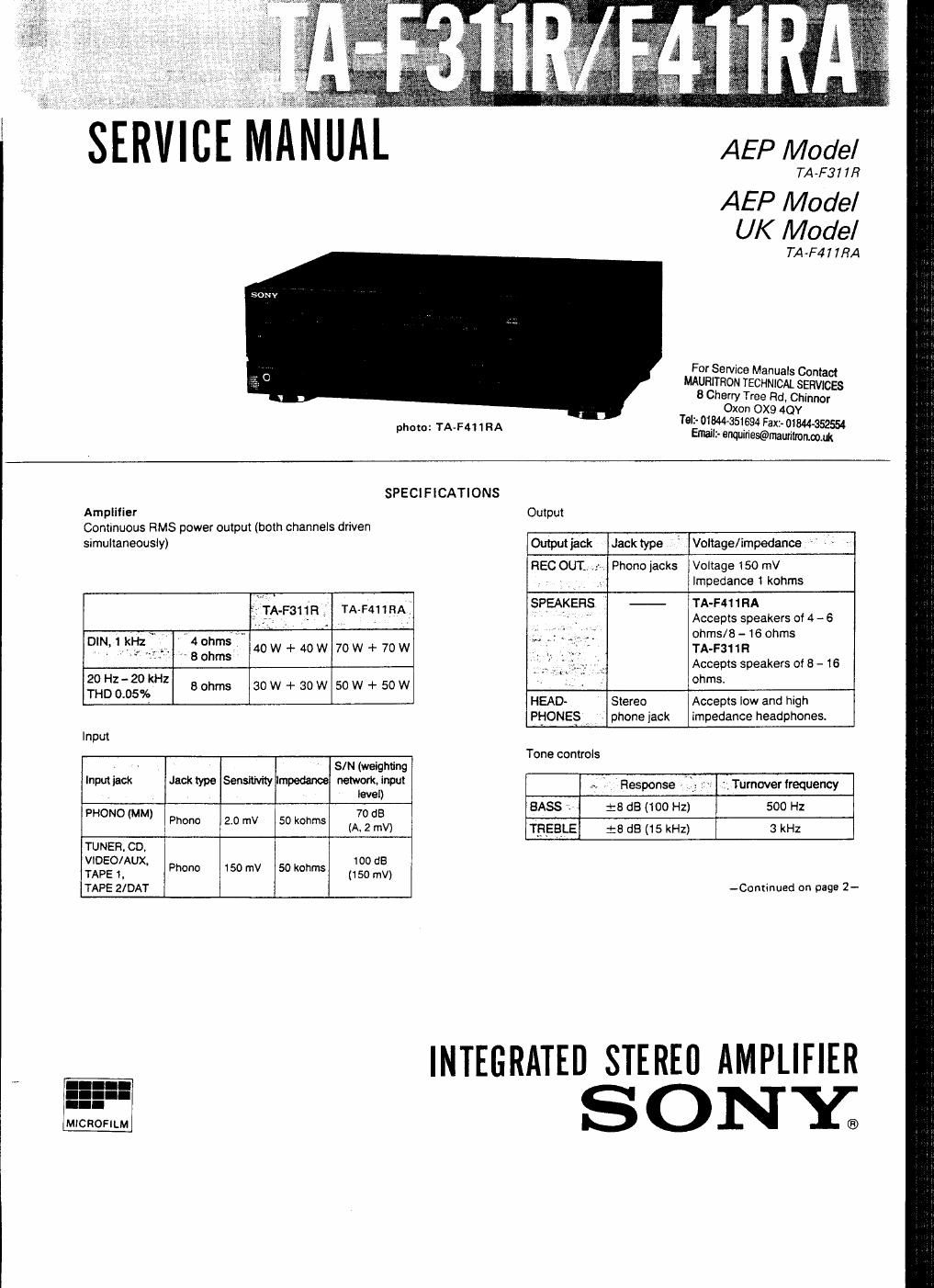

Sony ta f 311r service manual

Page 2

TA-F311 FI/F411 RA

Harmonic distortion
TA-F311R/F411RA:
Less than 0.05% at rated output
lntermodulation (IM) distortion (60 Hz:7 kHz = 4:1)
Less than 005% at rated output
Frequency response
PHONO: RIAA equalization curve
10.5 dB
TUNEFI. CD, VIDEO/AUX, TAPE 1,
TAPE 2/DAT: 7 Hz- 100 kHz 1-3 dB
Less than 170 uv (network A)
40 (8 ohms. 1 kHz)

Residual noise
Damping factor

General
System Preamplifier: Lowvnoise, high-gain
equalizer amplifier
Power amplifier: Pure-complementary
SEPP OCL power amplifier with all
stages directly coupled
Power requirements AEP model: 220V AC, 50Hz
UK model: 240V AC, 50Hz
Power consumption AEP model
TA-F311R: 90 W
TA-F411RA; 150 W
UK model
TAvF411RA: 380 W

Dimensions Approx 430 X 135 X 315 mm (w/h/d)
(17 X 53/. X 12/:inches)
Weight TA-F31 1 R: Approx. 5.9 kg (13 lb 1 oz)
TA-F411FIA: Approx. 714 kg
(16 lb 5 oz)
Accessories Remote commander FlM-Sa10 (1)

Sony SUM-3 (NS) batteries (2)
Design and specifications subject to change without notice

Note
This appliance conforms with EEC Directive, 87/308/ EEC
regarding interference suppression

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK & OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

MODE L IDENTIFICATION
-Specification Label-

r SONY®

INTEGRATED STEREO AMPLIFIER
AC 220V SO/GOHZ

MODEL N0. TA-F311R

SERIAL Not
MADE IN JAPAN

SONY® moon Mo.TA-F411RA

INTEGRATED STEREO AMPLIFIER
t\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\<

D

SERIAL NO.

MADE IN JAPAN

AEP Model: AC: 220 V ~ 50/60 Hz
UK Model: AC: 240 V ~ 50/60 Hz

For Service Manuals Contact
MAURITRON TECHNICAL SERVICES
8 Cherry Tree Rd, 0031mm

Oxon OX9 4
Tel:- 018444151694 Fax: 01344-352554
Email:~ anqulriss@mauntmn.oo.ilt

ATTENTION AUCOMPOSANT AYANT RAPPORT
A LA SECURITEI

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A
sun LES DIAGRAMMES scuéMAnouEs ET LA LISTE
DES PIECES som camouEs POUR LA sécURITé
DE FONCTIONNEMENT. NE REMPLACEH css com.
POSANTS QUE PAR DES PIECES SONY DONT LES
NUMEROS sour DONNés DANS c5 MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
