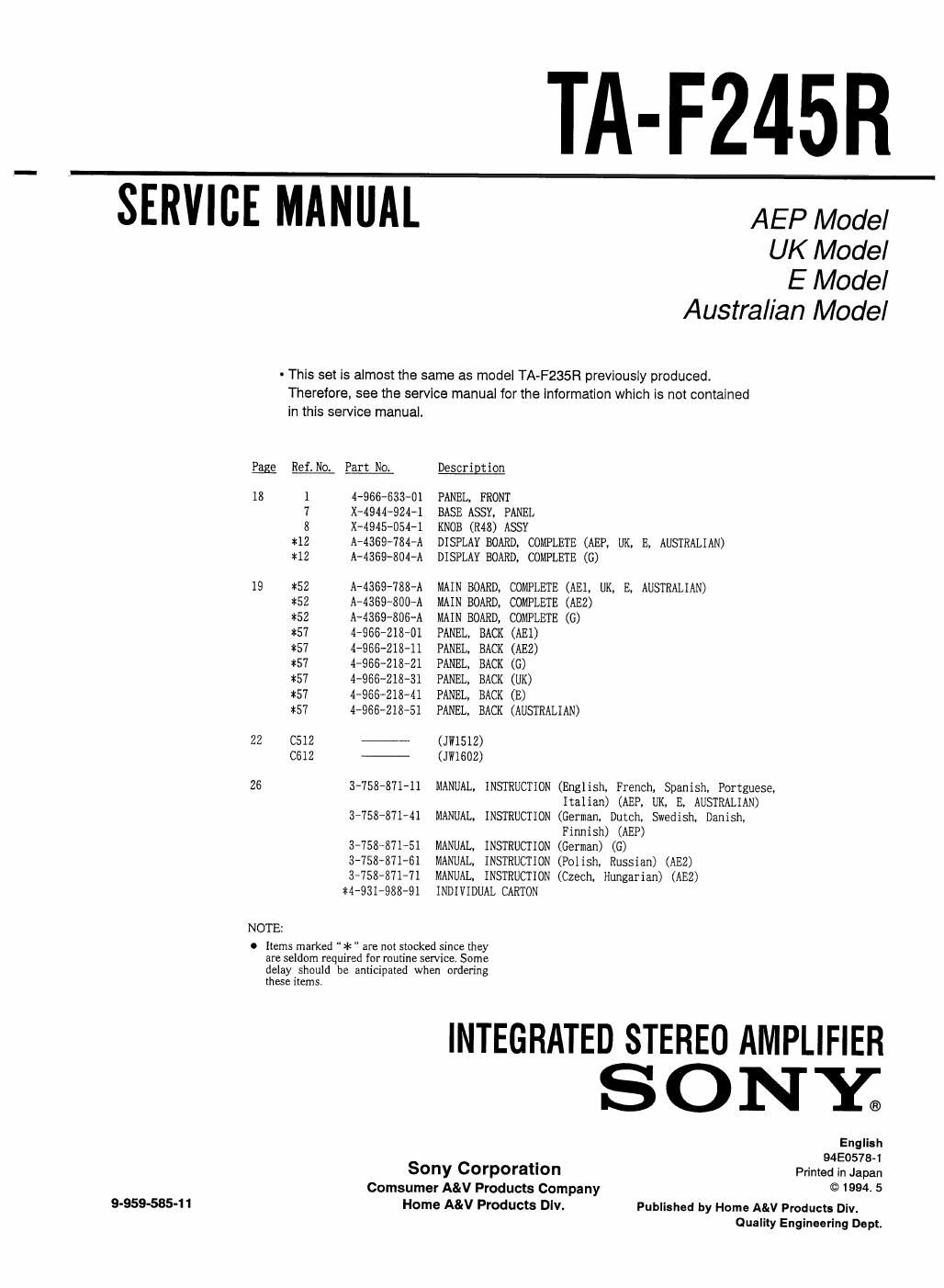

Page 1

TA-F245R

SERVICE MANUAL AEPModeI

UK Model
E Model
Australian Model

- This set is almost the same as model TA-F235R previously produced.
Therefore, see the service manual for the information which is not contained
in this service manual.

Egg Ref.No. Part No. Description
18 1 4-966-633~01 PANEL, FRONT
7 X-4944-924v1 BASE ASSY. PANEL
8 X-4945-054-1 KNOB (R48) ASSY
#12 A-4369-784-A DISPLAY BOARD. COMPLETE (AEP, UK, E, AUSTRALIAN)
*12 A-4369-804-A DISPLAY BOARD. COMPLETE (G)
19 *52 A-4369-788-A MAIN BOARD. COMPLETE (AEl, UK, E, AUSTRALIAN)
*SZ A-4369-800-A MAIN BOARD, COMPLETE (AE2)
*SZ A~4369-806-A MAIN BOARD, COMPLETE (G)
#57 4*966-218-01 PANEL, BACK (AE1)
#57 4-966-218»11 PANEL, BACK (AE2)
*57 4-966-218-21 PANEL, BACK (G)
*57 47966-218-31 PANEL. BACK (UK)
*57 4-966v218-41 PANEL, BACK (E)
:57 4-966-218-51 PANEL, BACK (AUSTRALIAN)
22 C512 -~ (JWISIZ)
C612 - (JW1602)
26 3-758-871-11 MANUAL, INSTRUCTION (English, French, Spanish, Portguese,

Italian) (AEP, UK. E. AUSTRALIAN)
3*753-871-41 MANUAL, INSTRUCTION (German. Dutch. Swedish, Danish,
Finnish) (AEP)
3-758-871-51 MANUAL, INSTRUCTION (German) (G)
3-758'87I>51 MANUAL, INSTRUCTION (Polish. Russian) (AE2)
3458-87141 MANUAL, INSTRUCTION (Czech. Hungarian) (AE2)
*4931'988-91 INDIVIDUAL CARTON

NOTE:

0 Items marked >k " are not stocked eince they
are seldom required for routine serVIce Some
delay should be anticipated when ordering

INTEGRATED STEREO AMPLIFIER
S O N E

English
94E0578-1
Sony Corporation Primed in Japan
Comsumer A&V Products Company © 1994- 5
9-959-585-11 Horne ARIV Products Div. Published by Home A&V Products Dlv.

Quality Engineering Dept.
