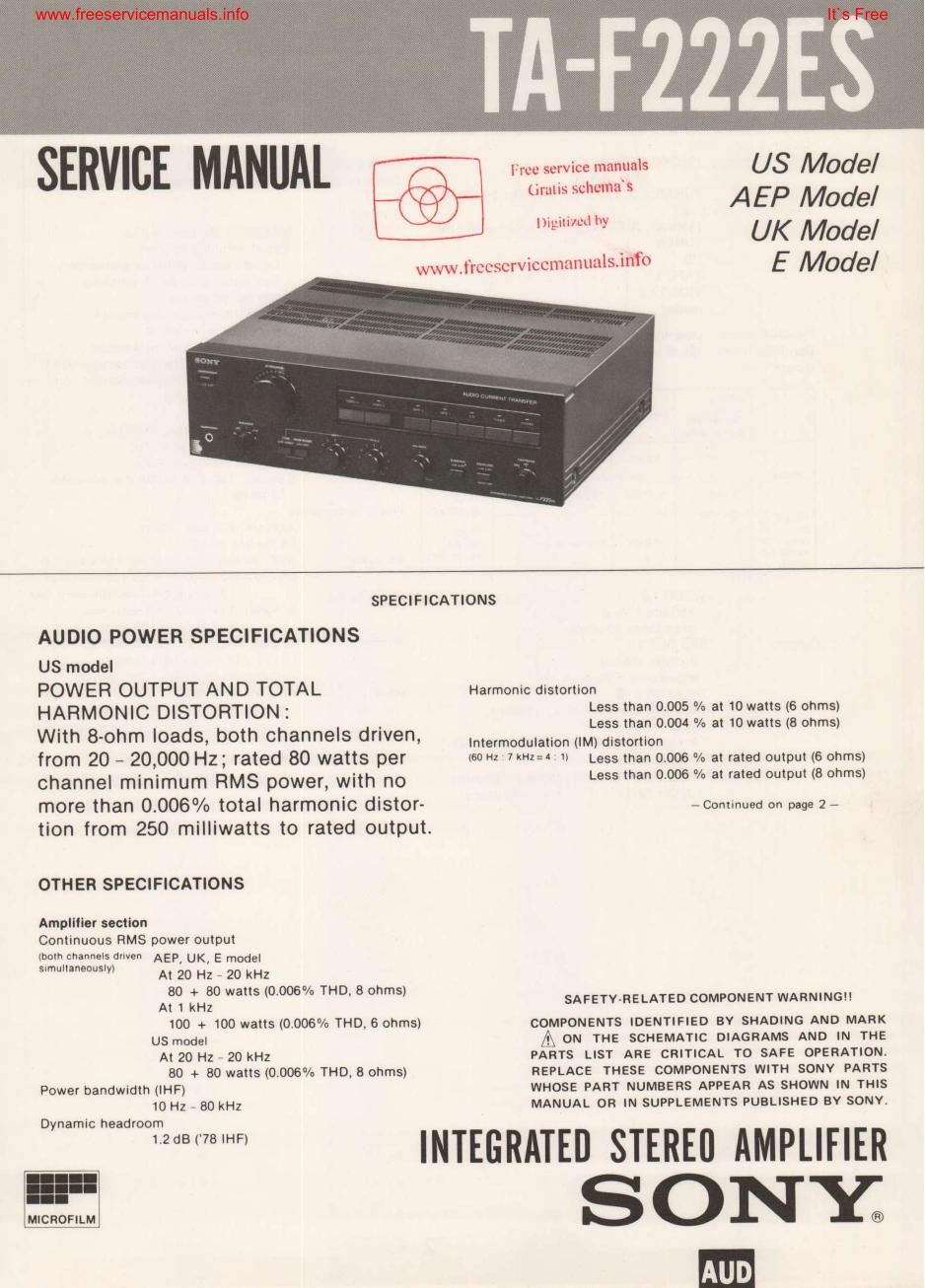

Page 1

TA-FZZZES

SERVICE MANUAL @ "rcgrjgifhggggus US Model

. .. AEP Model
luglutcd by UK Model

www.frccscrviccmnnualsjnfo E Mode]

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

US model

POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:

With 8-ohm loads, both channels driven,
from 20 - 20,000 Hz; rated 80 watts per
channel minimum RMS power, with no
more than 0.006% total harmonic distor-

tion from 250 milliwatts to rated output.

OTHER SPECIFICATIONS

AmpIIIIar section
Continuous RMS power output
(bolh channels drlven AEP' UK, E model
Simultaneously) At 20 Hz _ 20 kHz
80 + 80 watts (0009/: THD, 3 ohms)
At 1 kHz
100 + 100 watts (0.006% THD, 6 ohms)
US model
At 20 Hz - 20 kHz
80 + 80 watts (0.006% THD. 8 ohms)
Power bandwidth (IHF)
10 Hz 7 80 kHz
Dynamic headroom

Harmonic distortion
Less than 0.005 % at 10 watts (6 ohms)
Less than 0,004 % at 10 watts (8 ohms)

Intermoduiation (IM) distortion

(60 Hz 7 41:" 0 Less than 0.006 % at rated output 16 ohms)
Less than 0.006 In at rated output (8 ohms)

- Continued on page 2 -

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY SHADING AND MARK

& ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN lN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BV SONY.

INTEGRATED STEREU AMPLIFIER

SONY.
