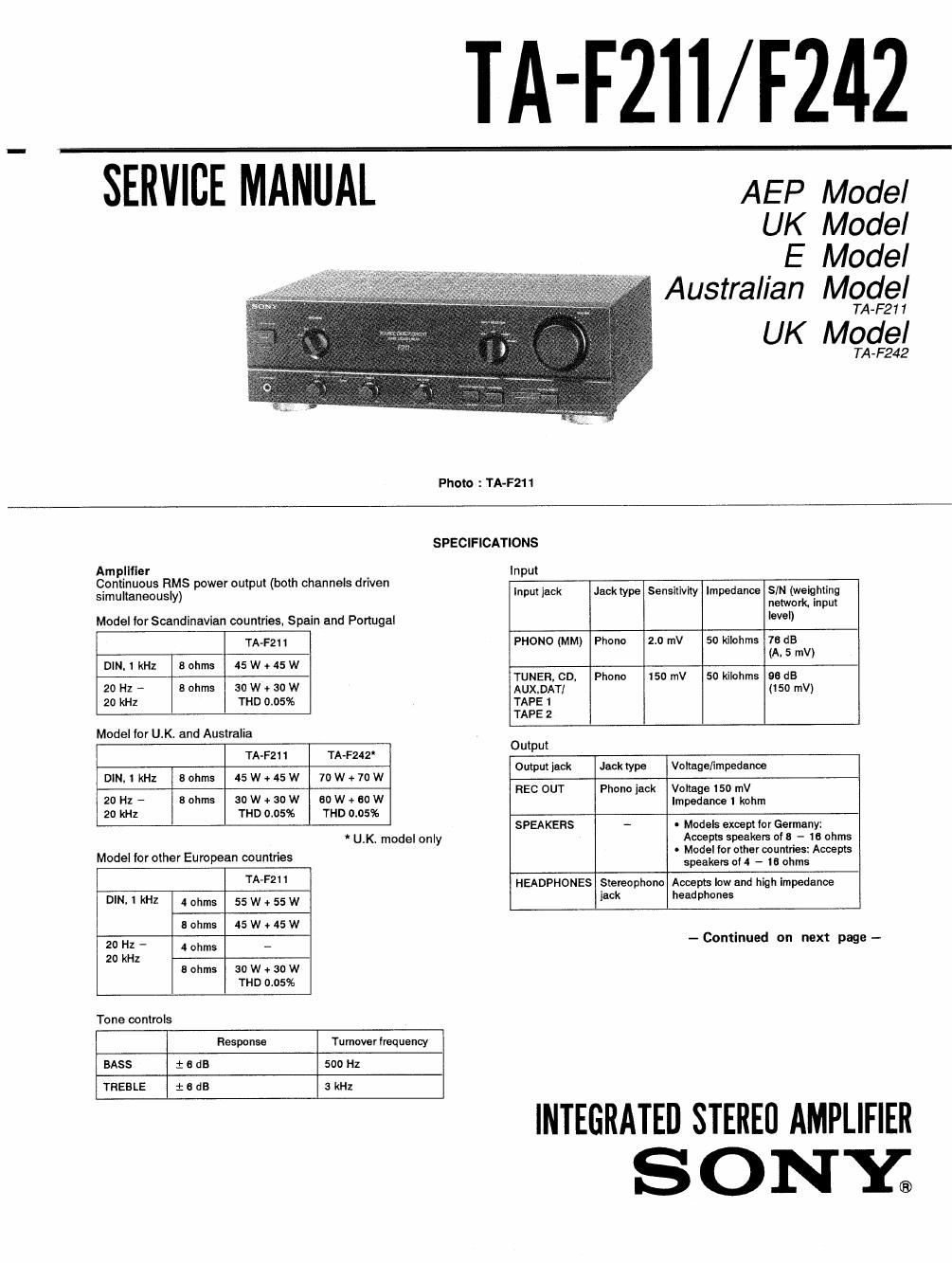

Sony ta f 211 service manual
This is the 18 pages manual for sony ta f 211 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ta f 211 service manual (Ocr-read)
Page 2
Loudness (Attenuation 30 dB)
+6 dB (100 Hz)/+3 dB (10 kHz)
Subsonic filter 6 dB/octave, attenuation below 15 Hz
Intermodulation (IM) distortion (60 Hz: 7 kHz=4:1)
Less than 0.05% at rated output
Frequency response PHONCEBFIIAA equalization curve
1 0.5
TUNER, CD, AUX. TAPE 1. TAPE 2/
DAT: 7 Hz - 100 kHz i 3 dB
Residual noise Less than 190 uV (network A)
Damping factor 40 (8 ohms, 1 kHz)
Total harmonic distortion
Less than 0.05% at to w output
(8 ohms, 20 Hz - 20 kHz)
General
System Preamplifier. Low-noise, high-gain
equalizer amplifier
Power amglifier: Pure-complementary
SEPP O L power amplifier with all
stages directly coupled
Power requirements Models for Continental European
countries: 220 V - 230 V AC. 50 Hz
Model for UK. and Australia:
240 V AC. 50 HZ
Models for other countries: 120 V,
220 V or 240 V AC adjustable, 50/
60 Hz
Power consumption
Models for TA-FZII
Scandinavian countries, Spain so W
and Portugal
Other countries 80 W
Dimentions Approx. 430 X 135 x 315 mm (w/h/d)
(17 x 5 3/9 x 12 lz inches)
Mass Approx. 6.2 kg (13 lb 11 oz)
For all ther countries except U.K. and Australia the above
values are measured at 230 V AC.
Design and specifications are subject to change without
notice.
Note
This appliance conform with EEC Directive 87/308/EEC
regarding interference suppression.
TABLE OF CONTENTS
§§§1ign Tit g mg
SECTION 1. GENERAL
Precautions
Pans Identifications .
SECTION 2. DISASSEMBLY
214 Front Panel (Base)
SECTIONS. ELECTRICALADJUSTMENT
Bias Current Adjusuneni
SECTION 4. DIAG RAMS
4»I. Circuit Boards Location
4»2. Semiconductor Lead Layouts
4-3. Block Diagram.
4-4. Printed Wiring Board
4-5. Schematic Diagram ..
4-6. IC Block Diagrams
SECTION 5. EXPLODED VIEWS
5-1. Front Panel Section
5-2. Chassis Section .,
SECTION 6. ELECTRICAL PARTS LIST ....................... 18
MODEL IDENTIFICATION
-Model Number Label--
TA~F21 i
TA-F242
SONY'o MODEL No.
INTEGRATED STEREO AMPLIFIER
WWW
AEP, Germany model : AC 220 - 230V, 50/60Hz, 80W
UK, Australian model :AC 240V, 50/60Hz
E model : AC 120/220/240V, 50/60Hz, 115W
SAFETY-RELATED COMPONENT WARNING]!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
