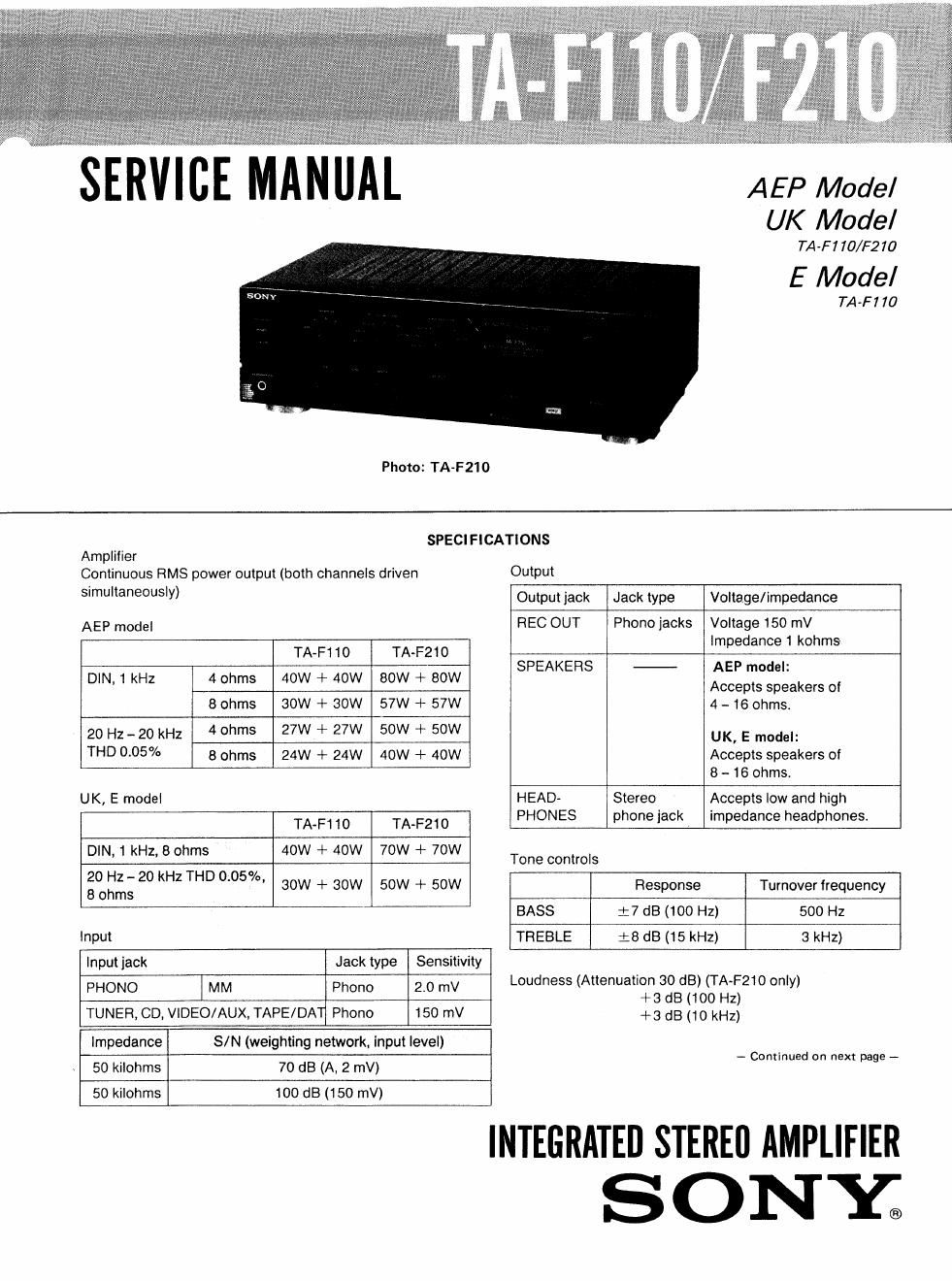

Page: 1 / 15
sony ta f 210 service manual

Extracted text from sony ta f 210 service manual (Ocr-read)


Page 2

TA-F110/F210

Harmonic distortion Less than 005% at rated output
lntermodulation (lM) distortion (60 Hz:7 kHz = 4:1)
Less than 0.05% at rated output
Frequency response
PHONO: FtlAA equalization curve
10.5 dB
TUNER, CD, VlDEO/AUX, TAPE1,
TAPEZ/DAT: 7 HZ - 100 kHz :3 dB
Less than 170 p.V (network A)
40 (8 ohms, 1 kHz)

Residual noise
Damping factor

General
System Preamplifier: Low-noise, high-gain
equalizer amplifier
Power amplifier: Pure-complementary
SEPP OCL power amplifier with all
stages directly coupled
Power requirements AEP model: 220 V AC, 50 Hz
UK model: 240 V AC, 50 Hz
E model: 120 V, 220 V or 240 V AC
adjustable, 50/60 Hz
Power consumption AEP model:
TA-Fl 10: 90W
TA-F210: 150W
UK model:
TA-F110: 160W
TA-F210: 260W

E model:
TA-F110: 70W
Dimensions Approx. 430 X 135 X 315 mm (w/h/d)
(17 X 53/. X 12 y/2inches)
Weight AEP model:

TA-F110: Approx. 5.7 kg (12 lb 9 oz)
TA-F210: Approx. 7.4 kg (16 lb 5 oz)
UK model:
TA-F110: Approx. 5.6 kg (12 lb 6 oz)
TA-F210: Approx. 6.8 kg (15 lb)
E model:
TA-F110: Approx. 5.6 kg (12 lb 6 02)

Design and specifications subject to change without notice.

SAFETY-R E LATED COMPONENT WARNING! !

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

MODEL IDENTIFICATION
- Specification Label -

SONYo

MODEL NO.
INTEGRATED STEREO AMPLIFIER

SERIAL NO.
MADE IN JAPAN

TA-F110
TA-F210

TA-FI 10:
AEP Model: AC: 220 V V 50/60 Hz
UK Model: AC: 240 V ~ 50/60 Hz
E Model: AC: 120, 220, 240 V A 50/60 Hz

TA-FZIOZ
AEP Model: AC: 220 V ~ 50/60 Hz
UK Model: AC: 240 V ~ 50/60 Hz

On operating voltage
Before operating the unit, check that the operating voltage of
your unit is identical with the voltage of your local power

supply.

Where purchased Operatlng voltage

U K model 240 V AC

AEP model 220 V AC

E model 120 V, 220 V or 240 V AC

adjustable

The voltage selector is located
on the rear panel.

It the selector must be reset.
disconnect the AC power cord
and set the selector to the
proper voltage of your local
power supply

220 V

240 V

120V
