Sony ta f 200 int service manual

This is the 9 pages manual for sony ta f 200 int service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

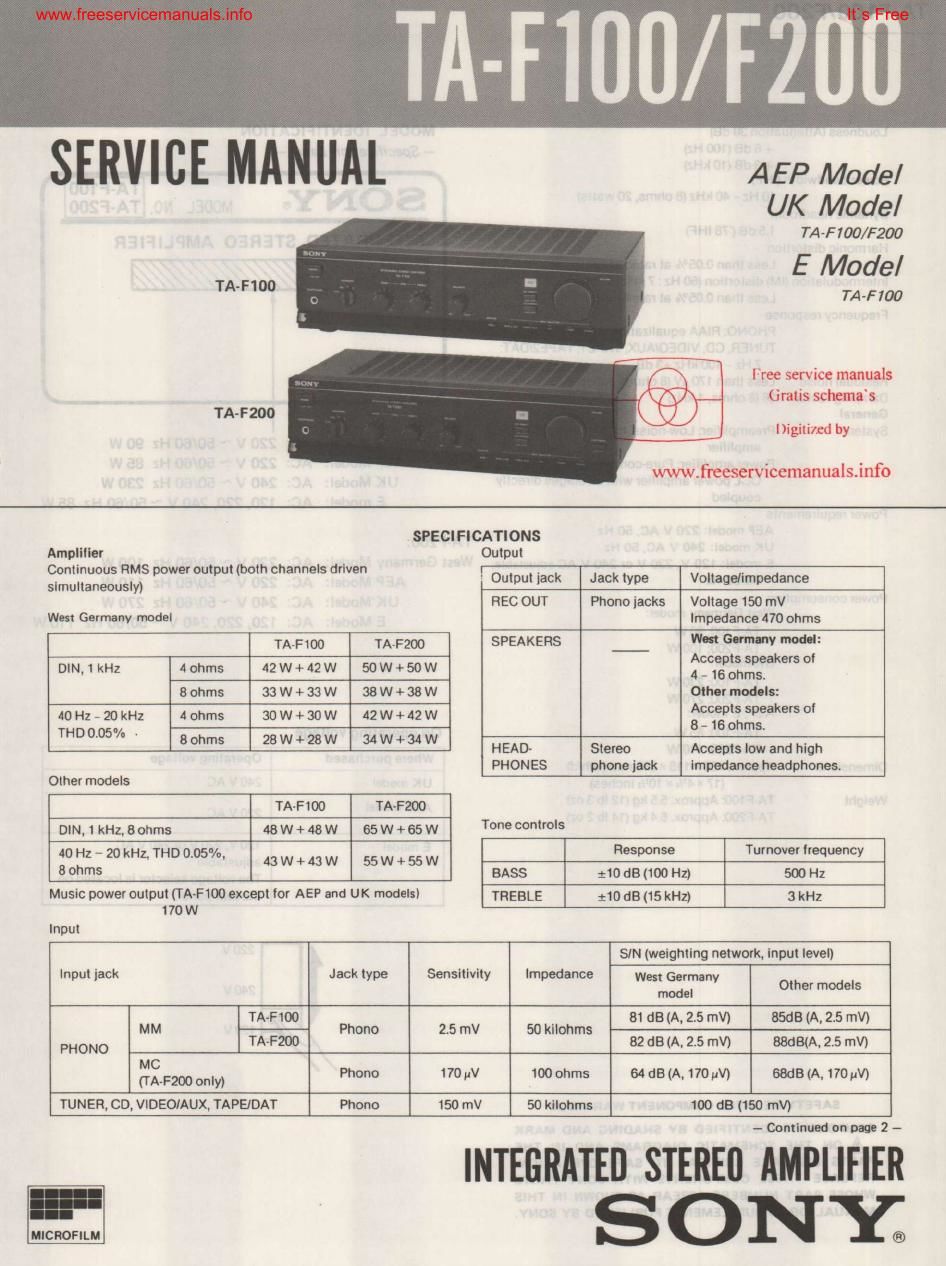

Page: 1 / 9
sony ta f 200 int service manual

Extracted text from sony ta f 200 int service manual (Ocr-read)


Page 2

TAWWaTualanfo

Loudness (Attenuation 30 GB)
+ 6 63 (too H2)
+ 3 dB (10 kHz)
Power bandwldth (HF)
10 Hz - 40 kHz (8 ohms, 20 watts)
Dynamic headroom
1.5 dB (75 IHF)
Harmonic distortion
Less than 0.05% at rated output
Intermodulation (lM) distortion (60 Hz : 7 HI! = 4: l)
Less than 0.05% at rated output
Frequency response
PHONO: FlIAA equalization curve 10.5 dB
TUNER, CD, VIDEO/AUX, TAPE1. TAPEZIDAT:
7 Hz- 100 kHz :3 dB
Reslduat noise Less than 170 W (8 ohms, network A)
Damping lactor 36(8 ohms, 1 kHz)
General
System Preamplifier: Low-noise, hlgh-gain equalizer
amplilier
Power amplifier: Pure-complementary SEPP
OCL power amplifier with all stages directly
coupled
Power requirements
AEP model: 220 V AC, 50 Hz
UK model: 240 V AC, 50 Hz

E model: 120 V, 220 V or 240 V AC adjustable,

50/60 Hz

Power consumption
West Germany model:

TA-FlOO: 90 W

TA-FZOO: 100 W
UK model:

TAvFIDO: 230 W

TAvFZDO: 270 W
AEP, E model:

TA-FtOO: 85 W

TA-FZDO: 110 W
Approx, 430 x 118 x 265 mm (win/d)

(17 X 4I4 x 10']: inches)
Weight TA-FIOO: Approx. 5.5 kg (12 lb 3 oz)
TA-F200: Approx. 6.4 kg (14 lb 2 oz)

Dimensions

SAFETV-RELATED COMPONENT WARNI NGI I

COMPONENTS IDENTIFIED 3V SHADING AND MARK

A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL T0 SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONV.

TA-F100:
West Germany Model: AC: 220 V ~ 50/60 Hz 90 W

Its Free

MODEL IDENTIFICATION
- Specification Label -

SONYo

T 00
MODEL no. A-F

INTEGRATED STEREO AMPLIFIER

7/ ////

SERIAL NO.
MADE IN JAPAN

AEP Model: AC: 220 V ~ 50/60 Hz 85 W
UK Model: AC: 240 V ~ 50/60 Hz 230 W
E model: AC: 120, 220, 240 V ~ 50/60 Hz 85 W

TA-F200:
West Germany Model: AC: 220 V ~ 50/60 Hz 100 W

AEP Model: AC: 220 V "' 50/60 Hz 110 W
UK Model: AC: 240 V ~ 50/60 HZ 270 W
E Model: AC: 120, 220, 240 V ~ 50/60 Hz 110 W

On operating voltage

Where purchased Operating voltage

UK model 240 V AC

AEP model 220 V AC

E model 120 V, 220 V or 240 V AC
adjustable

The voltage selector is located on

the rear panel.

220 V

240 V

/ 120v
