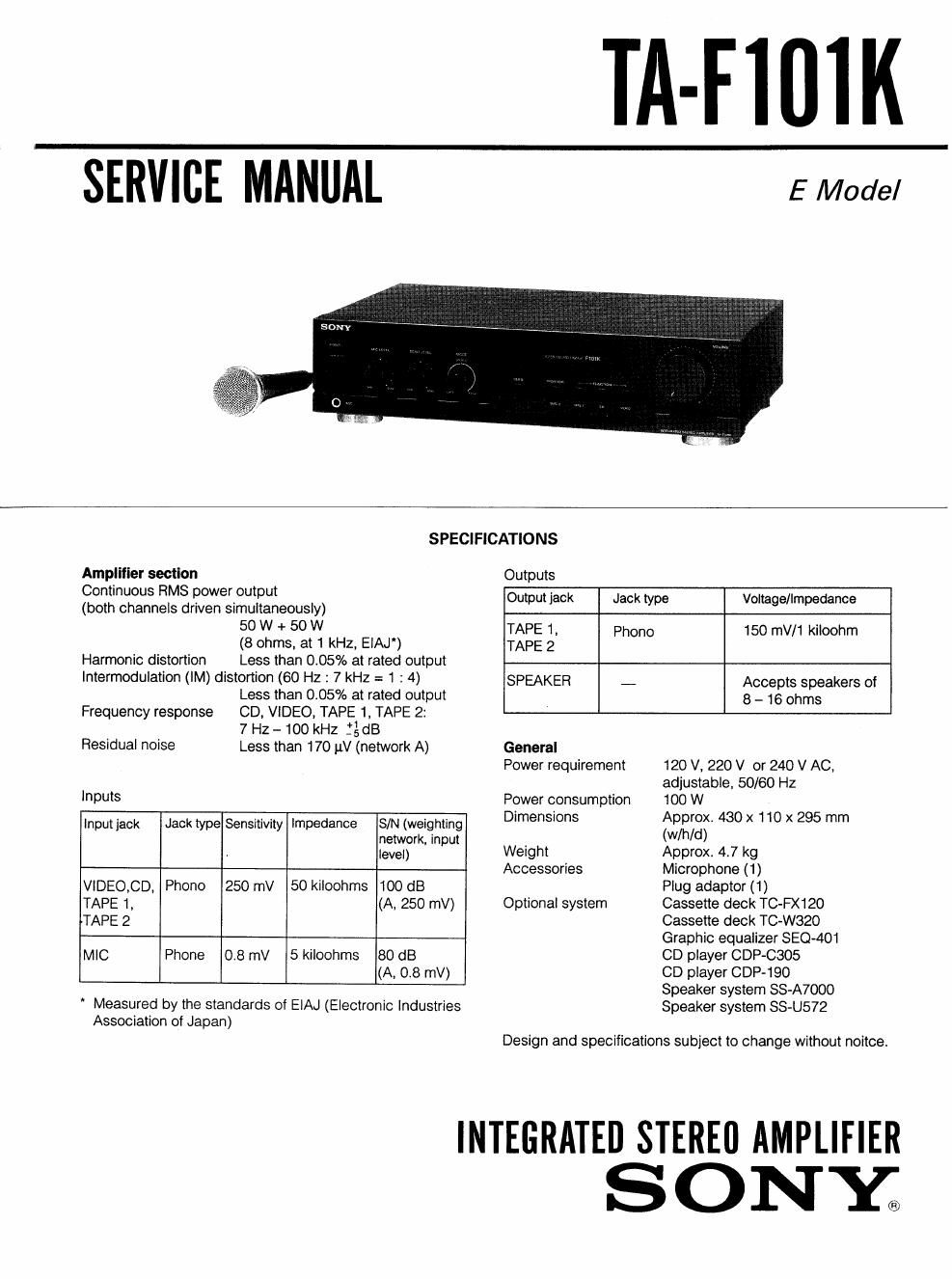

Page 1

TA-FIDIK

SERVICE MANUAL

E Model

SPECIFICATIONS
Amplifier section Outputs
Continuous RMS poweroutpul Output jack Jack type Voltage/Impedance
(both channels driven Simultaneously)
50 W + 50 W TAPE 1, phone 150 mV/1 kiioohm
(8 ohms, at 1 kHz, EiAJ") TAPE 2
Harmonic distortion Less than 0.05% at rated output
Intermodulation (IM) distortion (60 Hz : 7 kHz = 1 : 4) SPEAKER _ Accepts speakers of
Less than 0.05% at rated output 8 _ 16 ohms
Frequency response CD, VIDEO, TAPE 1, TAPE 2:
7 Hz - 100 kHz :gda
Residual noise Less than 170 uV (network A) General

Inputs
lnputjack Jack type Sensitivity Impedance S/N (weighting
network, input
level)
VIDEO,CD, Phono 250 mV 50 kiloohms 100 dB
TAPE 1, (A, 250 mV)
TAPE 2
MIC Phone 08 mV 5 kiloohms 80 dB
(A, 08 mV)

" Measured by the standards of EIAJ (Electronic industries
Association of Japan)

Power requirement

Power consumption
Dimensions

Weight
Accessories

Optional system

120 V, 220 V or 240 V AC,
adjustable, 50/60 Hz

100 W

Approx. 430 x 110 x 295 mm
(WIh/d)

Approx. 4.7 kg
Microphone (1)

Plug adaptor (1)

Cassette deck TC-FX120
Cassette deck TC-W320
Graphic equalizer SEQ-401
CD player GDP-0305

CD player COP-190
Speaker system SS-A7000
Speaker system SS-U572

Design and specifications subject to change without noitce.

INTEGRATED STEREII AMPLIFIER
SONZ
