Sony ta ex 100 service manual

This is the 31 pages manual for sony ta ex 100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

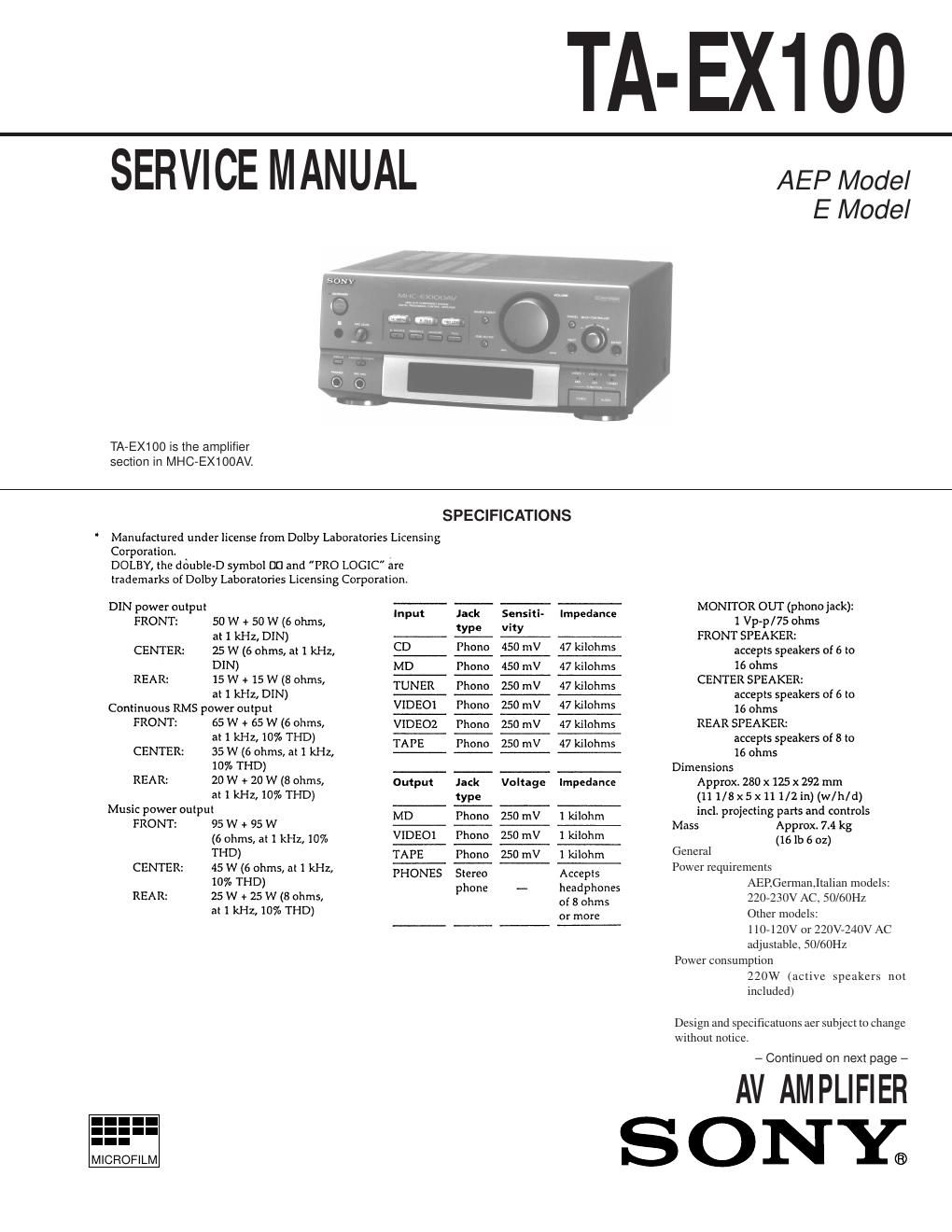

Page: 1 / 31
sony ta ex 100 service manual

Extracted text from sony ta ex 100 service manual (Ocr-read)


Page 1

Ñ 2 Ñ MODEL IDENTIFICATION Ð BACK PANEL Ð PARTS No. MODEL AEP model German model Italian model Singapore model Hong Kong model PARTS No. 4-978-785-0¹ 4-978-785-1¹ 4-978-785-2¹ SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. [ TEST MODE ] Press SYSTEM POWER button, turn the power on and press DIS PLAY and AUDIO buttons for two seconds at the same time to enter in the test mode. See the list below for check of mode and display. Button M.MENU P.FILE PRO LOGIC M.SOURCE PRESENSE MEMORY NAME KARAOKE PON/MPXDisplay(mode) PRO-LOGIC ON/OFF & MODE setting. The display will change every pressing the button. PHANTOM(ON)nNORMALnWIDEn 3CH LOGICnTHROUGH(OFF) 7kHz LPF ON/OFF B DECODER ON/OFF LEFT (Lch test tone output) RIGHT (Rch test tone output) CENTER (Cch test tone output) REAR (Sch test tone output) FL & LED all light up SECTION 1. GENERAL................................................. 3 SECTION 2. DISASSEMBLY 2-1. Front Panel Assembly ........................................................... 4 2-2. Audio Board and DSP Board ............................................... 4 2-3. Main Board ........................................................................... 5 2-4. Back Panel Assembly ........................................................... 5 SECTION 3. DIAGRAMS 3-1. Circuit Boards Location ....................................................... 6 3-2. IC Pin Function ¥ IC601 System Control (HD6433927B97F) ....................... 7 3-3. Printed Wiring Board Ñ Main Section Ñ ........................... 9 3-4. Schematic Diagram Ñ Main Section Ñ ............................ 13 3-5. Schematic Diagram Ñ Audio/Panel Section Ñ ................. 18 3-6. Printed Wiring Board Ñ Audio/Panel Section Ñ .............. 23 3-7. Printed Wiring Board Ñ DSP Section Ñ .......................... 26 3-8. Schematic Diagram Ñ DSP Section Ñ ............................. 29 3-9. IC Block Diagrams Ñ DSP Section Ñ .............................. 33 SECTION 4. EXPLODED VIEWS 4-1. Front Panel Section 1 ......................................................... 35 4-2. Front Panel Section 2 ......................................................... 36 4-3. Chassis Section ................................................................... 37 SECTION 5. ELECTRICAL PARTS LIST................. 38 Note: Turn off the test tone with pressing the M.MENU button to change the mode. Press the corresponded button to each channel to fix each channel of the test tone after the M.SOURCE button. Press the SYSTEM POWER button to cancel the test mode. TABLE OF CONTENTS

Page 2

Ñ 3 Ñ SECTION 1 GENERAL This section is extracted from instruction manual.
