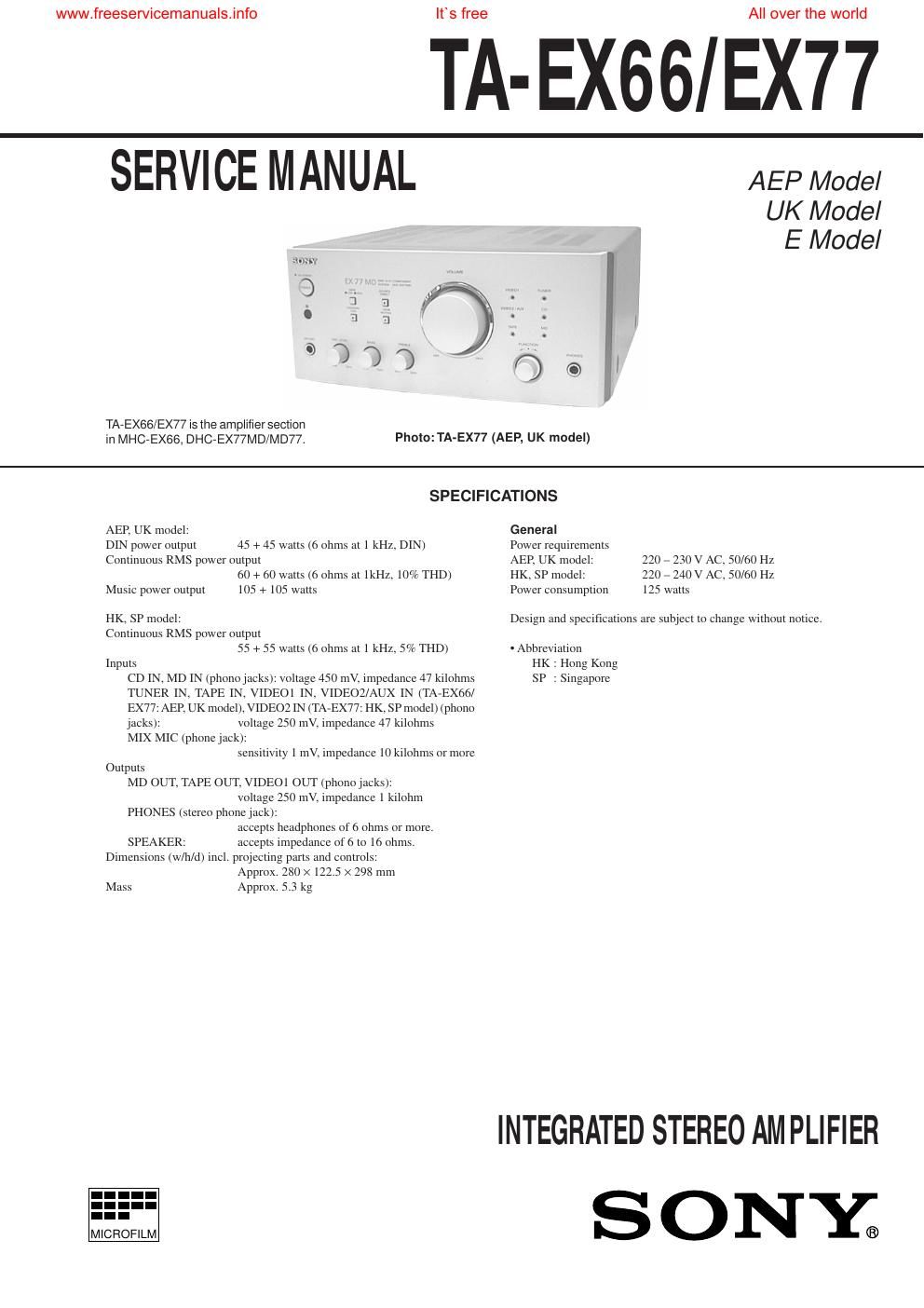

Sony TA EX 77 int sm

Extracted text from Sony TA EX 77 int sm (Ocr-read)


Page 2

wwwtfreeservicemanualsjnfo

31.
342.
373.

TABLE OF CONTENTS

GENERAL .................................................................... 3
DISASSEMBLY ........................................................... 6
DIAGRAMS

...9

IC Pin Function Description .
.. I4

Schematic Diagram

Printed Wiring Boards .. I9
EXPLODED VIEWS ................................................ 22
ELECTRICAL PARTS LIST ................................. 24

Its free All over the world

MODEL IDENTIFICATION
- BACK PANEL -

4-985-927--
I_I I_I

TA»EX77 (AEP, UK model) : 1|:l CED/CEK
TA-EX77 (Singapore model) :2El SP
TA-EX77 (Hong Kong model) : 3D HK
TA-EX66 (AEP, UK model) :4El CED/CEK
TA»EX66 (Singapore model) :5El SP

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
