Sony ta e 80es pre service manual

This is the 30 pages manual for sony ta e 80es pre service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

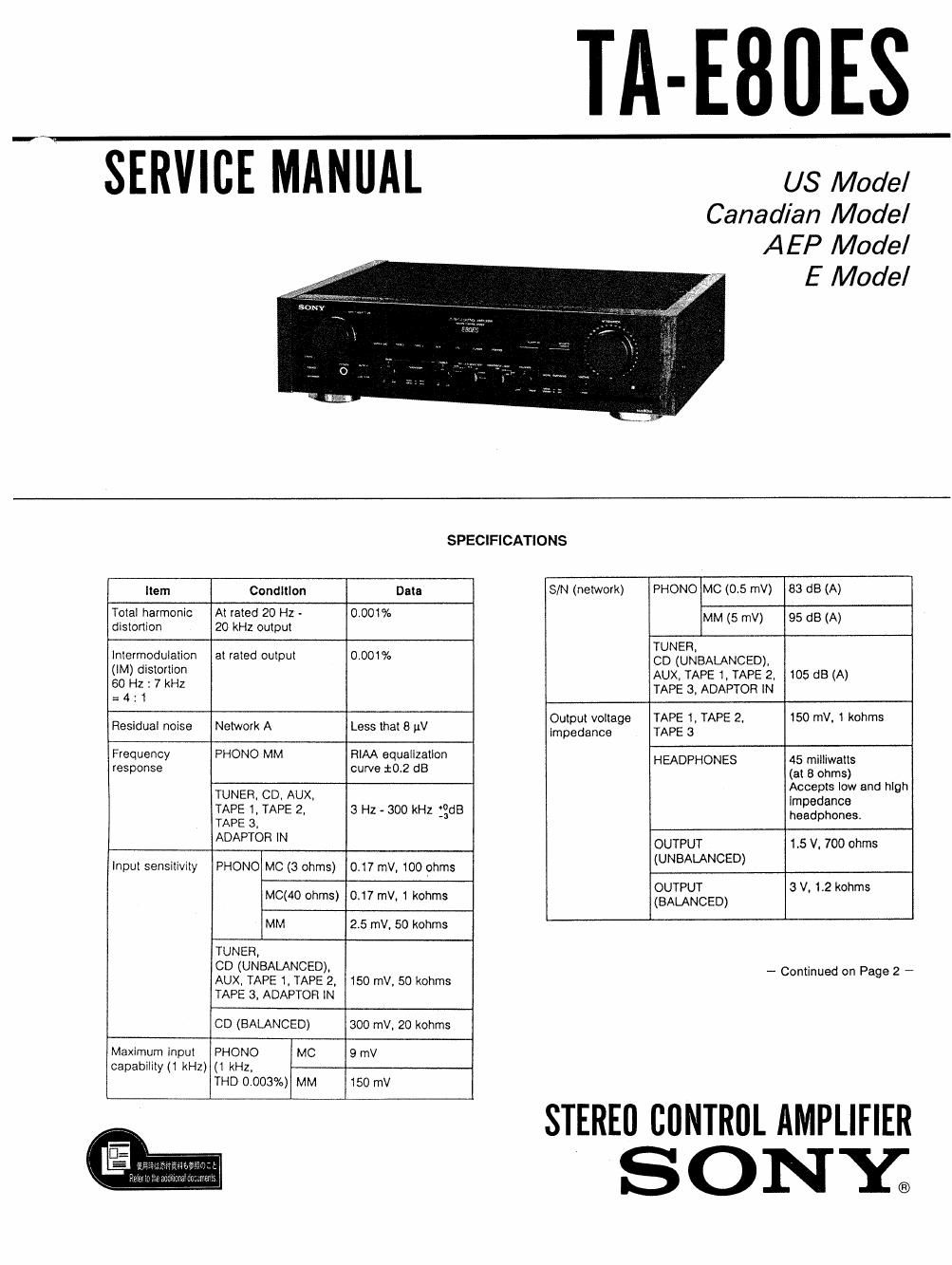

Page: 1 / 30
sony ta e 80es pre service manual

Extracted text from sony ta e 80es pre service manual (Ocr-read)


Page 2

TA-E80ES

Item Condition Data

Tone controls BASS 1:7 dB
(at 100 Hz) (turnover Iraq. 200 Hz)
:8 dB
(turnover freq. 400 Hz)

TREBLE :6 dB
(at 10 kHz) (turnover Iraq. 3 kHz)
18 dB
(turnover freq. 6 kHz)

SUBSONIC Illter - 6 dB/octave

attenuation below 15 Hz

Mutlng - --20 dB

MODEL IDENTIFICATION
- Specification Labels -

SONY®

STEREO CONTROL AMPLIFIER

MODEL NO. TA-ESOES

SERIAL No.
MADE IN JAPAN

US, Canadian model: AC 120V 60Hz 20W
AEP, Germany model: AC 220V~50l60Hz
E model:

AC 120/220/240 V ~50/60 Hz 20W

General
System Low-noise FET high gain, NFB type
equalizer amplifier, low noise FET. Double-
stage defterential, push-pull output, flat
amplifier passive type direct tone control
Power requirements
US, Canadian model: 120 V AC. 60 Hz
AEP, Germany model: 220 V AC,
50/60 HZ
E model: 110 - 120 V or220 - 240 VAC
adjustable, 50/60 Hz

Power consumption
20 W
AC outlets US model: 3 switched, 480 W max.

Canadian model: 3 switched. 480 VA max.
AEP, Germany model: 3 switched
200 W max.
E model: 3 switched, 500 W max.
Approx. 470 X 130 X 370 mm (w/h/d)
Incl. projecting parts and controls
Approx. 115 kg
Supplied accessories
Remote commander
AEP, Germany. E model: RM-BOB (1)
US. Canadian model: RM~8806 (1)
Sony batteries SUM-3 (NS) (2)
Connecting cord (1)

Dimensions

Design and specification subject to change without notice.

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BV MARK A OFI DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB<
LISHED BY SONY.

ATTENTION AU COMPQSANT AYANT RAPPORT
A LA secumrsz

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A
sun LES DIAGRAMMES scHéMAnuues ET LA LISTE
DES Plécss sour canmuEs POUR LA sécumré
DE FONCTIONNEMENT. NE REMPLACER ces com.
POSANTS our: PAR DES PIECES souv DONT LES
NUMéRos sour DONNES DANS ca MANUEL ou
DANS LES SUPPLEMENTS Puaués PAR SONY.

TABLE OF CONTENTS

Section Title Page
Specifications ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ I

I. GENERAL

Precautions ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 3
Operating Voltage ........................ 3
Function of Controls 4
System Connections 6
2. DISASSEMBLY ---------------------- 7

Section Title Pa gc

3. DIAGRAMS

3-1. Circuit Boards Location
3-2, Semiconductor Lead Layouts ~~~~~
3-3. Printed Wiring Boards --------------------- 10
3-4. Schematic Diagram ~

4. EXPLODED VIEWS

5. ELECTRICAL PARTS LIST ~~~~~~~~~~ Z3
