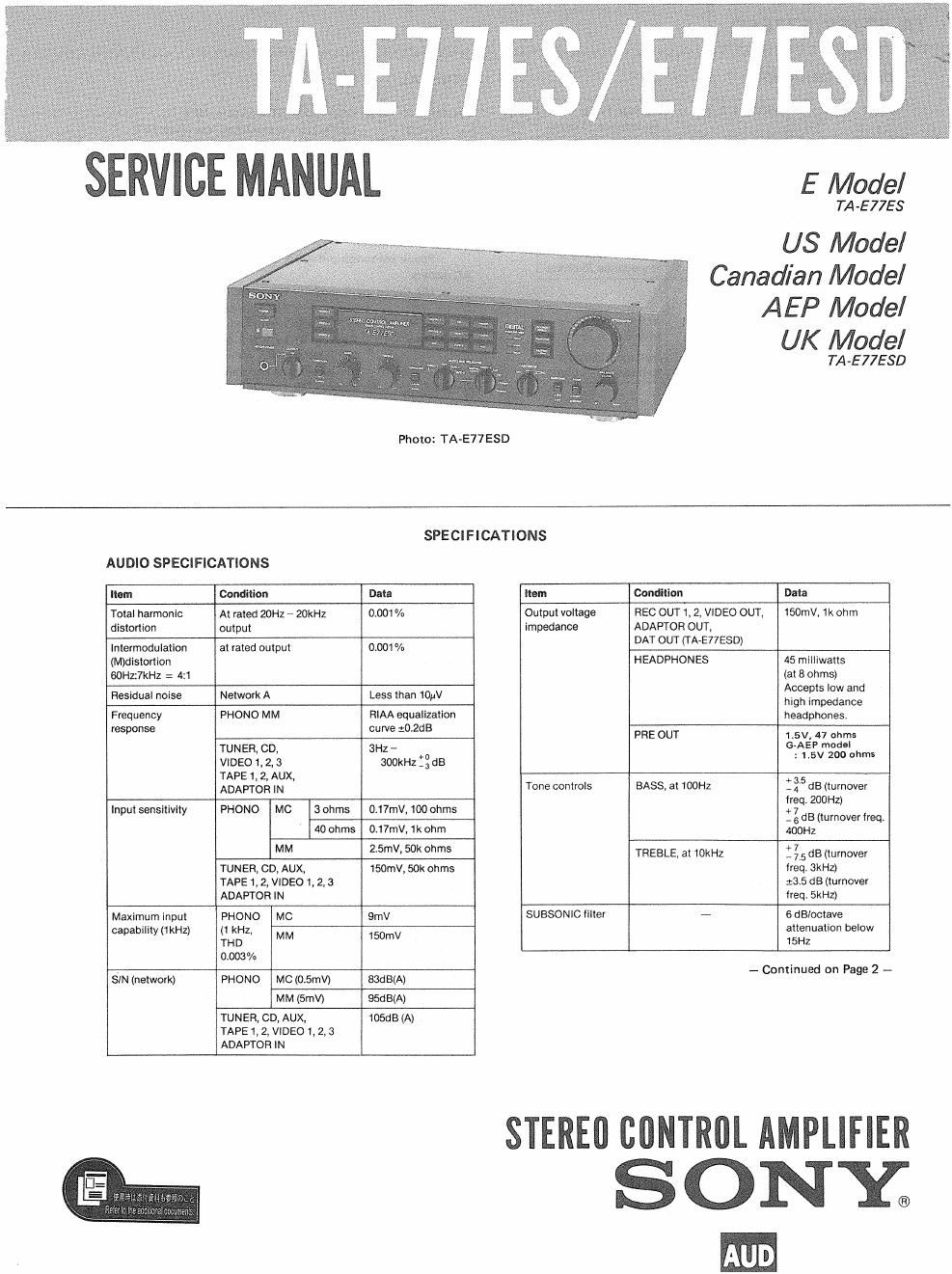

Sony ta e 77es service manual

This is the 44 pages manual for sony ta e 77es service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 44
sony ta e 77es service manual

Extracted text from sony ta e 77es service manual (Ocr-read)


Page 2

TA-E77ES 77ESD

VIDEO SPECIFICATIONS

INPUT VIDEO 1, 2, 3 Voltage 1Vp-p
Impedance 75 ohms

OUTPUT VIDEO 1, 2 Voltage 1Vp-p
MONITOR TV Impedance 75 ohms

S VIDEO IN

(TA-E77ESD only)

Luminance signal VIDEO 1, 2 Voltage 1Vp-p

..'.TE§9?§§Z§95...

Chroma Signal VIDEO 1, 2 Voltage 0.286Vp-p
Impedance 75 ohms

S VIDEO OUT

(TA~E77ESD only)

Luminance signal VIDEO 1 Voltage 1Vp-p
MONITOR

Chroma srgnal VIDEO 1 Voltage 0.286Vp-p
MONITOR Impedance 75 ohms

DIGITAL SPECIFICATIONS (TA-E77ESD only)

Converter section

Digital input Input level Impedance
(phono jacks) (sensitivity) 75 ohms
0.5 Vp-p 120%
Digital output Output level Impedance
(voltage) 75 ohms
0.5Vp-p :20% The input signal comes

unprocessed to the digital
output terminals via a buffer,
only when the TA«E77ESD is
operatlng.

Number of channels
2 (stereo)
Demodulation (D/A conversion)
16bit linear
Frequency response
5H2 - 20kHz :0.5dB
(Input digital signal sampling freq. 44.1kHz)
Harmonic distortion
Less than 0.004% at 1kHz
(Input digital signal sampling freq. 44.1kHz
16-bit operation)
More than 95dB
(input digital signal sampling freq. 44.1kHz
16bit operation)
Channel separation
More than 90dB

Dynamic range

--n -v- ..-4 - non ~o~ n»---n - Lyn- 7.4 ---n -0- It»--- on ---

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY SHADING AND MARK

A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS \APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITEI

LEs COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MARouE A sun LES DIAGRAMMES SCHE-
MATIOUES ET LA LISTE DES PIECES SONTCRITIOUES
PouR ,LA SECURITE DE FONCTIONNEMENT. NE REM-
PLACER ces COMPOSANTS OUE PAR DES PIECES
SONY DONT LES NUMéRos SONT DONNES DANS CE
MANUEL ou DANS LES SUPPLEMENTS PUBLIES PAR
SONY.

o-- l

o--.» on». n- n o4-a o i». no no. - n ow- not--- .- n o it-.- n on on ~o a -ti-

GENERAL

Low-noise FET high gain, NFB
type equalizer amplifier, low noise FET,
Double-stage differential, push-pull output,
flat amplifier passive type direct tone control
Power requirements
US, Canadian model:
AEP, UK, E model:

System

120V AC, 60Hz
110-120V 0r 220-240V AC
adjustable, 50/60Hz

G-AEP model: 220-240V AC, 50/60Hz
Power consumption: 30W
AC outlets

US, Canadian, E model: I switched, 400W max.
1 unswitched, 400W max.

AEP, UK, G-AEP model: I switched, 400W max.

Dimensions Approx. 470 x 130 x 370mm (w/h/dl
(18/: x57. xmvz inches)
incl. projecting parts and controls
Weight Approx. 12.1 kg (26Ib 110le TA-E77ES

Approx. 13kg l28lb 1102): TA-EE7ESD
Supplied accessory
US, Canadian model: Programmable commander RM-E7 (1),
Digital signal cord (1l, Connecting cord (1 l,
Sony New Super batteries (4), Index sheet
AEP, UK, G-AEP model: Remote commander RM-177D (II,
Digital signal cord (1 ), Connecting cord (1),
Sony New Super batteries (2)
Remote commander RM-177 (1 l. Connecting
cord (1), Sony New Super batteries (2)

E model:

i -u - .- n - a -40 o .- n -m -o-n 04v o» -n -«- v-4 -4 - m on -4 - ». n.

FEATURES

Higher sound quality

Sony performed numerous experiments and trials to
determine the best chassis structure for an amplifier capable
of top quality sound reproduction with superb dynamics,
response and presence. The results provided the basis for
the TA-E77ES/E77ESDs chassis design. The chassis, named
Gibraltar, is solid as a rock to avoid internal vibrations
caused by power transformers, power transistors, and other
amplifier components and stress from the outside caused by
floor vibration from speakers, home appliances, and other
sources. Additionally, the chassis is made of nonmagnetic
and nonconducting materials and this eliminates magnetic
hysterisis distortion caused by transformers, capacitors,
transistors, etc.

Abundant functions

0 Audio input selectors control 7 audio and 3 video signals.

0 Input source selection can be remotely controlled by the
supplied remote commander.

~TA-E77ESD provides digital input and output jacks.
These deliver excellent sound reproduction with digital
audio equipment.
For the model in USA and Canada only, a programmable
commander is supplied. This can remotely control almost
any Sony audio and video equipment. Further, it can read"
and store the functions of another remote commander
using an infrared ray transmitter, not only those made by
Sony but those of other manufacturers as well. With this
single commander, you can control your audio and video
equipment regardless of their manufacturers.

2-
