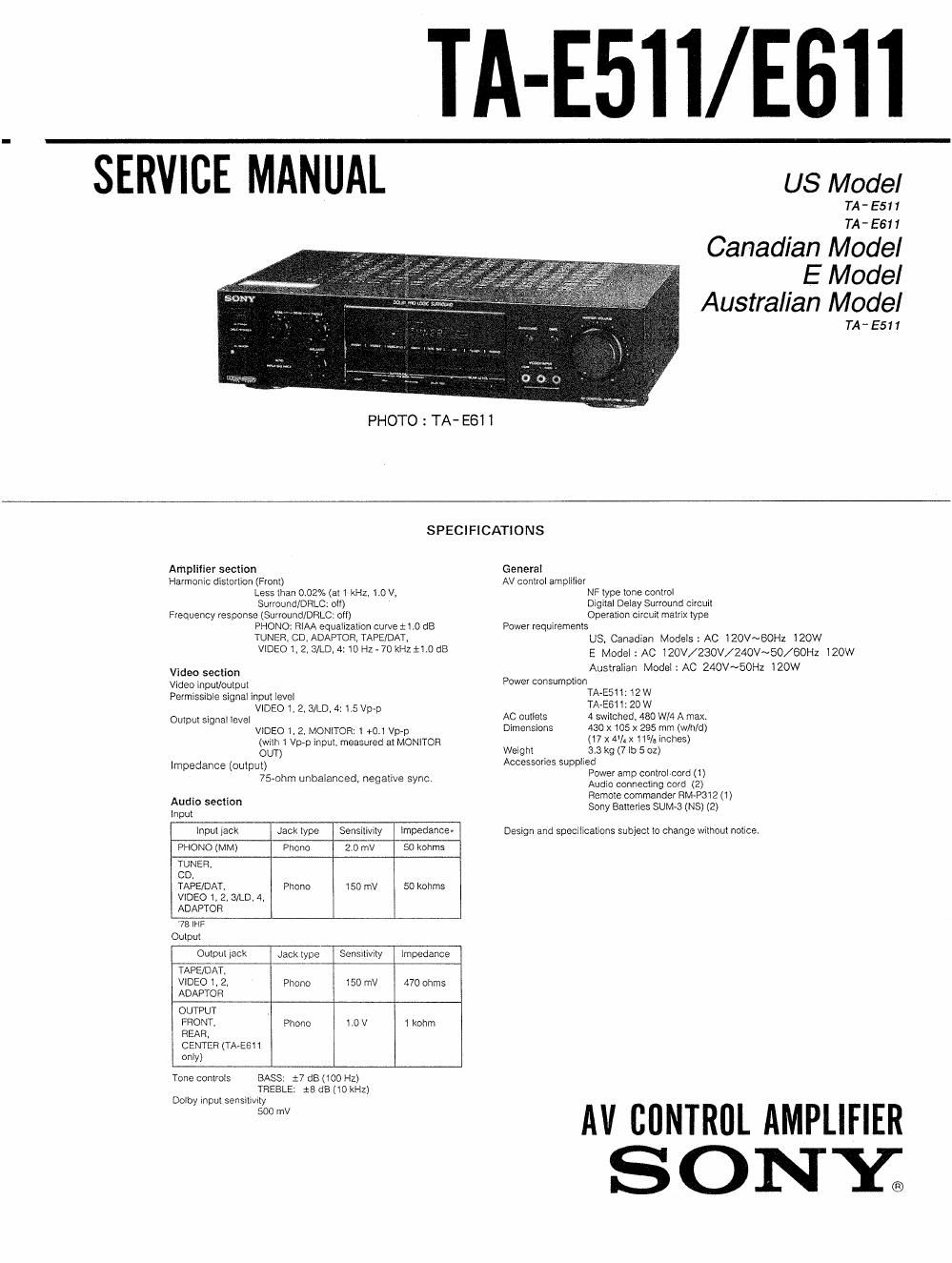

Sony ta e 511 service manual

Page 2

TA- E51 1/E61 1

TABLE OF CONTENTS

m M has
SPECIFICATIONS .......................................... 1
1_ GENERAL ............................................... 3
2. DIAGRAMS

2- 1. Description on IC303 (LVlOOlM) ~~~~~~~~~~~~~~~~~~~ 8
2.1.1. Service Note ..................................... 9
2-2. Circuit Boards Location . 10
2-3. BIOCk Diagram ..................................... 11
2-4. Printed Wiring Boards - Surround - (TA-E511) ~ ~ 14
2- 5. Schematic Diagrams ~Surround - (TA-E511) ~~~~~ 17
2-6. Schematic Diagrams - Surround- (TA-E611) ~~~~~ 21
2v7. Printed Wiring Boards - Surround - (TA-E611) ~~ 25
2-8. Printed Wiring Boards -Control etc.- ~~~~~~~~~~~~ 28
Z~9. Schematic Diagrams -Control etc.- ~~~~~~~~~~~~~~ 31
Z- 10. Semiconductor Lead Layouts ~~~~~~~~~~~~~~~~~~~~ 36
2.11. 1C Block Diagrams ............................... 37
3. EXPLODED VIEWS

3-1. Front Panel Section .............................. 39
3-2. Back Panel Section ............................... 40
4- ELECTRICAL PARTS LIST .............................. 41

MODEL IDENTICATION
- Specification Label -

SONY.

TA- E51 I
MODEL NO. TA- ESll

WWW

SERIAL N0.
MADE IN JAPAN

US, Canadian Model : AC 120V ~ 60Hz 120W
E Model : AC 120V/230V/240V

~ 50/60Hz 120W

Australian Model : AC 240V ~ 5OHZ 120W

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB~
LISHED BY SONY.

SAFETY CHECK-OUT

After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:

Check the antenna terminals, metal trim, metallized
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5 mA (500 microampers). Leakage
current can be measured by any one of three
methods.

1. A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers instructions to use these instru-
ments.

2. A battery-operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job.

3. Measuring the voltage drop across a resistor by
means of a VOM or battery~operated AC volt-
meter. The "limit" indication is 0.75V, so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are
suitable. (See Fig. A)

To Exposed Metal
Part: on Set

0.15MF I §7.5kfl

A C
voltmeter
(0.75 V}

Earth Gmund

Fig. A. Using an AC voltmeter to check AC leakage.

ATTENTION AU COMPQSANT AYANT RAPPORT
A LA SECURITEI

LES COMPOSANTS IDENTIFIES PAR UNE MARDUE A
sun LES DIAGRAMMES SCHEMATIOUES ET LA usra
DES Piéces SONT CRITIouEs POUR LA sécualré
DE FONCTIONNEMENT. NE REMPLACER czs COM-
POSANTS oua PAR DES PIECES SONY DONT LES
NUMéRos s0NT DONNés oANs cs MANUEL ou
DANS LES SUPPLEMENTS Pusués PAR SONY.
