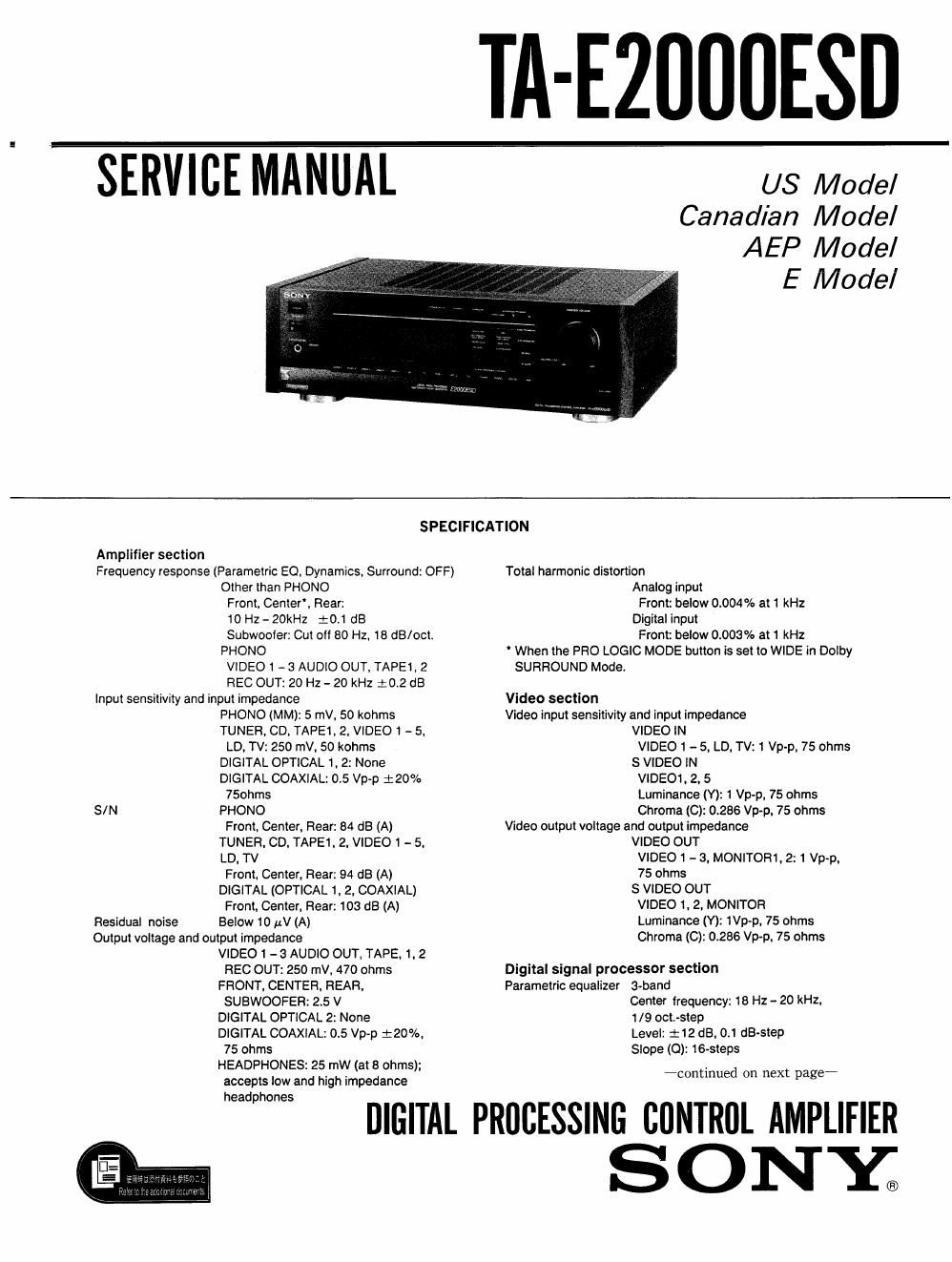

Page 1
TII-EZIIUIIESD
SERVICE MANUAL us Model
Canadian Model
AEP Model
E Model
SPECIFICATION
Amplifier section
Frequency response (Parametric E0, Dynamics, Surround: OFF) Total harmonic disiortion
Other than PHONO Analog input
Front. Center'. Rear: Front: below 0.004% at 1 kHz
10 Hz - 20kHz 10.1 dB Digital input
Subwooier: Cut oil 80 Hz. 18 dB/oct. Front: below 0.003% at 1 kHz
PHONO ' When the PRO LOGIC MODE button is set to WIDE in Dolby
VIDEO 1 - 3 AUDIO OUT, TAPE1,2 SURROUND Mode.
REC OUT: 20 Hz - 20 kHz :02 dB
input sensitivity and input impedance Vldeo section
PHONO (MM): 5 mV. 50 kohms Video input sensitivity and input impedance
TUNER. CD. TAPE1. 2. VIDEO 1 - 5, VIDEO IN
LD, TV: 250 mV. 50 kohms VIDEO 1 -- 5. LD. TV: 1 Vp-p. 75 ohms
DIGITAL OPTICAL I. 2: None 5 VIDEO IN
DIGITAL COAXIAL: 0.5 Vp-p i20% VIDEOI. 2. 5
750hms Luminance (Y): 1 Vp-p, 75 ohms
S/N PHONO Chroma (C): 0.286 Vp-p. 75 ohms
Front. Center. Rear: 84 dB (A) Video output voltage and output impedance
TUNER, CD.TAPE1. 2. VIDEO 1 - 5. VIDEO OUT
LD. TV VIDEO 1 - a. MONITORI, 2: 1 Vp-p.
Front. Center. Rear: 94 d8 (A) 75 ohms
DIGITAL (OPTICAL 1, 2, COAXIAL) S VIDEO OUT
Front, Center, Bear: 103 dB (A) VIDEO 1. 2, MONITOR
Residual noise Below 10 AV (A) Luminance (Y): 1Vp-p. 75 ohms
Output voltage and output impedance Chroma (C): 0.286 Vp-p. 75 ohms
VIDEO 1 - 3 AUDIO OUT, TAPE, 1, 2
REC OUT: 250 mV, 470 ohms Digital signal processor section
FRONT. CENTER. REAR. Parametric equalizer 3~band
SUBWOOFEFI: 2.5 V Center Irequency: 18 Hz - 20 kHz.
DIGITAL OPTICAL 2: None 1/9 act-step
DIGITAL COAXIAL: 0.5 Vp-p 110%. Level: :12 dB. 01 dB-step
75 ohms Slope (Q): 16~steps
HEADPHONES: 25 mW (at 8 ohms);
accepts low and high impedance
DIGITAL PRIJIIESSING IIIINTRUL AMPLIFIER
SONx
icontinued on next pagev
