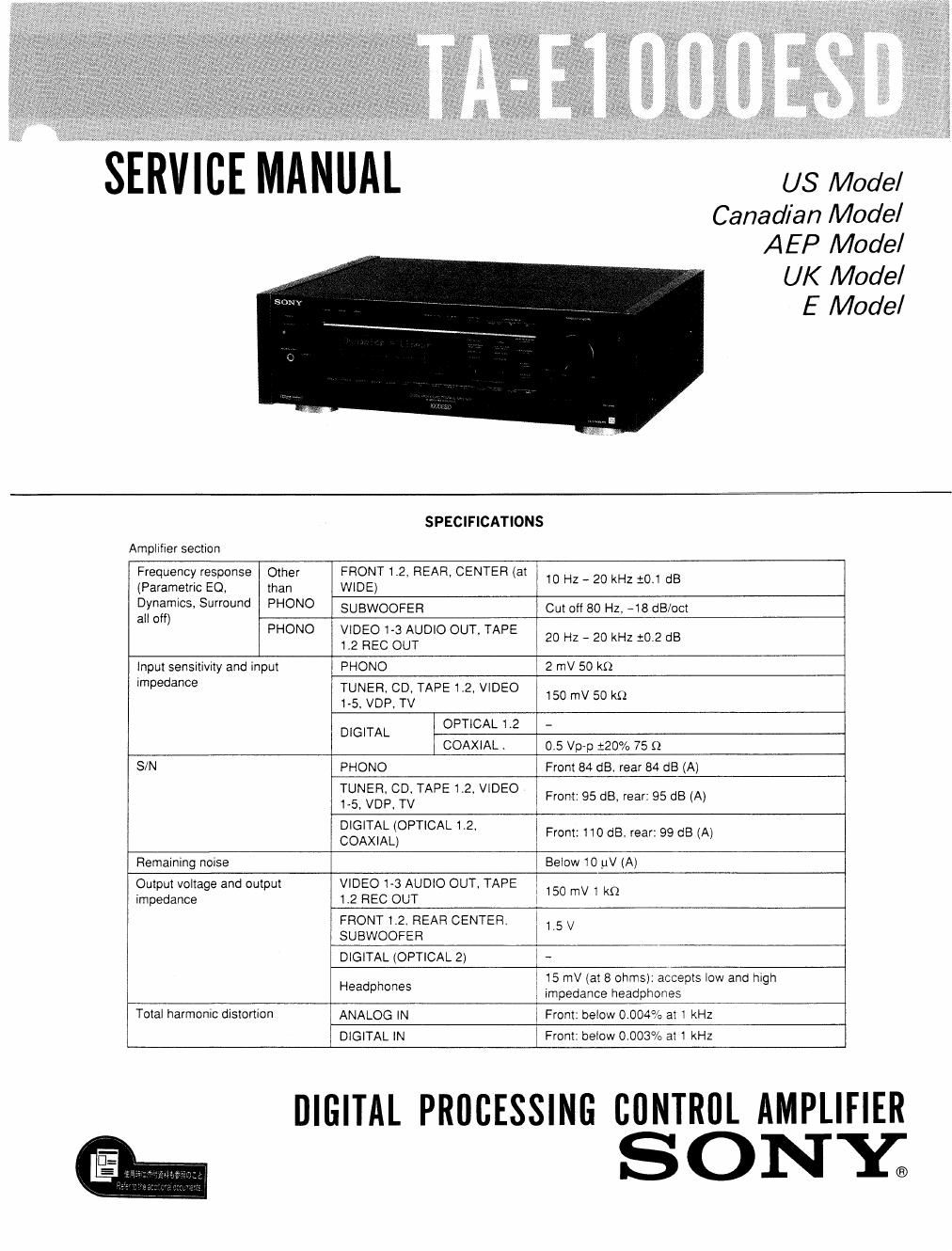

Sony ta e 1000 esd service manual

Page 2

TA-ElOOOESD

Video section

Video input sensitivity and input
impedance

VIDEO 1-5,

VIDEO IN VDP, TV

1 Vp-p 75 Q

Luminance: 1 Vp-p 75 Q:
3 wow 'N V'DEO1'2'5 chroma: 0.286 Vp-p 75 o

Video output voltage and output VIDEO 1-3, >
impedance 050 OUT MONITOR 1. 2 1 V9 p 75 9
VIDEO 1 2 Luminance:l Vp-p 75 Q;
S V'DEO OUT MONITOR chroma: 0.286 Vp-p 75 Q
Digital signal processor section
Parametric EQ Band 3-band
Center frequency I 18 Hz - 20 kHz
Level :12 dB. 01 dB step
Slope (Q) 4-step selectable (0.7. 1.4. 3.7. 20)
Dynamics Compressor 9-step adjustable
Expander 9-step adjustable
Surround Main parameter Room size 0.5 - 20
Wall 0.5 - 20
Seat position F50 - 0 . R50. L50 - 0 - R50
Sub parameter Early rellection
time 1 - 255 ms
Early reflection
level 0 - 100%
Reverberation
time 0.3 - 5.0 sec.
Reverberation . ,
densrty Low, Mldr High
Spread 0.5 - 2.0
Effect level 0 - 100%
5° de'ay 15.0 - 300 ms
{719
i
r EEC 9' I 15.0 - 30.0 ms
. time I
AD. DrA converter section
ND converter Type I High Density Linear Converter
Sampling lrequency I 48 kHz
Dr'A converter Front 18-bit linear 8 fs x 2
Rear I 16«brt lmear41s x1
Sampling frequency ; 32 kHz. 44.1 kHz. 48 kHz

General

Power requirements

US, Canadian: 120V AC 60Hz
AEP: 220V AC (or 240V AC adjustable by authorized Sony personnel), 50/60Hz
UK: 240V AC (or 220V AC adjustable by authorized Sony personnel), 50/60Hz
E: 120V, 220V, and 240V AC adjustable, 50/60Hz

Power consumption

35 watts

AC outlets

Three switched, total 700 (US. Canadian, E), 540 (AEP, UK) watts;
one unswitchad 300 watts

Dimensions (w/h/d)

470 x 150 x 360 mm (18/2 x 6 x 14W in)

Welght

8.0 kg (17m 11 oz)

Supplied accessories

Programmable remote commander RM-Plooo (1)
Sony batteries SUM-3 (NS) (2), Connection cord (1), Screws (4)

Design and specrfications subject to change wrthout notice.
