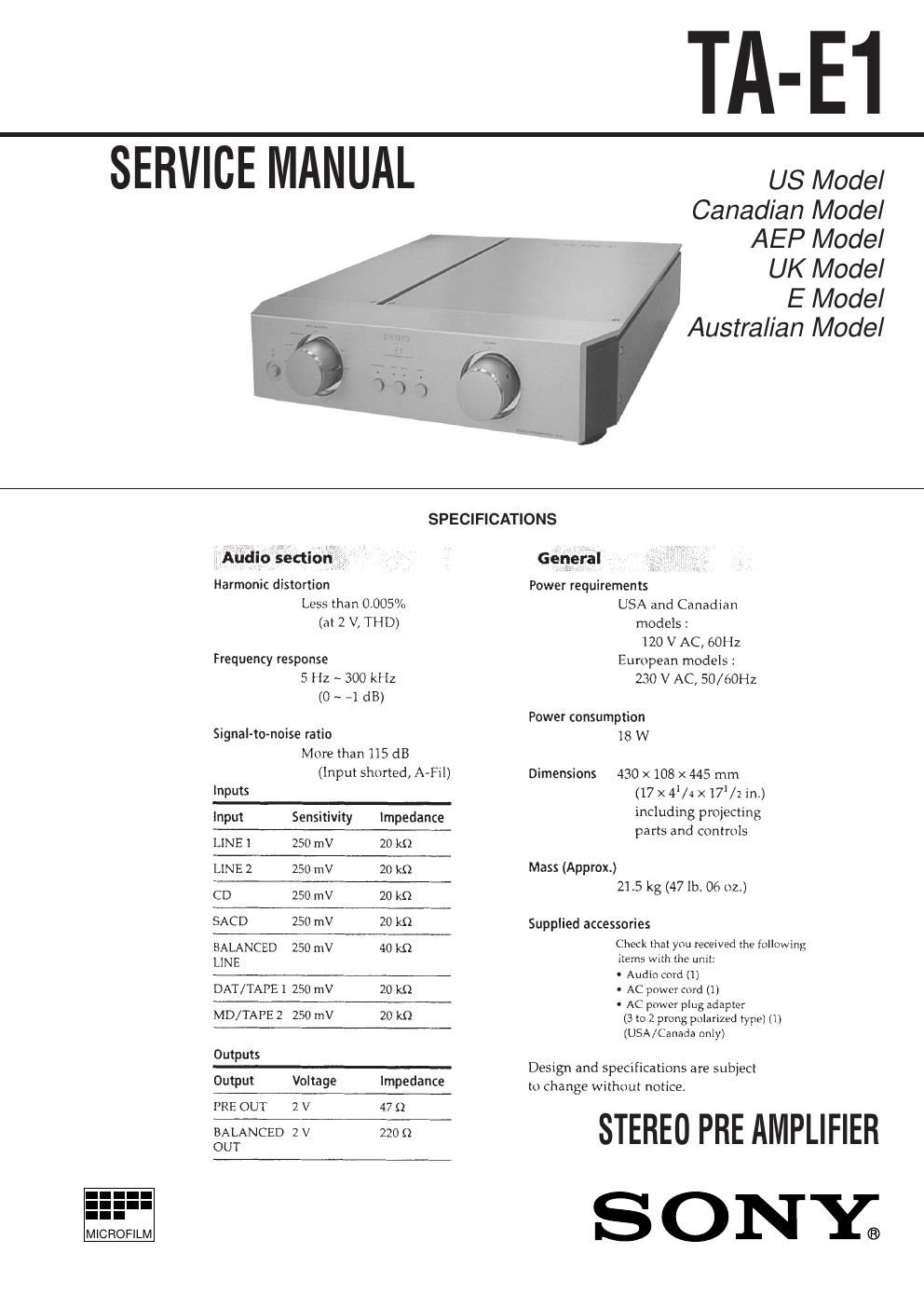

Sony ta e 1 pre service manual
This is the 18 pages manual for sony ta e 1 pre service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ta e 1 pre service manual (Ocr-read)
Page 1
2 TABLE OF CONTENTS 1. GENERAL ........................................................................... 3 2. ELECTRICAL ADJUSTMENT .................................... 5 3. DIAGRAMS 3-1. Circuit Boards Location ........................................................ 5 3-2. Schematic Diagram Ð Main Section (1/3) Ð .......................... 6 3-3. Schematic Diagram Ð Main Section (2/3) Ð .......................... 7 3-4. Schematic Diagram Ð Main Section (3/3) Ð .......................... 8 3-5. Printed Wiring Board Ð Main Section Ð ................................ 9 3-6. Schematic Diagram Ð Power Section Ð ............................... 10 3-7. Printed Wiring Board Ð Power Section Ð ............................ 11 4. EXPLODED VIEWS 4-1. Top Plate and Back Panel Section ....................................... 12 4-2. Front Panel Section ............................................................. 12 4-3. Bottom Plate Section .......................................................... 13 5. ELECTRICAL PARTS LIST................................... 14 SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leak- age current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a pas- sive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 0.15 µF To Exposed Metal Parts on Set 1.5k W AC voltmeter (0.75V) Earth Ground SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ!! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY. MODEL IDENTIFICATION Ñ BACK PANEL Ñ PARTS No. MODEL 4-214-526-1¹US , CND 4-214-526-2¹AEP, UK, E, AUS Parts No. ¥ Abbreviation CND : Canadian model AUS : Australian model
Page 2
3 SECTION 1 GENERAL This section is extracted from instruction manual.
