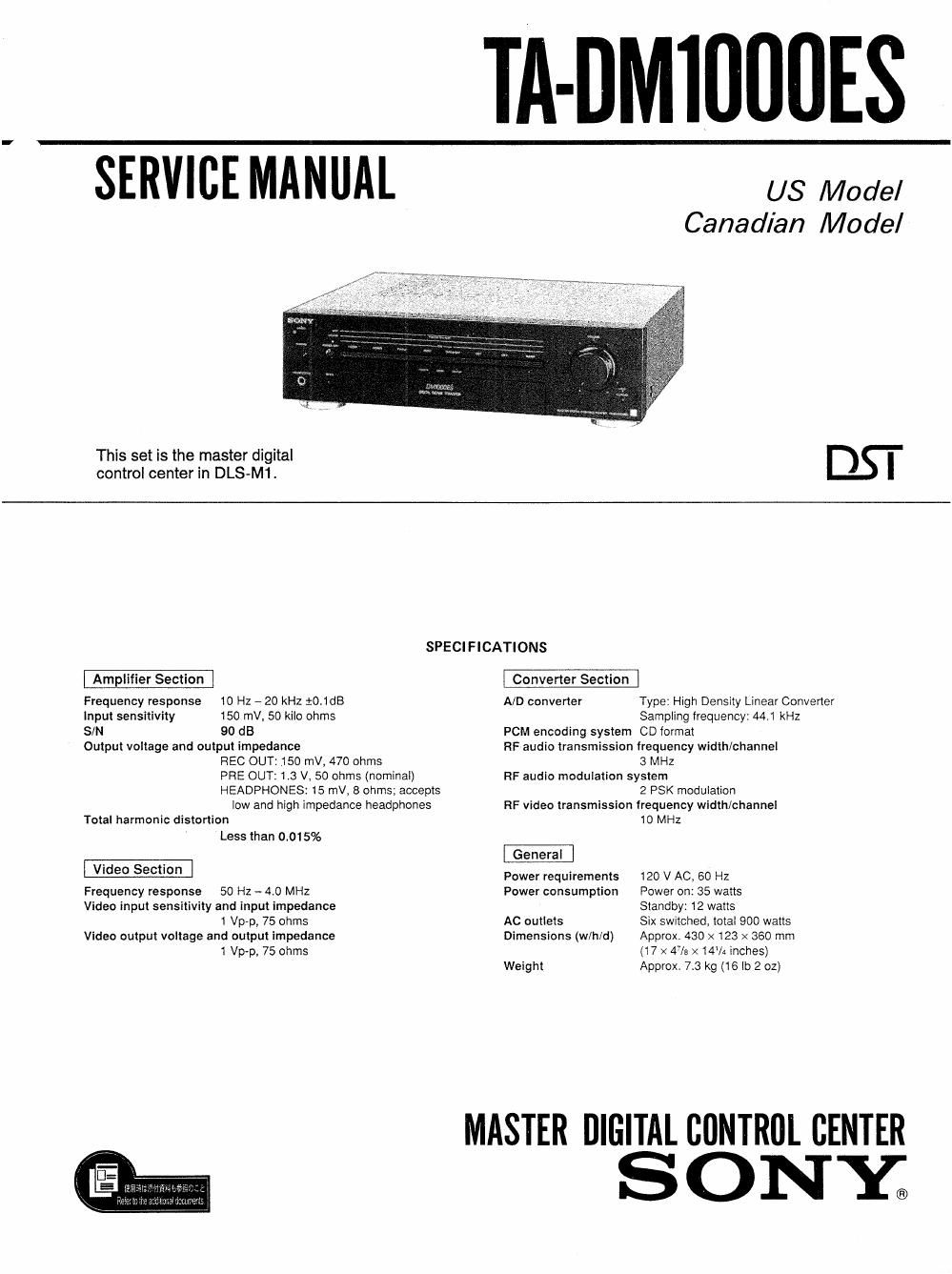

Page 1

TA-DMiflUflES

SERVICE MANUAL

US Model
Canadian Model

This set is the master digital
control center in DLS-Mi.

SPECIFICATIONS

Converter Section

A/D converter

Amplifier Section

Frequency response 10 Hz - 20 kHz 10.1dB
lnput sensitivity 150 mV 50 kilo ohms
SIN 90 dB
Output voltage and output impedance
REC OUT: 150 mV, 470 ohms
PFlE OUT: 13 V, 50 ohms (nominal)

Type: High Density Linear Converter
Sampling frequency: 44.1 kHz
PCM encoding system CD format
RF audio transmission frequency width/channel
3 MHz
RF audio modulation system

HEADPHONES: 15 mVV 8 ohms; accepts
low and high impedance headphones
Total harmonic distortion
Less than 0.015%

Video Section

Frequency response 50 Hz « 4.0 MHz

Video input sensitivity and input impedance
1 Vp-p, 75 ohms

Video output voltage and output impedance
1 Vp»p, 75 ohms

2 PSK modulation
RF video transmission frequency width/channel
10 MHz

Power requirements
Power consumption

120 V AC, 60 Hz

Power on: 35 watts

Standby: 12 watts

Six switched, total 900 watts
Approx. 430 x 123 x 360 mm
(17 x 473 x 14/» inches)
Approx. 73 kg (16 lb 2 oz)

AC outlets
Dimensions (w/h/d)

Weight

MASTER DIGITAL anTRuL CENTER
SONY;
