sony ta ax 6 service manual

Extracted text from sony ta ax 6 service manual (Ocr-read)

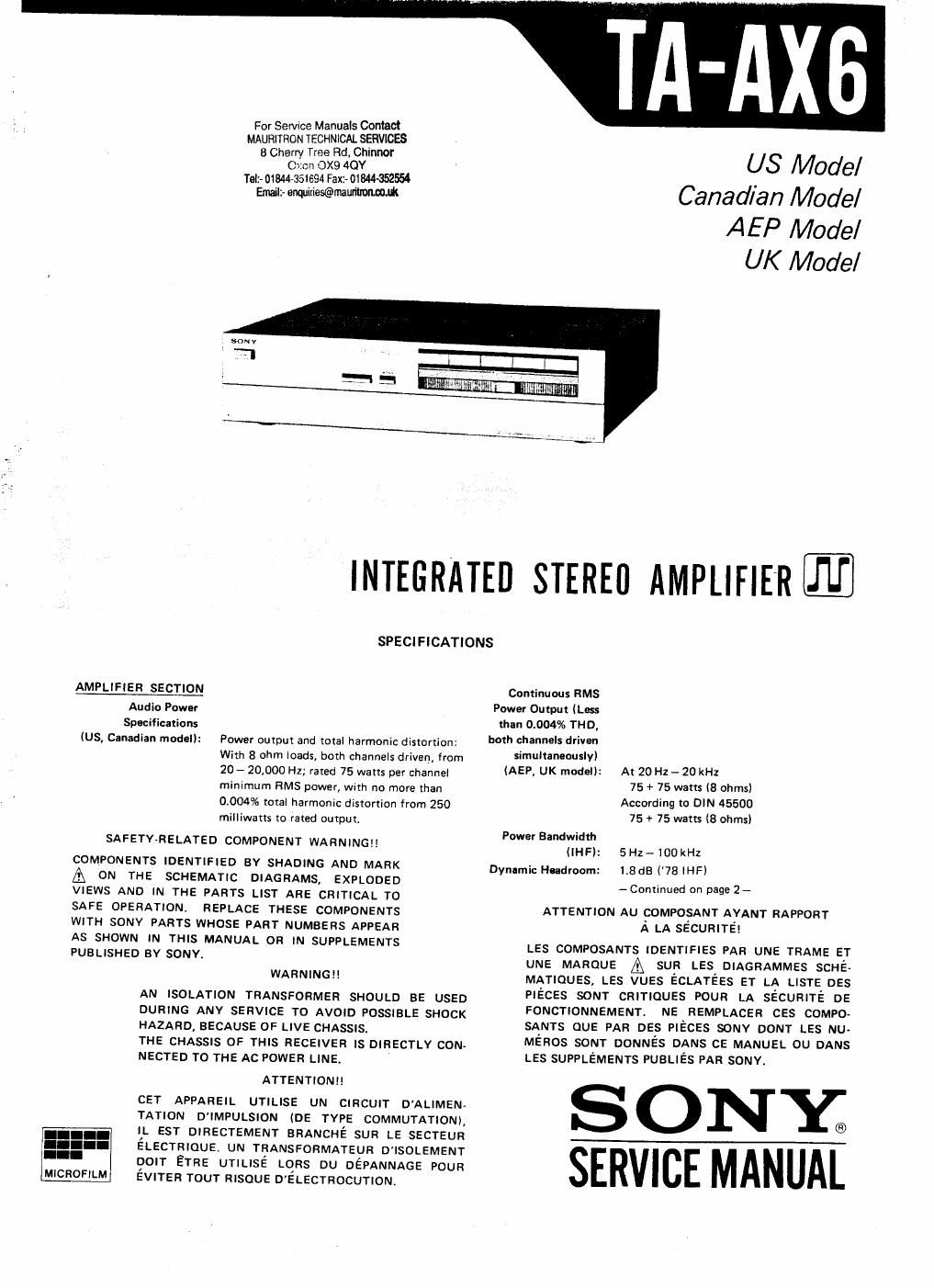

Page 1

For Service Manuals Contact
MAURITRON TECHNICAL SERVICES
8 Cherry Tree Rd, Chinnor
Oxcn OX9 40Y

Teiz- 01844351694 Fax:- 01844-352554
Email:- mineflmauflmmm

US Model
Canadian Model
AEP Model

UK Model

INTEGRATED STEREO AMPLIFIER

SPECIFICATIONS

Continuous RMS
Power Ouput (Less
than 0.004% THO,
both channels driven
simultaneously)

AMPLIFIER SECTION

Audio Power
Spocificaxions
(US, Canadian model): Power ompm and mtal harmonic distortion:
With 8 Ohm Ioadsl both channels driven, from
20- 20,000 Hz; rated 75 watts per channei
minimum RMS power, with no more than
0.004% total harmonic distortion from 250
milliwatts to rated outpm.
SAFETV-RELATED COMPONENT WARNING Power BandWIdth
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR

(AEP, UK modal):

(IHF):
Dynamic Headroom:

At 20 H1 , 20 kHz
75 + 75 watts (8 ohms)
According to DIN 45500
75 + 75 watts (B ohmsI

5 Hz - 100 kHz
1.8 dB (78 IHFI
- Continued on page 2-

ATTENTION AU COMPOSANT AYANT RAPPORT

A LA SECURITE!

AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BV SONY.

WARNINGII

AN ISOLATION TRANSFORMER SHOULD BE USED
DURING ANY SERVICE TO AVOID POSSIBLE SHOCK

HAZARD, BECAUSE OF LIVE CHASSIS.

THE CHASSIS OF THIS RECEIVER IS DIRECTLY CON-

NECTED TO THE AC POWER LINE
ATTENTIONI!

LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MAROUE A sun LES DIAGRAMMES scué
MATIQUES LES vuzs écLATéEs ET LA LISTE DES
PIECES sour cnmauss POUR LA sécuRiTé DE
FONCTIONNEMENT. NE REMPLACER ces compo-
SANTS QUE PAR DES PIECES sonv DONT LES NU-
MEROS som oomués DANS CE MANUEL ou DANS
LES SUPPLEMENTS PUBLIés PAR somv.

CET APPAREIL UTILISE UN CIRCUIT DALIMEN-
TATION D'IMPULSION (DE TYPE COMMUTATION)
IL EST DIRECTEMENT BRANCHE SUR LE SECTEUR

. SONY®

ELECTHIQUE UN TRANSFORMATEUR D' ISOLEMENT
DOIT ETRE UTILISE LOFIS DU DEPANNAGE POUR
EVITER TOUT RISQUE D' ELECTROCUTION.

MICROFILM

SERVICE MANUAL
