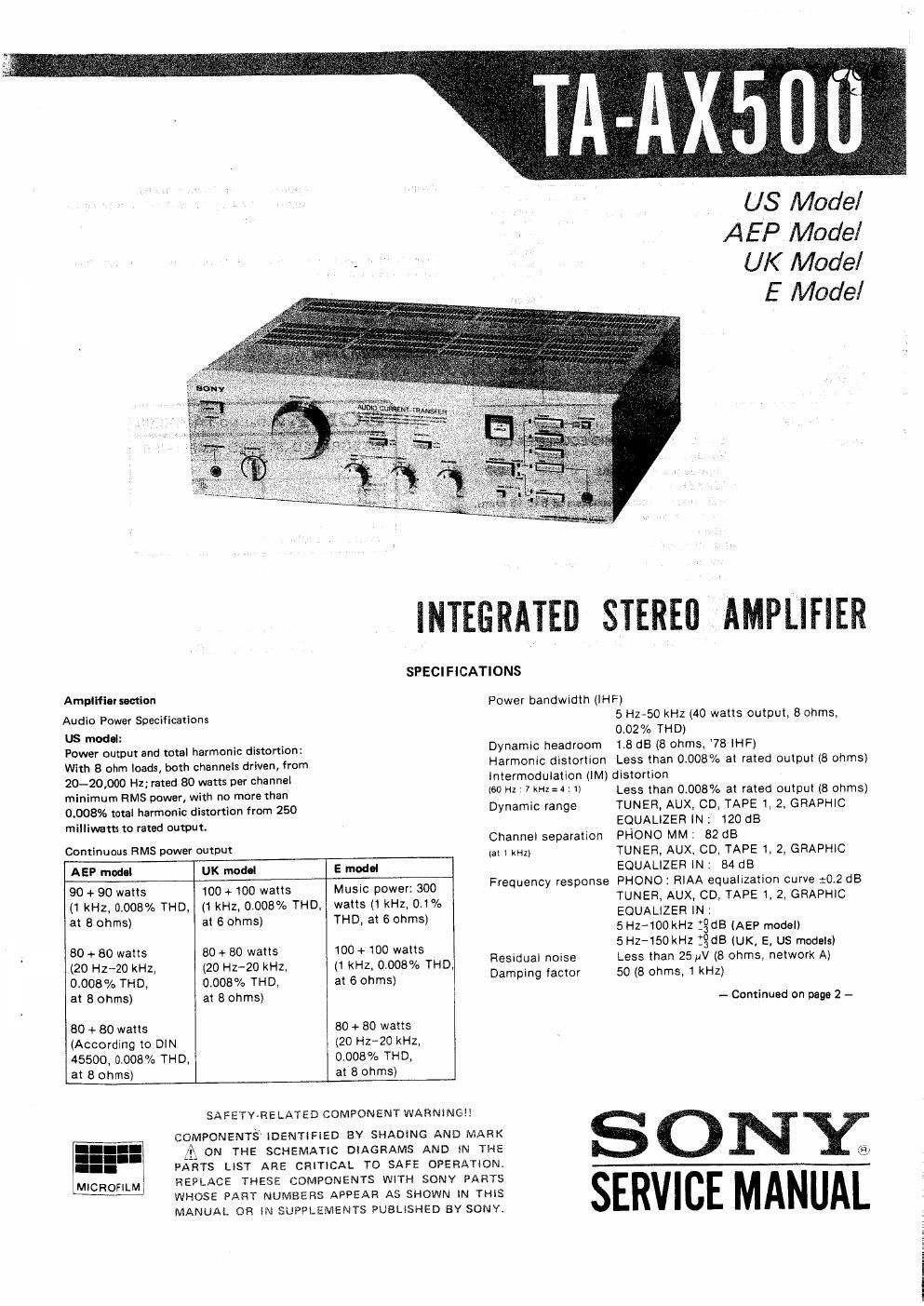

Page 1

Amplifier suction

Audio Power Specifications

US model:

Power output and total harmonic distortion:
With 8 ohm loads, both channels driven, from
20-20,000 Hz; rated 80 watts per channel
minimum HMS power, with no more than
0.008% total harmonic distortion from 250
milliwatts to rated output.

Continuous FIMS power output

US Mode:I
AEP Model
UK Model
E Model

INTEGRATED STEREII AMPLIFIER

SPECIFICATIONS

AEP model UK model

E modal

90 + 90 watts 100 +100 watts
(1 kHz, 0.008% THD, (1 kHz, 0.008% THD.
at 8 ohms) at 6 ohms)

80 + 80 watts 80 + 80 watts

(20 Hz-ZO kHz, (20 Hz-20 kHz,
0.008% THD, 0.008% THD,
at 8 ohms) at 8 ohms)

80 + 80 watts

(According to DIN
45500, 0.008% THD,
at 8 ohms)

Music power: 300
watts (1 kHz, 0.1%
THD, at 6 ohms)

1oo+1oo watts
(1 kHz, omen/o THD,
at 5 ohms)

80 + 80 watts
(20 HZ-ZQ kHz,
00089:. THD,

at 8 ohms)

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED av SHADING AND MARK

[A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL T0 SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY mars
WHOSE PART NUMBERS APPEAR As SHOWN IN THIS
MANUAL on IN SUPPLEMENTS SUBLISHED av souv.

MICROFILM!

Power bandwrdth (IHF)

Dynamic headroom
Harmonic distortion

5 H2450 kHz (40 watts output. 8 ohms,
0.02% THD)

1.8 [15(8 ohms, 78 IHF)

Less than 00087/1 at rated output (8 ohms)

lntermodulation (IM) distortion

(60 Hz ' 7 kHz=AiI1
Dynamic range

Channel separation
(at l kHz)

Frequency response

Resndual noise
Damping factor

Less than 0,008?» at rated output (3 ohms)
TUNER, AUX, CD, TAPE 1, 2, GRAPHIC
EQUALIZER IN: 120 dB

PRONO MM: 82 dB

TUNER, AUX, CD, TAPE 1, 2, GRAPHIC
EQUALIZER IN: 84 dB

PHONO: RIAA equaltzation curve :02 dB
TUNER, AUX, CD, TAPE 1, 2, GRAPHIC
EQUALIZER IN:

5 H2-100 kHz :gua (AEP model)

5 Hz-150 kHz :gua (UK, E, us models)
Less than 25W (8 ohms, network A)

50 (8 ohms, 1 kHz)

- Continued on page 2 -

SERVICE MANUAL

Page 2

TA AXSOO

Inputs
seumg Maximum SIN
ol the , Input lweightmg
CARTRIDGE Sensmvlty pecan Canabllity network.
switch ll kHz) input Iavali
as as
MM 25 mV soxonm 150 my as or
(A, 2.5 mV)
pHoNQ .......................
as as
Mr: no v 100 ohm saw 75 air
(A. in: w)
TUNER.
Aux. op 99 as
nearz _ 150mV wkonm - iooaa
GRAPHIC (A. 150 MW
EOUALIZER m
" I78 IHF
Outputs REC OUT 1. 2, GRAPHIC EQUALIZEH OUT

Tone controls

SUDSOniC filter

General
System

Power requirements

Power consumption

AC outlets

Dimensions

Voltage 150 mV
Impedance 4.7 k ohms
SPEAKER A, B
AEP model: Accepts speakers of a to 16 ohms.
US, UK, E model: Accepts speakers of 6 to
16 ohms.
HEADPHONES
Accepts low and high impedance headv
phones.
BASS
:10 dB at 60 Hz (turnover freq. 300 Hz)
TREBLE
:8 dB at 25 kHz (turnover freq. 5 kHz)
6 dB/octave attenuation below 15 Hz

Integrated stereo amplifier

Power amplifier section
Legato linear. pure-complementary.
SEPP OCL dc power amplifier with all
stages direct coupled

Preamplifier section
Equalizer section:
equalizer amp
Audio Current Transfer section: Bridge-
balance type voltage-to-current converter

FET butler power supply

Low-noise high-gain

US model:
120 V ac, 60 Hz
AEP model:
220 V ac (or 240 V at: adiustable by
authorized Sony personnel), 50/60 Hz
UK model:
240 V ac (or 220 V an adjustable by
authorixad Sony personnel), 50/60 Hz
E model:
120, 220 or 240 V ac adjustable,

50/60 Hz
U5 model: 162 watts
AEP, E model: 200 watts
UK model: 170 watts
AEP model: 1 switched, 100 watts max.
US. E model: 2 switched, total 100 watts max.

1 unswitched, 100 watts max.
Approx. 430 x 130 x 365 mm lth/dl
(17 x 51/. x 143/3 inches)
including projecting parts and controls

11 kg (24 lbs 5 oz) net
12.4 kg (27 lbs 6 oz) in shipping car-
ton

Weight Approx.

Approx.

Specification values are measured at 30 dB attenuator, except those of
residual noise and inputs.

MODEL IDENTIFICATION
- Specification Label -

SONY. MODEL N0.TA-AX500
INTEGRATED STEREO AMPLIFIER

l::

IE!

SERIAL NO.
MADE IN JAPAN

US model: AC 120 V 60 Hz 162 W
AEP model: AC 220 V 50/60 HZ 200 W

UK model: AC 240 v 50/60 Hz 170w
E model: AC 120, 220 or 240 v 50/60 Hz 200 w
FEATURES

Audio current drive amplilier

An unusual current transfer circuit design keeps the preamplifier
and power amplifier stages electrically separate, thus equalling the
quality of separate amplifiers.

Legato linear power amplifier stage

The operation of the power amplifier stage is stable without any
observable distortion up through the higher frequencres, We call
this power amplilier legato linear", because its switching distor
tion is very low and its output waveform smooth.

Wide dynamic range of 120 dB

The use of Audio Current Transfer technique and legato linear
power amplifier stage has made the amplifier's dynamic range as
wide as 120 dB in actual use. This assures high-quality reproduction
of digital audio sources.

CD DIRECT switch for pure CD sound reproduction

When you press the CD DIRECT switch, all circuits whichare not
necessary for CD playback are bypassed and you can enjoy pure
digital sound.

Accepts either of the two types at cartridge
The high-gain equalizer amplifier stage using low-noise transistors
accepts both movtng-coil and moving~magnet cartridges.
